HELLA

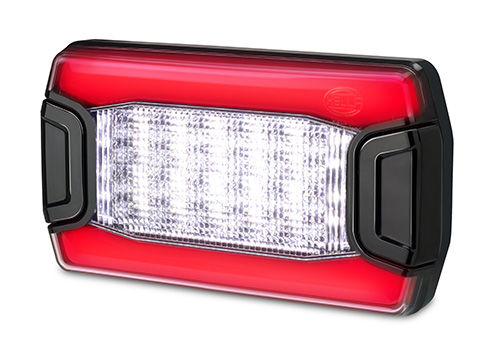

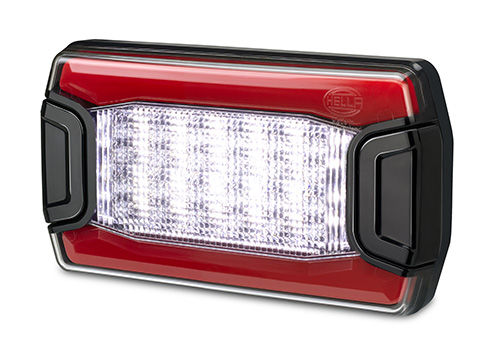

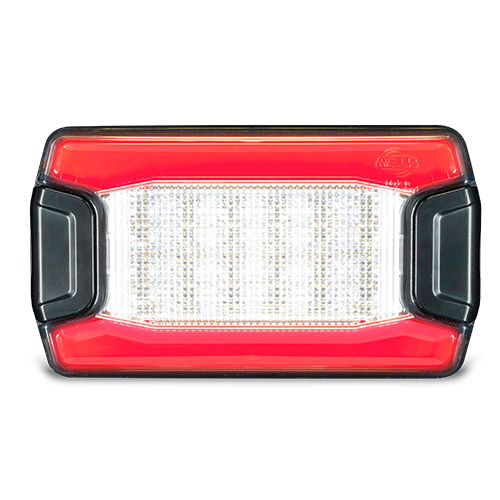

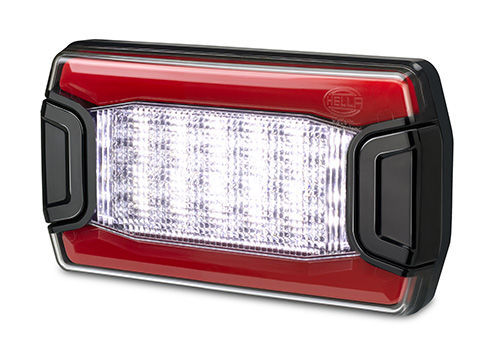

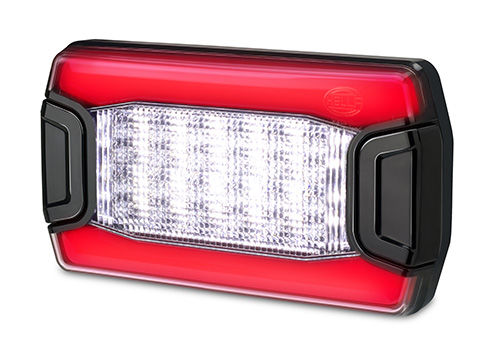

DuraLED® PRIME Reversing Lamp

The DuraLED® rear signal lamp family features a new design identity with a modern clear lens, delivering a consistent and refined look across all variants. A distinctive glowing body tail function is integrated into all main light functions, creating a signature appearance at night.

The DuraLED® PRIME Reversing lamp is available with either a 2.5 metre cable or built-in DT connector for easy plug-and-play installation. Fully interchangeable with the original DuraLED® and DuraLED®‑S series, it allows for seamless upgrades.*

Built with a sealed, maintenance-free “Fit & Forget by Design” construction, the lamp ensures high durability and long service life, with an emphasis on safety and reliability.

*All signal lamps must be installed in accordance with local regulations.

‘Fit & Forget’ by Design
A no-compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Type "D" Approved Mounting Combinations
Each DuraLED® PRIME lamp includes its own glowing body tail light function. “D” Type approval allows for the combination of a single or two adjacent lamps to be regarded as one for tail lamp regulations, when mounted within the specifications. For permitted configurations, see Page 3 of Product Release in Downloads tab below.

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED® PRIME Reversing Lamp - Yellow Box

PART NO: 2ZR 350 300-071

DuraLED® PRIME Reversing Lamp with DT Connector - Yellow Box

PART NO: 2ZR 350 300-081

Specifications

Mounting

Horizontal and vertical mounting.
Surface mounting with mounting bushes supplied.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

Reversing Lamp: 4.4W
Tail: 4.6W

Protection

Polarity reversal protection, transcient spike circuit protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

2.5m of sheathed multi-core cable or Built-in DEUTSCH DT connector

Compliance

E24 5945  ECE R148/01 E24 6479  ECE R10/06 CE

Outline

DuraLED PRIME Front, Side: Cable & DT connector models
DuraLED PRIME Front, Side: Cable & DT connector models
DuraLED PRIME Rear: DT model <br>All dimensions in mm
DuraLED PRIME Rear: DT model
All dimensions in mm
