HELLA

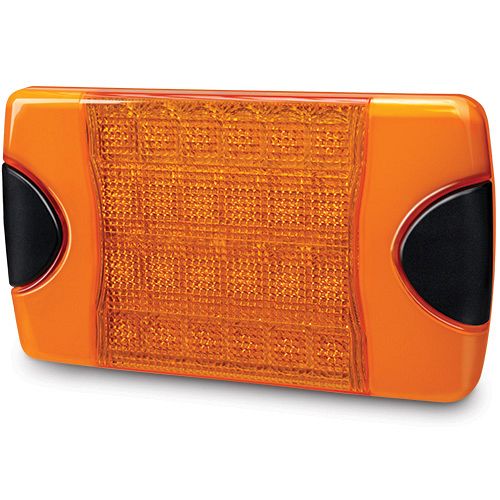

DuraLED®-S Rear Direction Indicator Lamp

HELLA is enhancing the 27-year legacy of the DuraLED® product line by updating the iconic range to meet the latest automotive design standards and international regulations.

The new slim DuraLED®-S Rear Direction Indicator Lamp offers a fully interchangeable, retrofit solution for existing models. It features the same completely sealed, maintenance-free “Fit & Forget by Design” construction, ensuring long-term durability, safety, and an ultra-long service life.

DuraLED®-S slim signal lamps are direct replacements for the existing DuraLED® rear lamp series. All Models share the same width, length, and mounting holes as previous DuraLED® range. All -S models are 5mm slimmer.

  • Interchangeable with existing DuraLED®
  • Fully sealed and submersible
  • 12/24V Multivolt™ HCS
  • Approved for use in New Zealand and Australia

‘Fit & Forget’ by Design
A no-compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED®-S Rear Direction Indicator Lamp - Single Carton

PART NO: 2BA 017 006-001

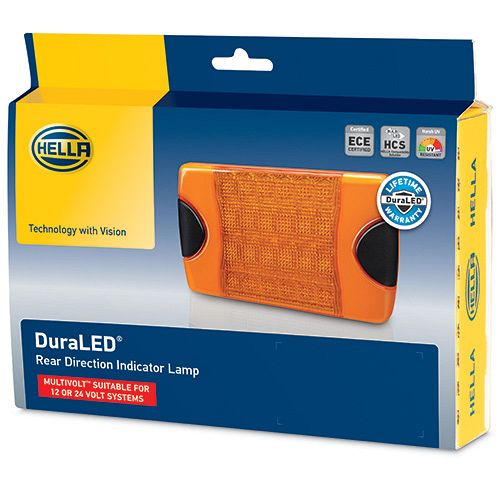

DuraLED®-S Rear Direction Indicator Lamp - Retail Pack

PART NO: 2BA 017 006-002

DuraLED®-S Rear Direction Indicator Lamp - Bulk Pack of 12

PART NO: 2BA 017 006-007

Specifications

Mounting

Surface mount with mounting bushes supplied.
Suitable for horizontal and vertical mounting

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

Rear Direction Indicator: 7W

Temperature

Operating range -40° to +60°C

Lens Material

Hi Impact PMMA

Protection

Reverse polarity and transient spike circuit protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

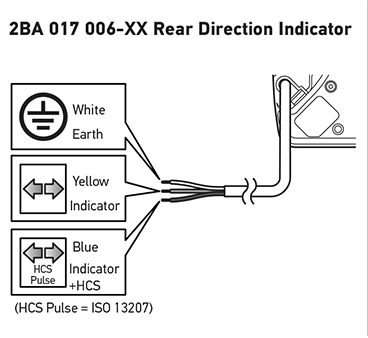

Cable Length

2.5m of sheathed multi-core cable.

Compliance

E24 0924 ECE-R148/01, E24 4530 ECE-R10/06, ISO 13207-1, ADR

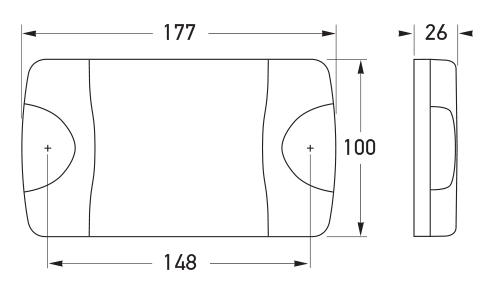

Outline

All dimensions in mm. All models share the same width, length, and mounting holes as previous DuraLED® range
All dimensions in mm. All models share the same width, length, and mounting holes as previous DuraLED® range
