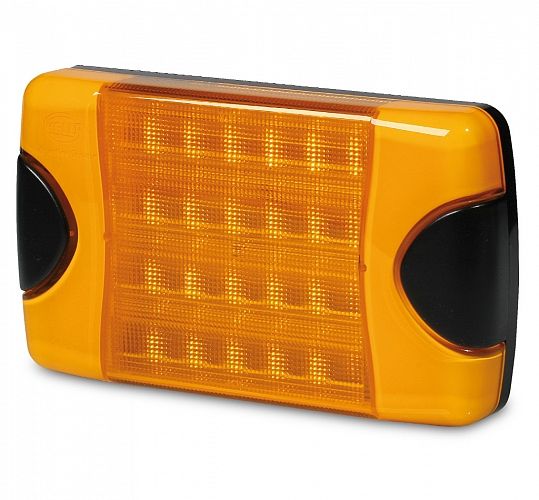

DuraLED® Rear Direction Indicator Lamp - Horizontal Mount

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.
‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle.
Whilst keeping its design heritage and appearance the DuraLED® range has been continuously upgraded to the latest material and electronic component technology.

Suitable for trucks, buses, caravans and trailers.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Hella Compatibility Solution HCS
Hella P/N 2151-HCS features HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard. Please click on HCS above for further information.

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED<sup>®</sup>  Rear Direction Indicator Lamp - Horizontal Mount

DuraLED® Rear Direction Indicator Lamp - Horizontal Mount

2151-H
DuraLED<sup>®</sup> Rear Direction Indicator Lamp - Horizontal Mount - Blister pack

DuraLED® Rear Direction Indicator Lamp - Horizontal Mount - Blister pack

2151-HBL
DuraLED<sup>®</sup> Rear Direction Indicator Lamp - Horizontal Mount - Bulk pack 4

DuraLED® Rear Direction Indicator Lamp - Horizontal Mount - Bulk pack 4

2151-HBULK
DuraLED<sup>®</sup> Rear Direction Indicator Lamp - Horizontal Mount with HCS Technology

DuraLED® Rear Direction Indicator Lamp - Horizontal Mount with HCS Technology

2151-HCS

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.
Suitable for horizontal mounting.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

2151-H 6W
2151-HBL 6W
2151-HBULK 6W
2151-HCS 4W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Compliance

ADR 6/00: Cat 2a E24 5850 ECE R6/01 ISO 13207-1 (2151-HCS only)

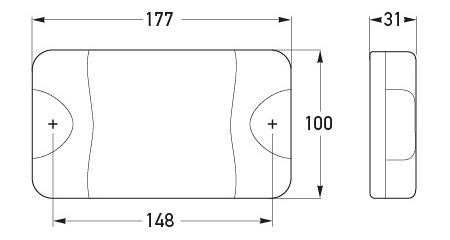

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2151-H 2151-V - Instruction Sheet.pdf 319.16 KB
  2151-HCS 2151-VCS - Instruction Sheet.pdf 369.06 KB
