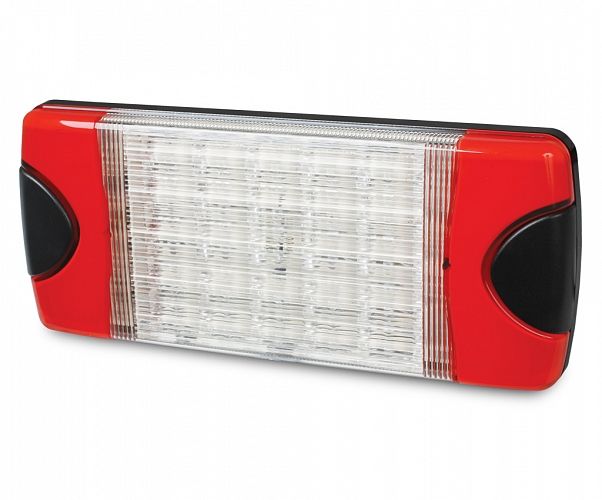

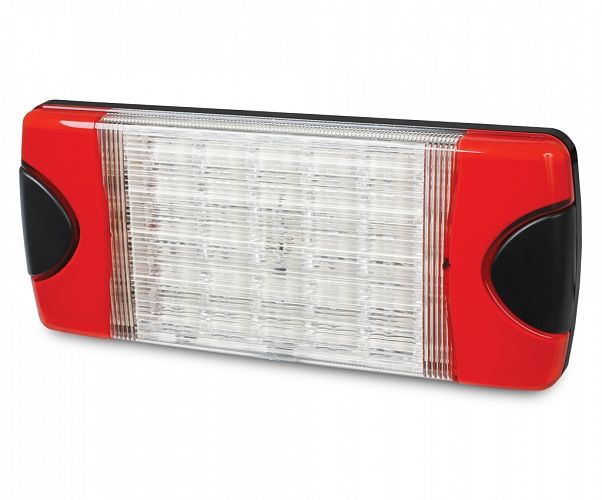

DuraLED® Combi-S Stop/Rear Position/Rear Direction Indicator Lamp with DT Connector and Night Light - Heavy Duty

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.
‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle.
Whilst keeping its design heritage and appearance the DuraLED® range has been continuously upgraded to the latest material and electronic component technology.

Suitable for commercial and boat trailers

Super slim profile – Iconic Design
The new evolution of the DuraLED® Combi features a depth of just 25mm.

Plug & Play
Easy installation

Night light function
Rear position lamp can be illuminated independently from remaining marker lamps for low power consumption.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Optic appears clear until illuminated

Grilamid® Lens
Please click on Grilamid® above for further information.

Hella Compatibility Solution HCS
Hella P/N 2378-DTCS features HCS Technology, patented indicator failure control technology which allows seamless communication with HELLA HCS control flasher units, or modern European trucks with body controllers compliant with the ISO 13207-1 standard. Please click on HCS above for further information.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

Enhanced Definition Technology

A stop signal that increases in brightness and illuminated area enhances the recognition of the lamp as a warning signal.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED<sup>®</sup> Combi-S - Heavy Duty - Night Light and DT Connector

DuraLED® Combi-S - Heavy Duty - Night Light and DT Connector

2378-DT
DuraLED<sup>®</sup> Combi-S - Heavy Duty - Night Light, DT Connector and HCS

DuraLED® Combi-S - Heavy Duty - Night Light, DT Connector and HCS

2378-DTCS

Specifications

Optics

Optic appears clear until illuminated

Mounting

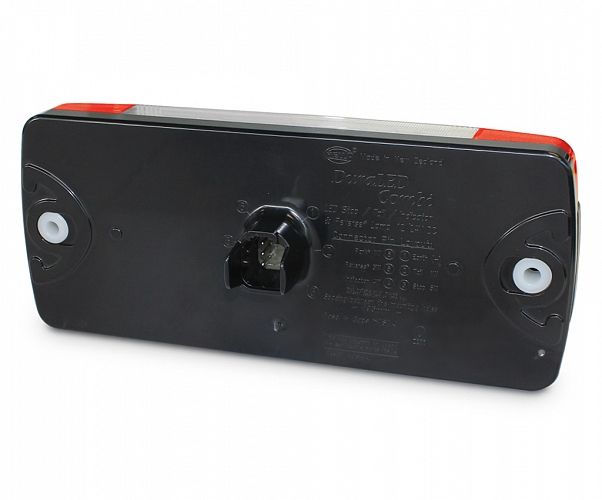

Two hole surface mount with mounting bushes supplied.
Suitable for horizontal or vertical mounting.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop: 5W
Rear position: 1W
Rear direction indicator: 5W
Night: 1W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor(TVS)
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Spare Part

4963-P 6 pole DT plug, wedge and 6 contacts.

Lens Material

Grilamid®

Compliance

ADR 6/00: Cat 2a ADR 49/00 ISO 13207-1 (2378-DTCS only) CE
E24 5883 ECE R6/01 ECE R7/02

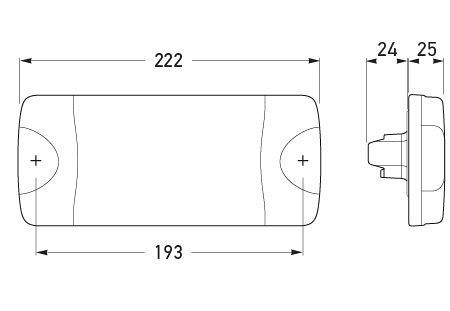

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2378-DT Instruction Sheet.pdf 482.01 KB
  2378-DTCS - Instruction Sheet.pdf 506.58 KB
