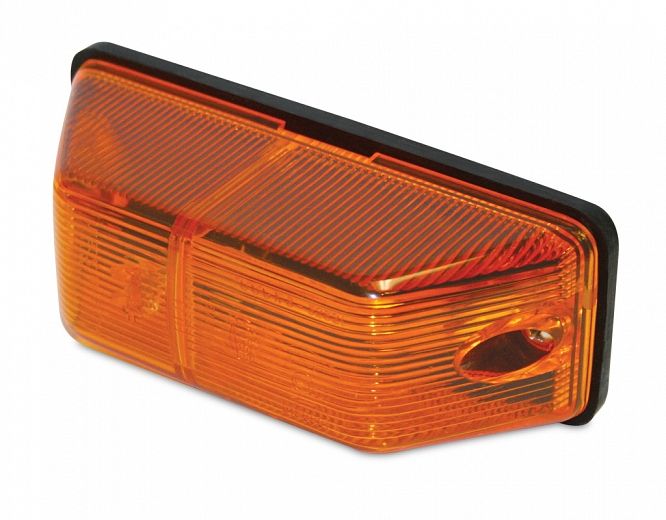

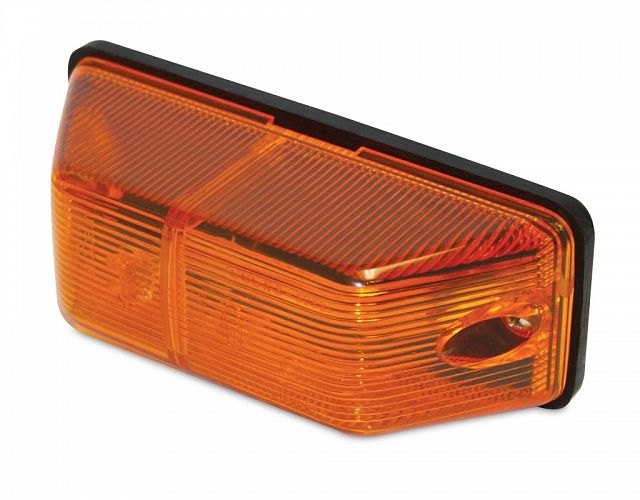

Supplementary Side Direction Indicator Lamp (Cat. 6)

Side mounted direction indicator lamp with rubber base. Suitable for insulated earth circuits.

For 24V applications, please install bulb P/N R2421

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

Supplementary Side Direction Indicator Lamp (Cat. 6) Left Side - 12V Bulb

Supplementary Side Direction Indicator Lamp (Cat. 6) Left Side - 12V Bulb

2153
Supplementary Side Direction Indicator Lamp (Cat. 6) Right Side - 12V Bulb

Supplementary Side Direction Indicator Lamp (Cat. 6) Right Side - 12V Bulb

2154

Specifications

Mounting

Surface Mount
Mounting holes 120mm between centers

Bulbs to Suit

12V R1221
24V R2421

Compliance

ADR 6/00: Cat 6

Note

Arrow on lens must face direction of travel.

ADR Categories of Direction Indicators

ADR compliant indicators are categorised according to their intended function.
Category.1 Direction indicators for the front of the vehicle.
Category.2 Direction indicators for the rear of the vehicle.
Category.5 Supplementary side direction indicators for use on a vehicle also equipped with categories 1 and 2 direction indicators.
Category.6 Supplementary side direction indicators for use on a heavy vehicle also equipped with categories 1 and 2 direction indicators.

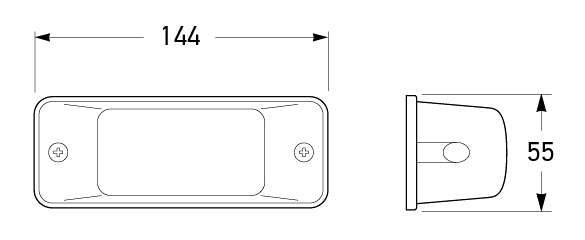

Outline

All dimensions in mm.
All dimensions in mm.

Top
