HELLA

Supplementary Side Direction Indicator Lamp (Cat. 6)

Side mounted direction lamp suitable for either left or right hand mounting.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Bulb Included

Options

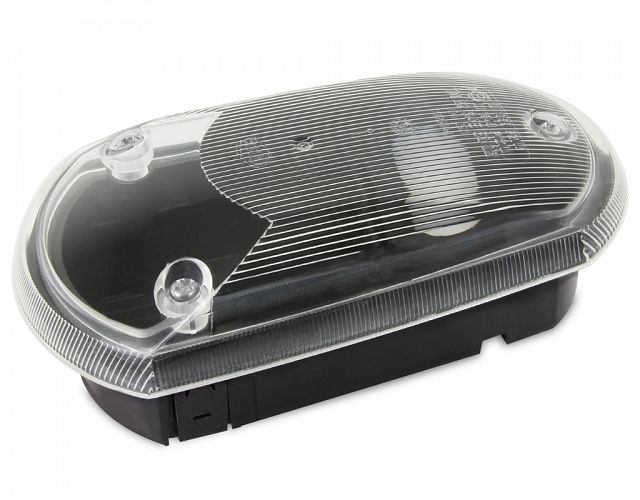

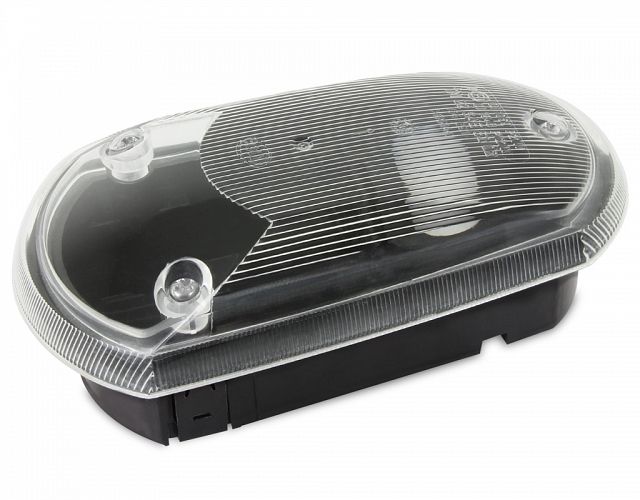

Supplementary Side Direction Indicator Lamp (Cat. 6) 12V Clear Lens

Supplementary Side Direction Indicator Lamp (Cat. 6) 12V Clear Lens

2155

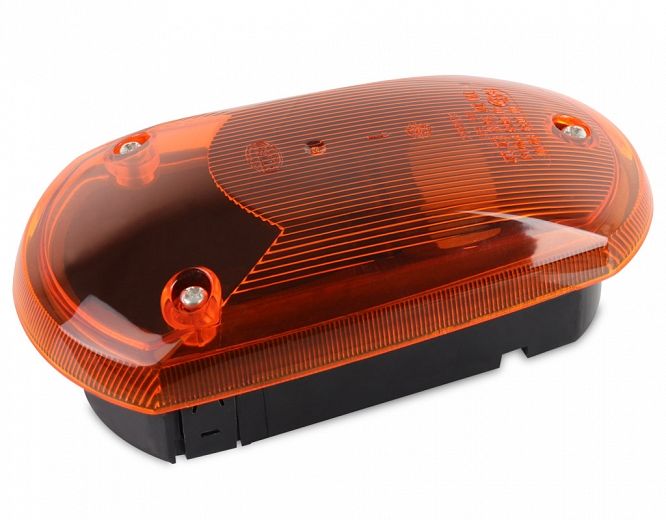

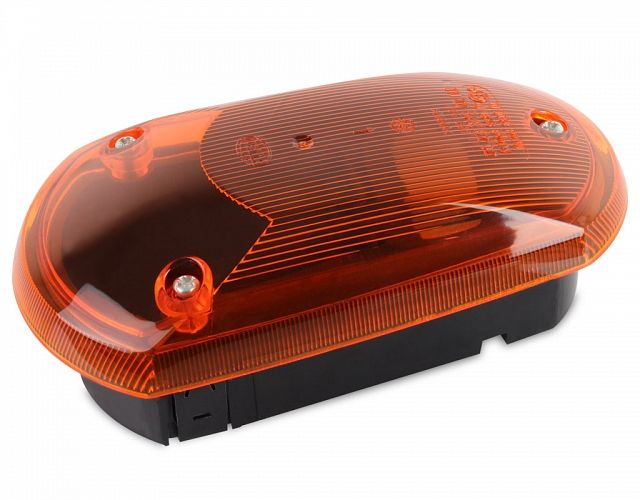

Supplementary Side Direction Indicator Lamp (Cat. 6) 24V Amber Lens

Supplementary Side Direction Indicator Lamp (Cat. 6) 24V Amber Lens

2155-24V

Specifications

Mounting

Recess Mount

Bulbs to Suit

12V RY1221
24V R2421

Spare Part

9.2155.05 Wiring harness set

Compliance

ADR 6/00: Cat 6

Note

Arrow on lens must face direction of travel.

ADR Categories of Direction Indicators

ADR compliant indicators are categorised according to their intended function.
Category.1 Direction indicators for the front of the vehicle.
Category.2 Direction indicators for the rear of the vehicle.
Category.5 Supplementary side direction indicators for use on a vehicle also equipped with categories 1 and 2 direction indicators.
Category.6 Supplementary side direction indicators for use on a heavy vehicle also equipped with categories 1 and 2 direction indicators.

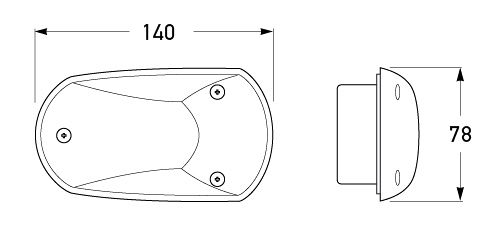

Outline

All dimensions in mm.
All dimensions in mm.

Top
