HELLA

Stop/Rear Position/Rear Direction Indicator/Reversing Lamp

Suitable for light trailer, agricultural and construction vehicles.

For 24V applications, please install 24V bulbs

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

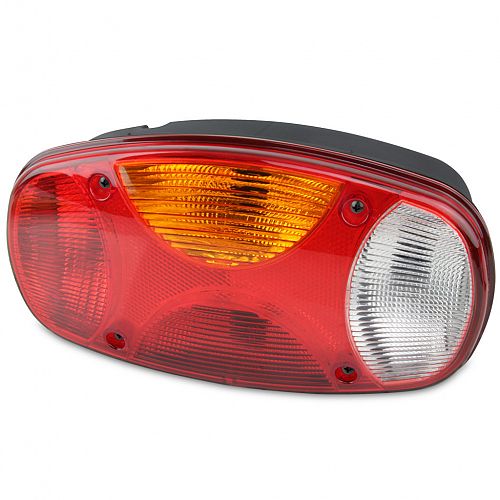

Stop/Rear Position/Rear Direction Indicator/Reversing Lamp - 12V Bulb - RH Side

Stop/Rear Position/Rear Direction Indicator/Reversing Lamp - 12V Bulb - RH Side

2VP 343 640-027

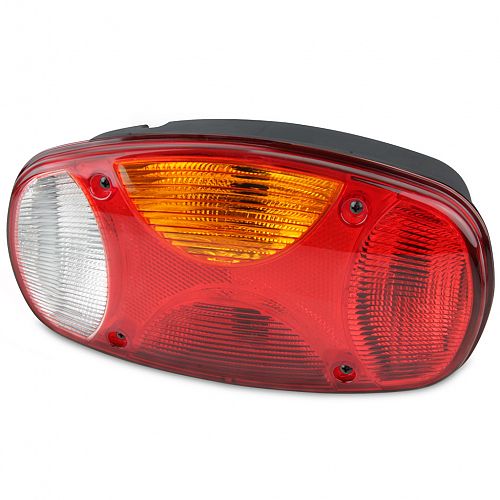

Stop/Rear Position/Rear Direction Indicator/Reversing Lamp - 12V Bulb - LH Side

Stop/Rear Position/Rear Direction Indicator/Reversing Lamp - 12V Bulb - LH Side

2VP 343 640-037

Specifications

Mounting

Surface mount.
Suitable for horizontal or vertical mounting.

Bulbs to Suit

  12V 24V
Stop: R1221 R2421
Rear position: G1210 G2410
Rear direction indicator: R1221 R2421
Reversing: R1221 R2421

Compliance

E17 0303 ECE R6/01 ECE R7/02 ECE R23/00

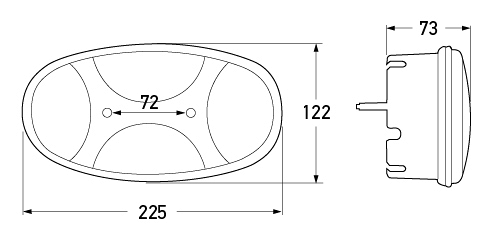

Outline

All dimensions in mm.
All dimensions in mm.
