HELLA

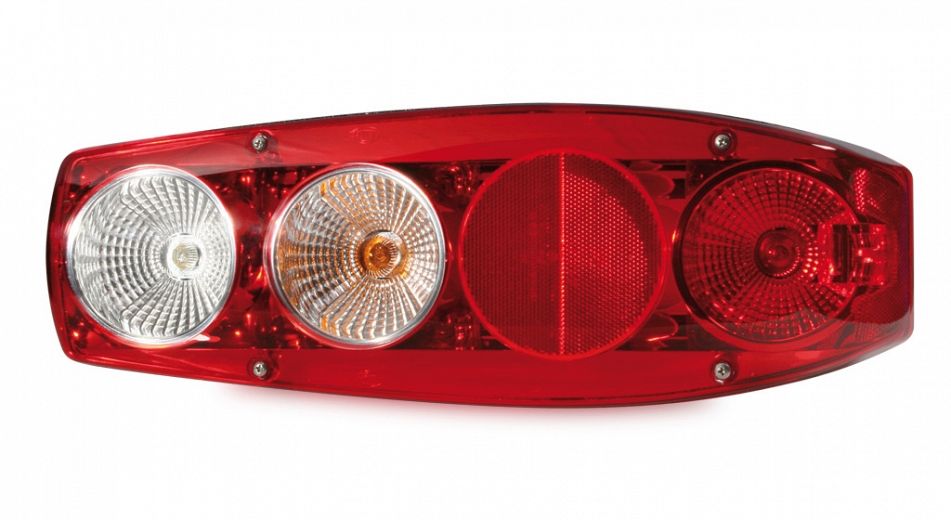

Stop/Rear Position/Rear Direction Indicator/Reversing Lamp with Reflector

For mobile homes. With reversing light and round reflector.

For 24V applications, please install 24V bulbs.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

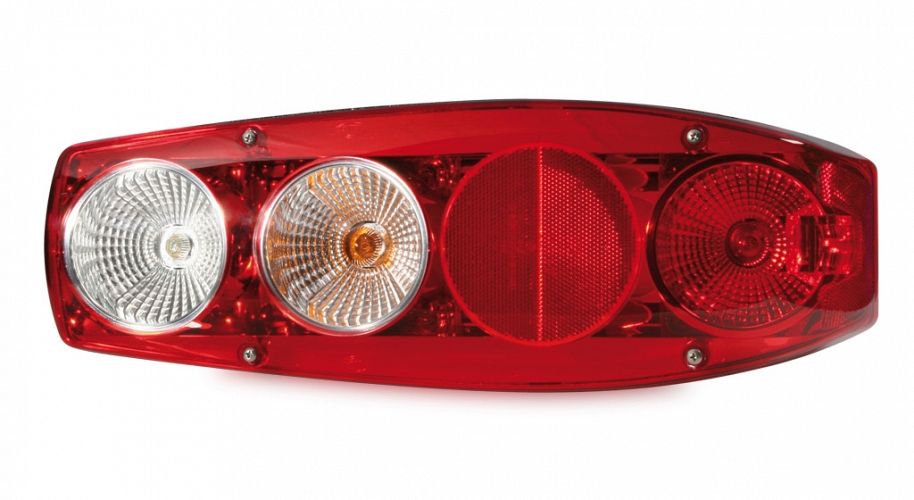

Stop/Rear Position/Rear Direction Indicator/Reversing Lamp - 12V Bulbs - RH Side

Stop/Rear Position/Rear Direction Indicator/Reversing Lamp - 12V Bulbs - RH Side

2VP 341 419-127

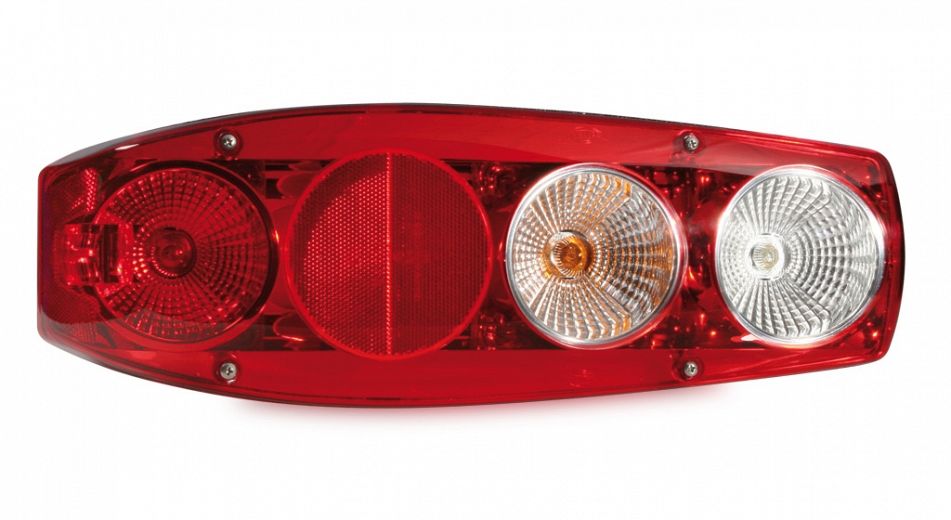

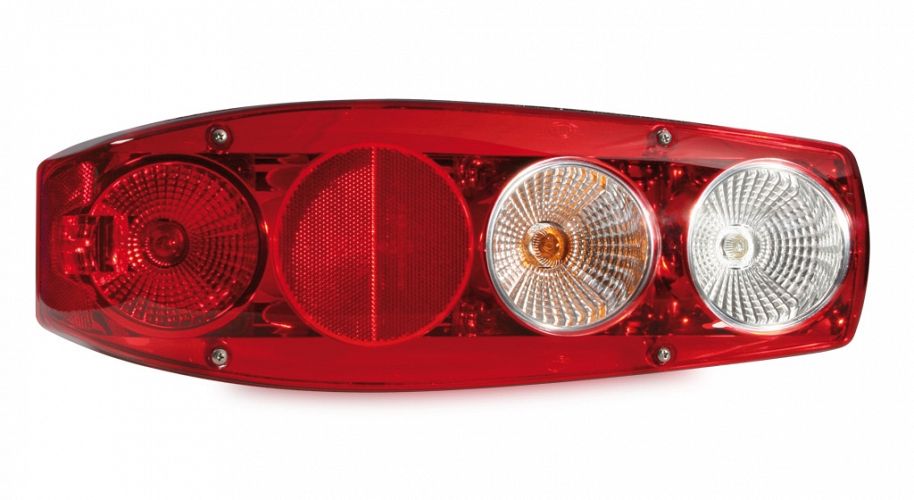

Stop/Rear Position/Rear Direction Indicator/Reversing Lamp - 12V Bulbs - LH Side

Stop/Rear Position/Rear Direction Indicator/Reversing Lamp - 12V Bulbs - LH Side

2VP 341 419-137

Specifications

Mounting

Horizontal flush mount into body.

Bulbs to Suit

  12V 24V
Stop/Rear position: S1221/5V S2421/5V
Rear direction indicator: R1221 R2421
Reversing: R1221 R2421

Compliance

E4 9836 ECE R6/01 ECE R7/02 ECE R23/00 ECE R3/02

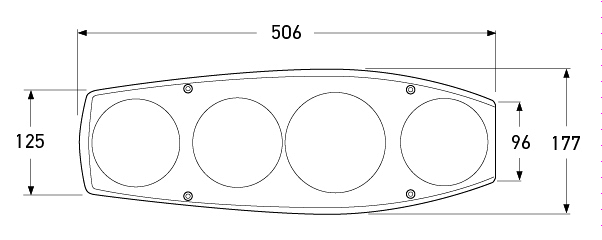

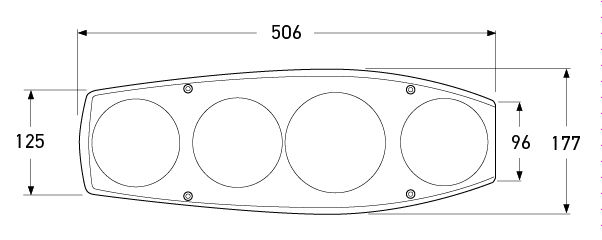

Outline

All dimensions in mm.
All dimensions in mm.
