HELLA

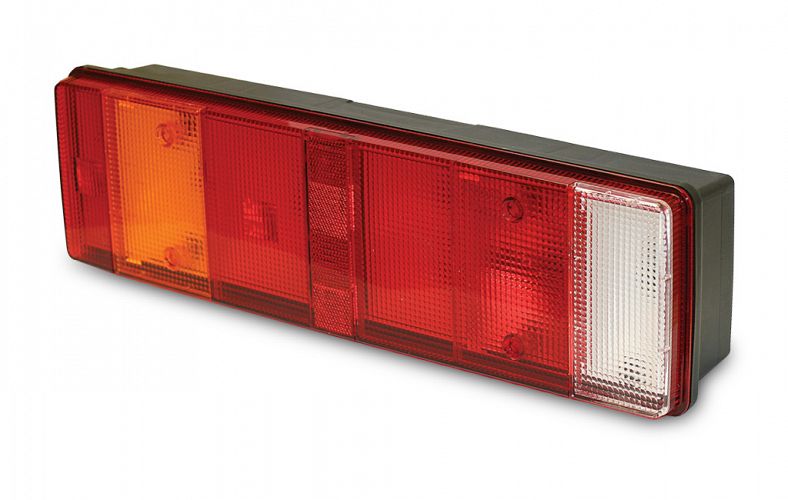

Rear Combination Lamp to suit MAN 93-00 / Scania 88-96

Combination rear lamp with stop, rear position, reversing, rear direction indicator, rear fog functions and reflex reflector.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Options

Rear Combination Lamp to suit MAN 93-00 / Scania 88-96 - 24V Bulbs

Rear Combination Lamp to suit MAN 93-00 / Scania 88-96 - 24V Bulbs

2VP 008 204-061

Specifications

Mounting

Two bolt mount (bolts supplied).

Bulbs to Suit

  12V 24V
Stop: R1221 R2421
Rear position: G125 x 3 G245 x 3
Rear direction indicator: R1221 R2421
Reversing: R1221 R2421

Spare Part

9EL 152 889-001 Lens and gasket

Compliance

E4 9808 E4 9810 E4 3178 E4 4060
ECE R6/01 ECE R7/02 ECE R 23/00 ECE R3/02 ECE R38/00

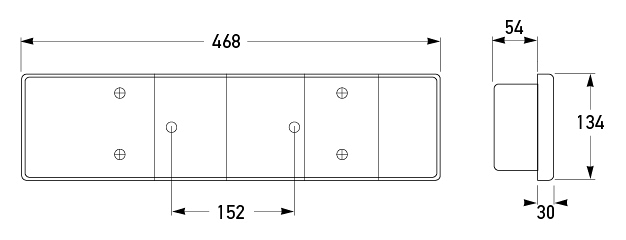

Outline

All dimensions in mm.
All dimensions in mm.

Top
