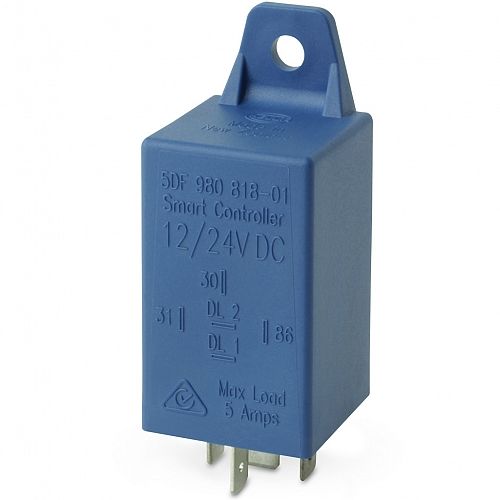

Safety DayLights™ Smart Controller

This smart controller is designed to simplify the installation of HELLA’s LED Safety DayLights™ range by eliminating the need to wire the lamp, or changeover relay to ignition terminal 15.

The Safety DayLights™ Smart Controller can be wired directly to the positive terminal of the battery, which saves the difficult and often time consuming task of finding the ignition feed.

The smart controller monitors the voltage supply from the battery and will automatically switch the Safety DayLights™ on when the engine is started, and automatically switch them off when the headlamps are activated, or the engine is turned off.

Advanced version P/N 3090 has vibration monitor for installation in vehicles with fuel saving alternators.

• One smart controller controls two lamps
• Quick and easy installation

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Made in New Zealand

Options

Safety DayLights™ Smart Controller with Vibration Monitor - Multivolt™

Safety DayLights™ Smart Controller with Vibration Monitor - Multivolt™

3090
Safety DayLights™ Smart Controller with Vibration Monitor - Multivolt™

Safety DayLights™ Smart Controller with Vibration Monitor - Multivolt™

3090-BULK
Safety DayLights™ Smart Controller - Multivolt™

Safety DayLights™ Smart Controller - Multivolt™

3091
Safety DayLights™ Smart Controller - Multivolt™

Safety DayLights™ Smart Controller - Multivolt™

3091-BULK

Specifications

Voltage

Multivolt, suitable for 12 and 24 volt systems.

Maximum
Continuous Load

20W

To Suit

HELLA LED Safety DayLights range.

Features

Safety DayLights OFF delay of approximately 10 seconds.

Wiring Specifications

Terminal Number Connect to
30 Battery (+)
31 Earth return (-)
86 Front position or headlamps (+)
DL1 & DL2 Safety DayLights (+)

Outline

All dimensions in mm. <br> P/N 3090 (Vibration Monitor - Multivolt<sup>TM</sup>) - P/N 3091 (Multivolt<sup>TM</sup>)
All dimensions in mm.
P/N 3090 (Vibration Monitor - MultivoltTM) - P/N 3091 (MultivoltTM)

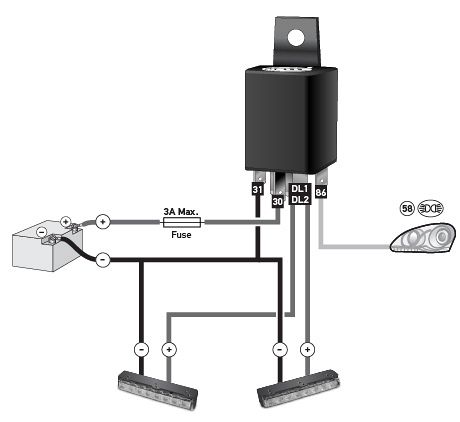

Recommended installation diagram for wiring.
Recommended installation diagram for wiring.

Documents

Document File Name File Size
  3090_3090-BULK Instruction Sheet.pdf 770.29 KB
  3091_3091-BULK Instruction Sheet.pdf 673.51 KB
