HELLA

Dual Function Safety DayLights™ Controller

Specially designed dual function controller to turn HELLA Safety DayLights into front position lamps at night.

The controller is connected and activated by the headlamp of the vehicle and reduces the current to the Safety DayLights thus turning them into road legal* front position lamps.

Only one controller is required for a pair of HELLA Safety DayLights.

* Please note: Legally required spacing of front position lamps and only one pair of front position lamps is legally permitted.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Made in New Zealand

Options

Dual Function Safety DayLights™ Controller - 12 Volt

Dual Function Safety DayLights™ Controller - 12 Volt

9.5630.03
Dual Function Safety DayLights™ Controller - 12 Volt

Dual Function Safety DayLights™ Controller - 12 Volt

9.5636.03
Dual Function Safety DayLights™ Controller - 24 Volt

Dual Function Safety DayLights™ Controller - 24 Volt

9.5630.04
Dual Function Safety DayLights™ Controller - 24 Volt

Dual Function Safety DayLights™ Controller - 24 Volt

9.5636.04

Specifications

To Suit

Controller Safety DayLights™
P/N 9.5630.03 P/Ns 1009, 5619, 5630, 5631
P/N 9.5636.03 P/N 5636
P/N 9.5630.04 P/Ns 1009-24V, 5619-24V, 5630-24V, 5631-24V
P/N 9.5636.04 P/N 5636-24V

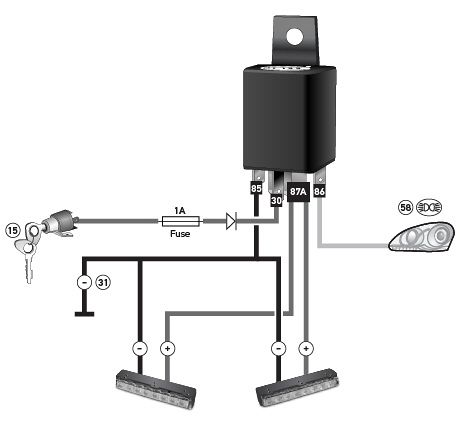

Wiring Specifications

Terminal Number Connect to
30 Ignition (+)
85 Earth return (-)
86 Front position or headlamps (+)
87A Safety DayLights (+)

Outline

All dimensions in mm.
All dimensions in mm.
