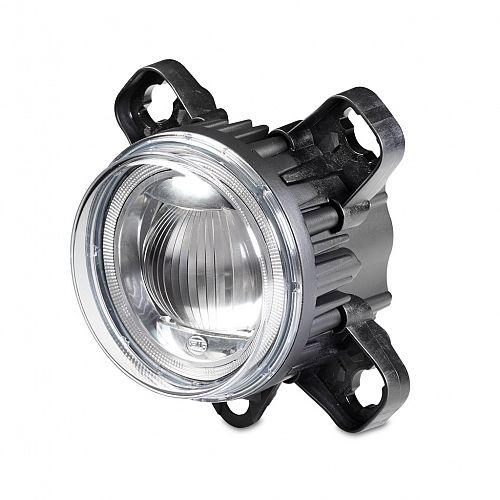

90mm LED high and Low Beam headlamp

LED 90mm high and low beam featuring a generous spread of light. Low power consumption and ultra long life equates to economical running costs compared to a bulb lamp. Exceptional white light output and extremely homogeneous illumination for reduced driver strain which means greater safety. Complete with 3 screw adjusters.

To find a HELLA reseller near you, click here.

P/N 1F0 011 988-121

P/N 1F0 011 988-121

P/N 1ML 012-488-011

P/N 1ML 012-488-011

P/N 1F0 011 988-121 High Beam distance in metres. Recorded with two lamps.

P/N 1F0 011 988-121 High Beam distance in metres. Recorded with two lamps.

P/N 1F0 011 988-121 All dimensions in mm.

P/N 1F0 011 988-121 All dimensions in mm.

P/N 1ML 012-488-011 All dimensions in mm.

P/N 1ML 012-488-011 All dimensions in mm.

Rollover/tap the icons below for further details:

LED Technology

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

90mm LED High Beam Headlamp

90mm LED High Beam Headlamp

PART NO: 1F0 011 988-121

Add to favourites

90mm LED Low Beam Headlamp

90mm LED Low Beam Headlamp

PART NO: 1ML 012 488-011

Add to favourites

Specifications

Mounting

3 point mount, screw adjusters included.

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

High beam:	20W
Low beam:	20W

Protection

IP 5K4K	(Protection against dust and high-pressure water splash)
IP 5K9K	(Protection against dust and high-pressure/steam jet cleaning)

Connection

4 pole FEP socket

Spare Parts

25416300	Adjusters (3, included)
9.1029.11	Mounting frame (not included)
4988-P	4 pole FEP plug kit
4988-DT	4 pole FEP to DT adaptor

Compliance

1F0 011 988-121:	E1 3831 Ref. 12.5	ECE R112/01
1ML 012 488-011:	E1 4090	ECE R112/01

Outline

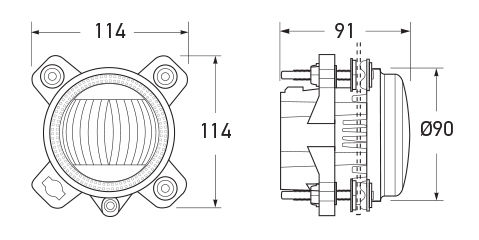

P/N 1F0 011 988-121 All dimensions in mm.

P/N 1F0 011 988-121 All dimensions in mm.

P/N 1ML 012-488-011 All dimensions in mm.

P/N 1ML 012-488-011 All dimensions in mm.

Light Output

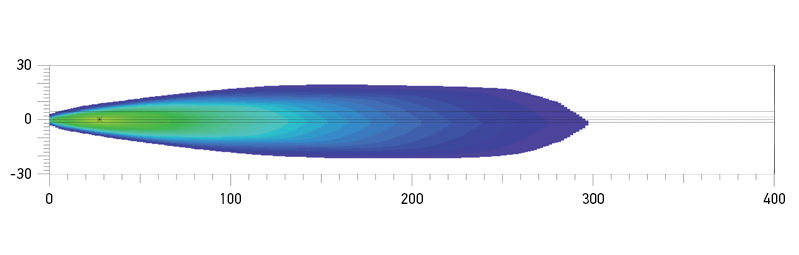

P/N 1F0 011 988-121 High Beam distance in metres. Recorded with two lamps.

P/N 1F0 011 988-121 High Beam distance in metres. Recorded with two lamps.
