HELLA

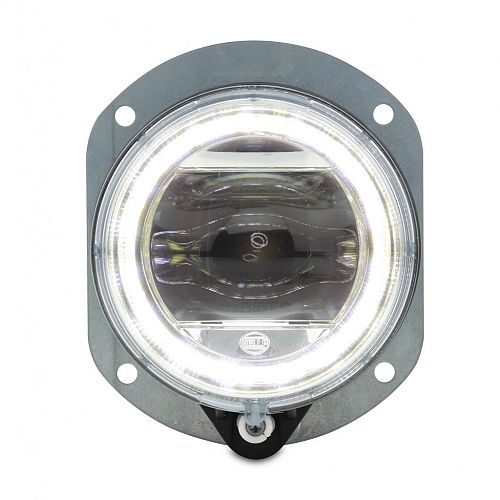

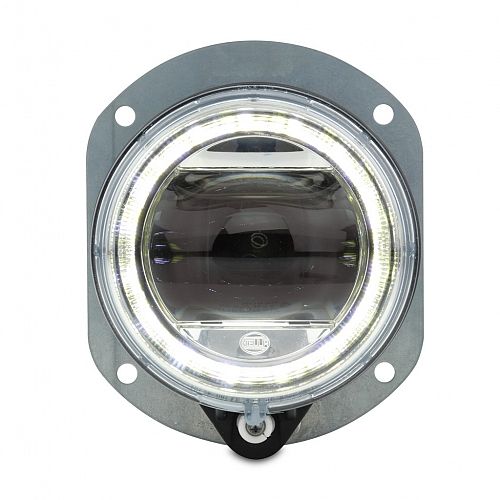

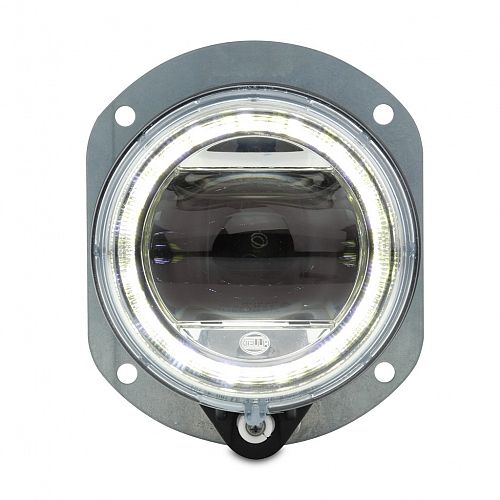

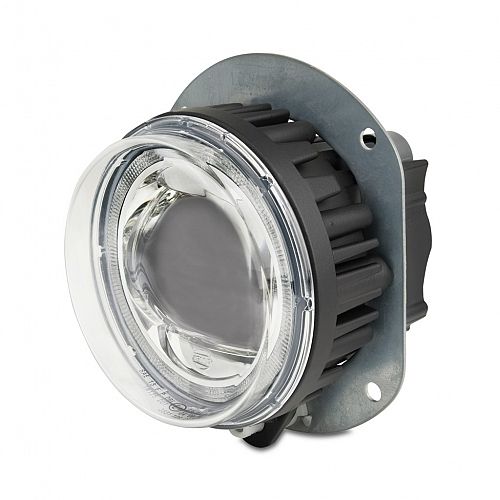

90mm LED Fog Lamp - Daytime Running Lamp/Front Position

LED Fog lamp featuring a generous spread of light. Low power consumption and ultra long life equates to economical running costs compared to a bulb lamp. Exceptional white light output and extremely homogeneous illumination for reduced driver strain which means greater safety.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Options

90mm LED Fog Lamp - Daytime Running Lamp/Front Position

90mm LED Fog Lamp - Daytime Running Lamp/Front Position

1N0 011 988-011

Specifications

Voltage

Multivolt™ for optimum brightness in 12 and 24 volt systems.

Power Consumption

Fog:  25W
Daytime Running Lamp: 15W
Front Position: 3W

Protection

IP 5K4K (Protection against dust and high-pressure water splash)
IP 5K9K  (Protection against dust and high-pressure/steam jet cleaning)

Connection

4 pole FEP socket

Spare Parts

4988-P 4 pole FEP plug kit
4988-DT 4 pole FEP to DT adaptor

Compliance

Fog: E1 3831 ECE R19/03  CE
Daytime Running Lamp: ECE R87/00
Front Position: ECE R7/02

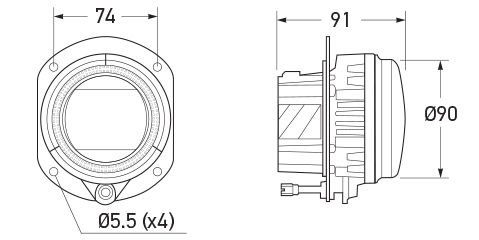

Outline

All dimensions in mm.
All dimensions in mm.
