HELLA

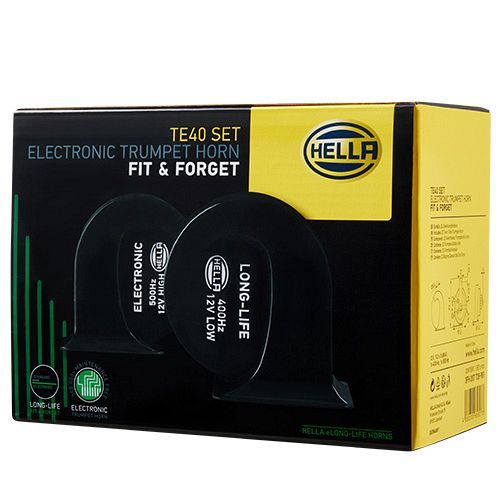

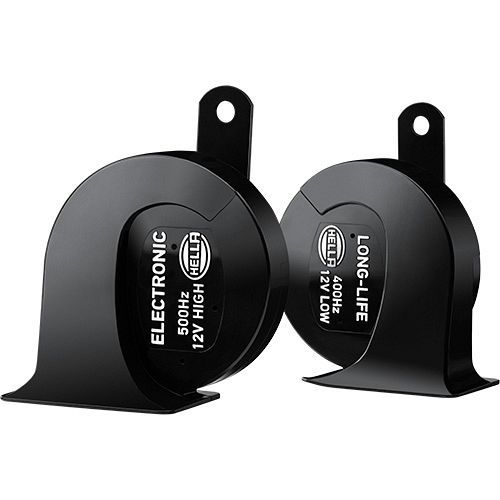

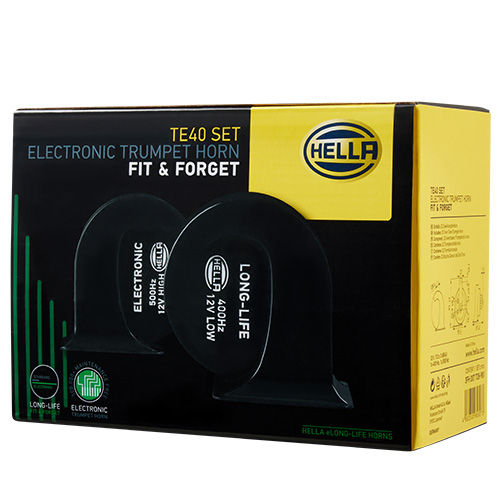

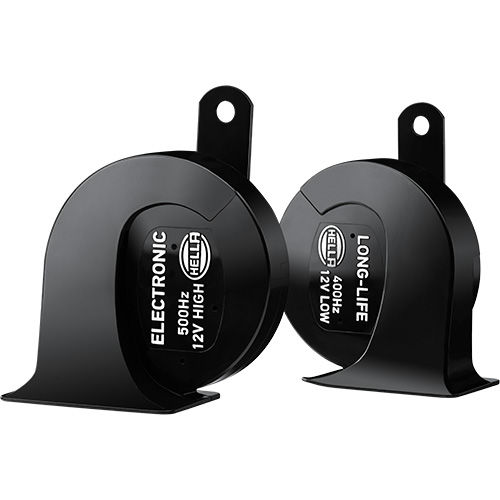

TE40 Series Electronic Trumpet Horn Twin Tone 12V - Set of 2

Electronic Trumpet Horn, High and Low Tone, twin horn Kit.

  • Ultra-Long service life (500,000+ cycles)
  • Switching mechanism is replaced by an electronic component.
  • 3 year HELLA quality warranty.
  • 6.3 mm blade terminal contacts, open.
  • M8 fixing screw.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

3 Year Warranty

Options

TE40 SERIES High and Low tone 12V Horns Set (2pcs)

TE40 SERIES High and Low tone 12V Horns Set (2pcs)

PART NO: 3FH 007 728-981

Add to favourites

Specifications

Mounting

Single bolt mounting. M8 fixing screw.

Power consumption

48W x2 (~4.0A)

Voltage

12V DC

Frequency

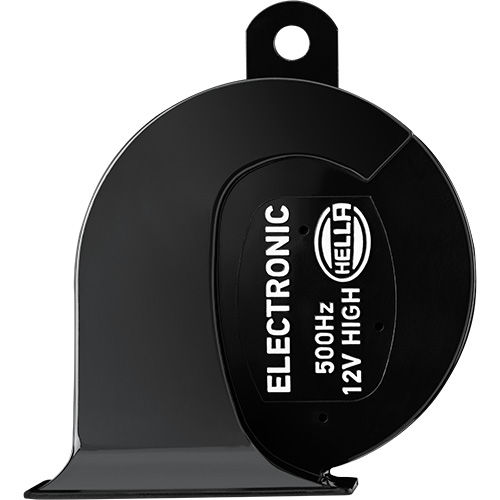

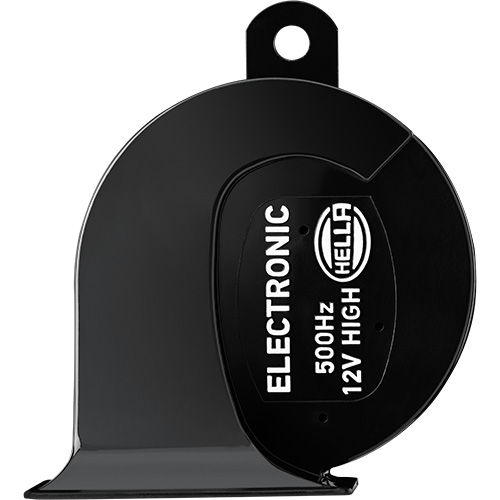

High Tone 500Hz

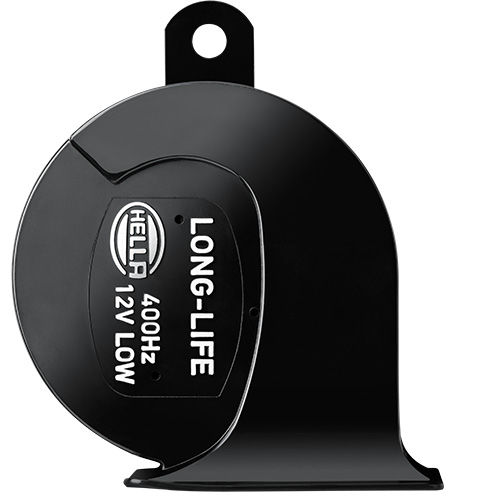

Low Tone 400Hz

Sound level

Combined 112dB @ 2.0m.

Protection Level

IP65

Approvals

ECE R28

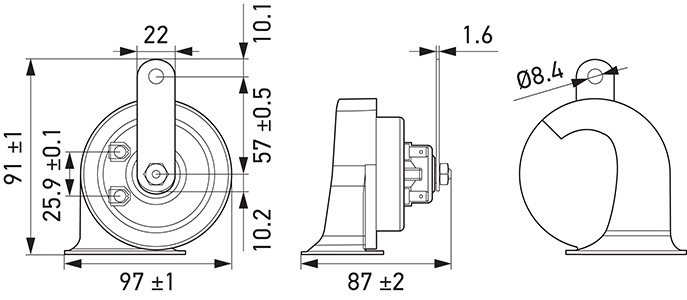

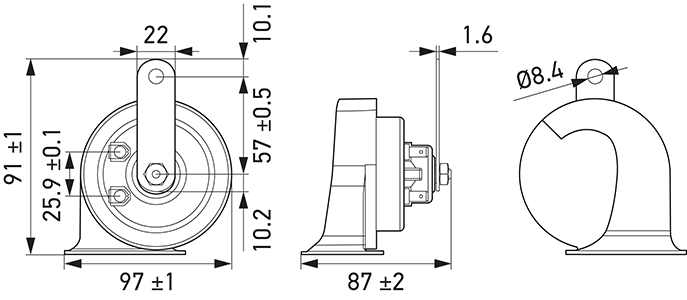

Outline

All dimensions in mm
All dimensions in mm

Documents

Document File Name File Size
  Product Info Sheet Horns -TE40 Series.pdf 852.72 KB
