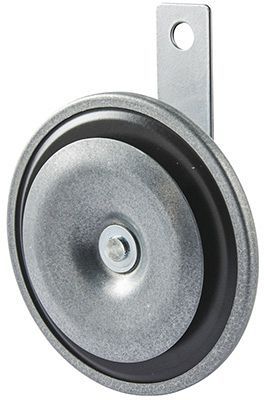

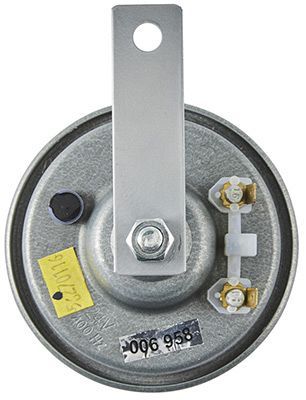

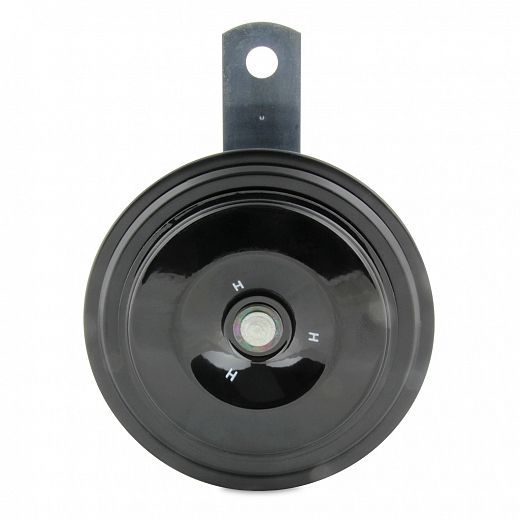

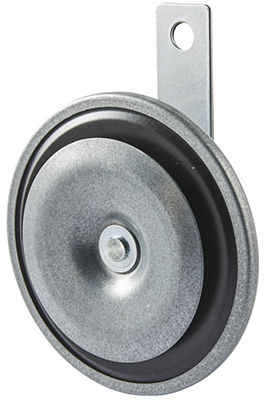

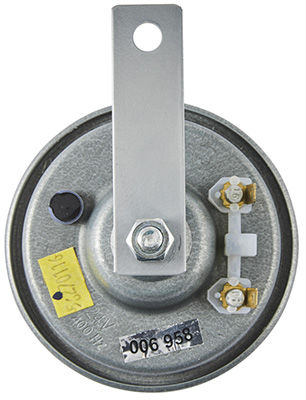

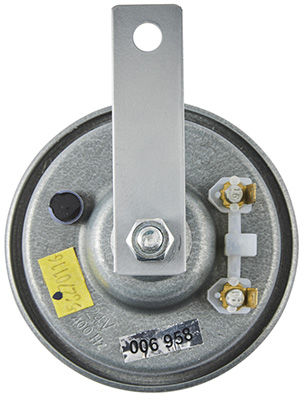

Disc Horn High Tone

To find a HELLA reseller near you, click here.

3AL 980 315-001 / 6003 (12 Volt)

Rollover/tap the icons below for further details:

Options

PART NO: 3AL 980 315-001
Legacy PN: 6003

PART NO: 3AL 006 958-821

Mounting	Single bolt mounting. 92mm diameter (3AL 980 315-001) 97mm diameter. (3AL 006 958-821)
Power consumption	72W (12V) 84W (24V)
Frequency	435Hz (12V) 400Hz (24V)
Sound level	110 dB @ 2.0m. 115 dB @ 2.0m.
