HELLA

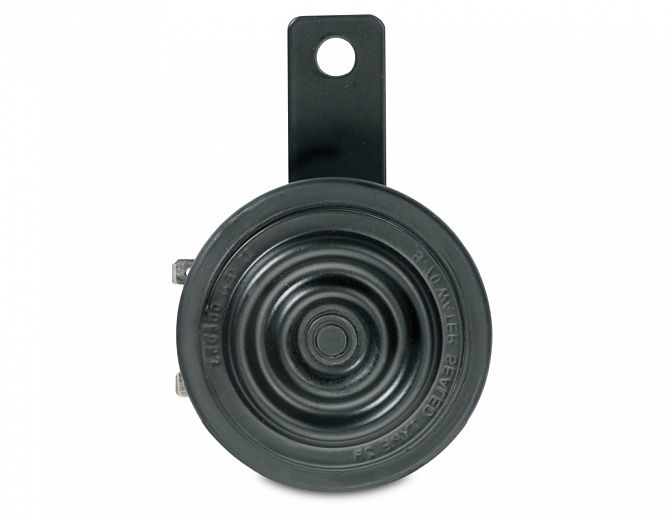

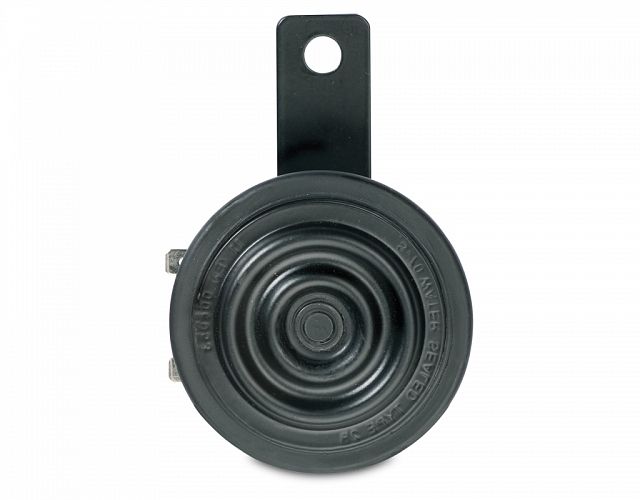

S70 Compact Horn - 12V

Size doesn’t matter when it comes to this compact yet powerful super tone horn. The space saver with an outstanding size/performance ratio features a long-range sound that makes sure you are heard and therefore safer in day to day road traffic.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

Options

Super Tone Horn - S70

PART NO: 3AL 922 196-011
Legacy PN: 6029

Specifications

Mounting

Single bolt mounting.

Voltage

12 Volt

Power Consumption

30W

Protection

IP X4K (Protection against high pressure water splash)

Frequency

420Hz

Sound level

112 dB @ 2m

Connector

Male blade terminals

Compliance

ECE R28

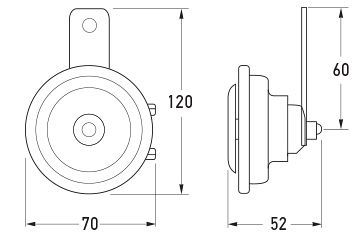

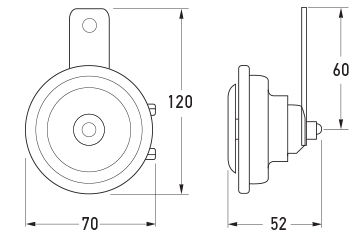

Outline

All dimensions in mm.
All dimensions in mm.
