HELLA

Super Seal Connector - Terminals and Seals

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

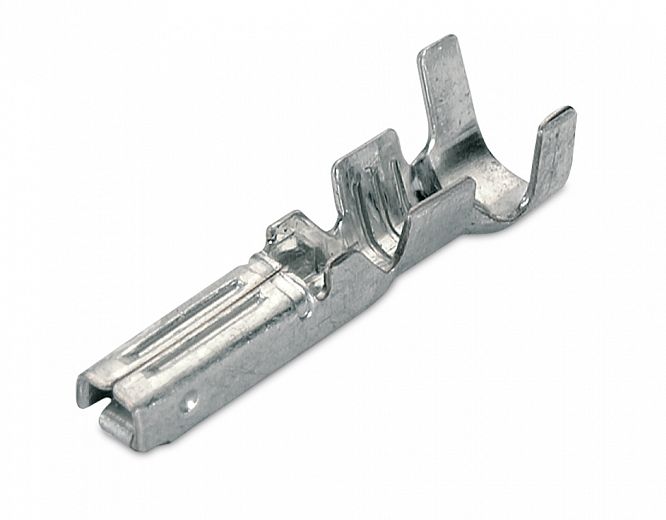

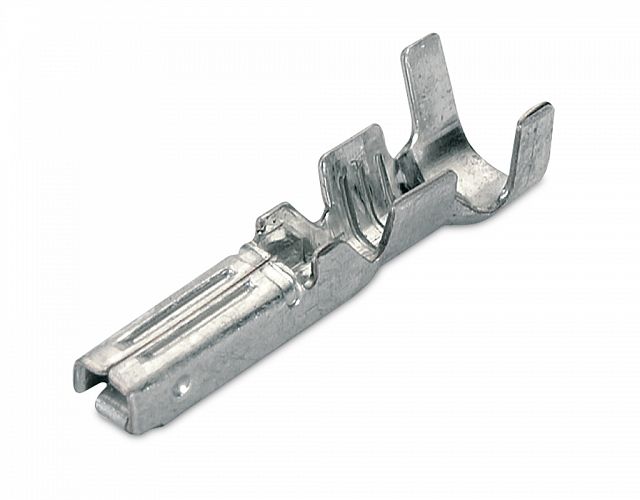

Super Seal Terminals - Female for Plug - suit cable 0.35-0.50mm2 - Pack of 50

PART NO: 8KW 959 882-811
Legacy PN: 9498001

Super Seal Terminals - Female for Plug - suit cable 0.50-1.50mm2 - Pack of 50

PART NO: 8KW 959 882-511
Legacy PN: 9498002

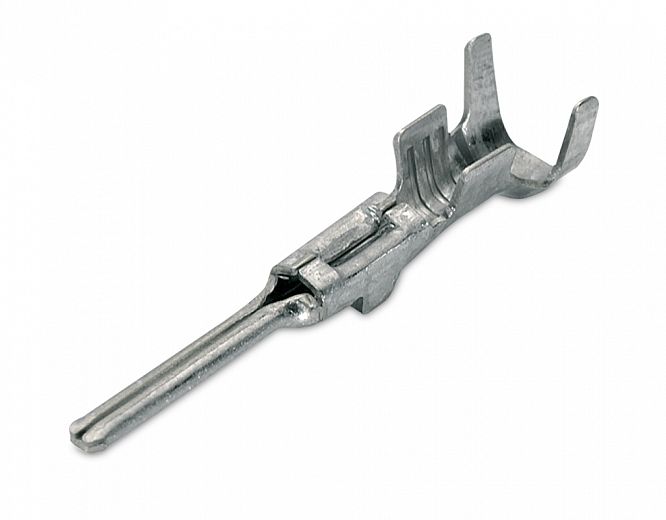

Super Seal Terminals - Male for Socket - suit cable 0.35-0.50mm2 - Pack of 50

PART NO: 8KW 959 882-411
Legacy PN: 9498003

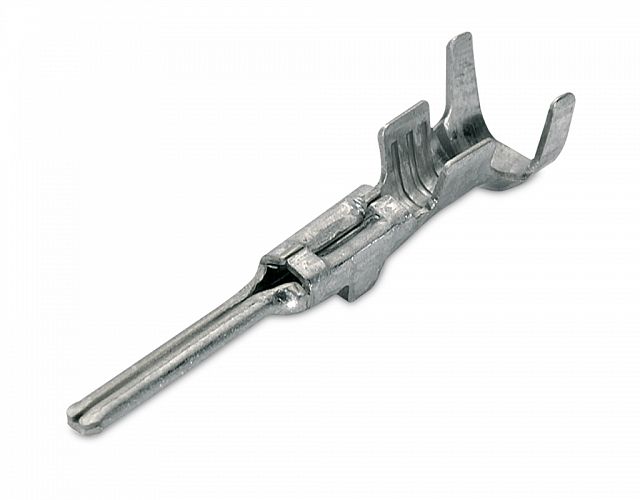

Super Seal Terminals - Male for Socket - suit cable 0.50-1.50mm2 - Pack of 50

PART NO: 8KW 959 882-111
Legacy PN: 9498004

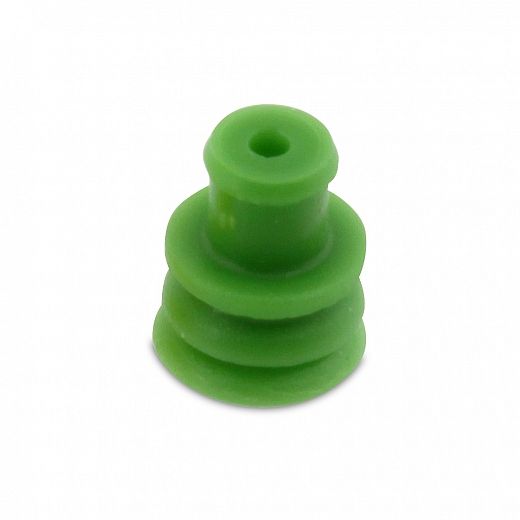

Super Seal - Green Seal - Cable Insulation 1.2-1.6mm Diameter - Pack of 50

PART NO: 9GD 959 883-201
Legacy PN: 9498005

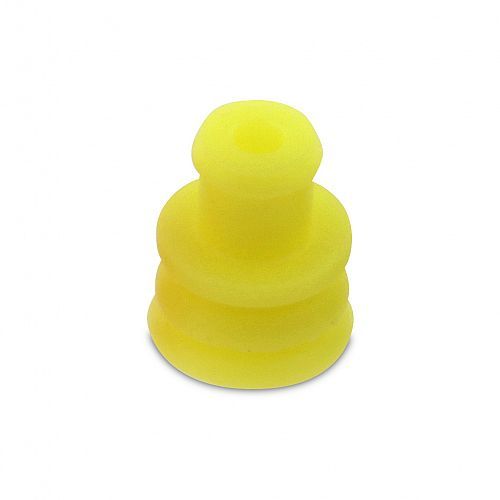

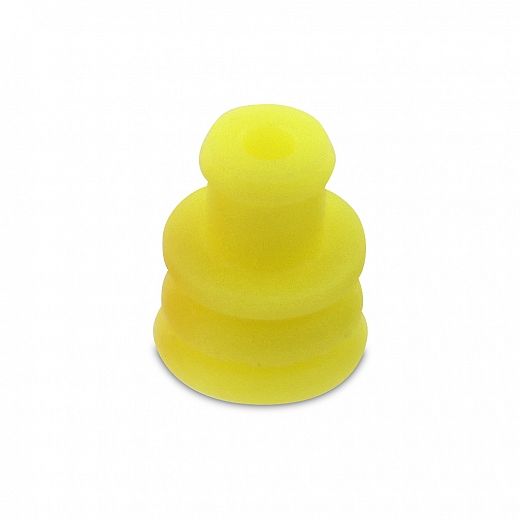

Super Seal - Yellow Seal - Cable Insulation 1.7-2.4mm diameter - Pack of 50

PART NO: 9.4980.06

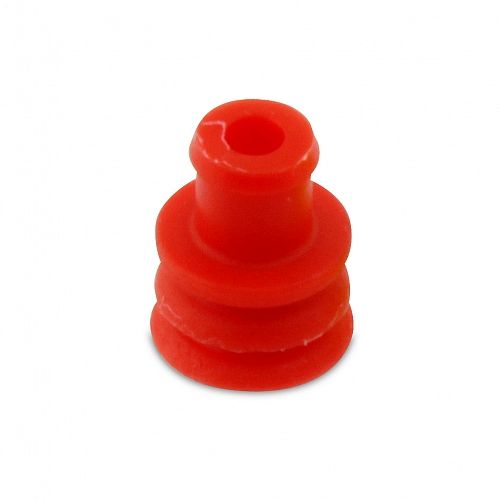

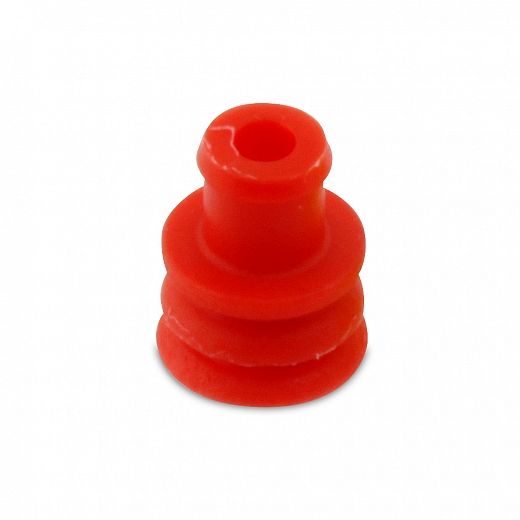

Super Seal - Red Seal - Cable Insulation 2.5-3.3mm diameter - Pack of 50

PART NO: 9GD 959 883-301
Legacy PN: 9498007

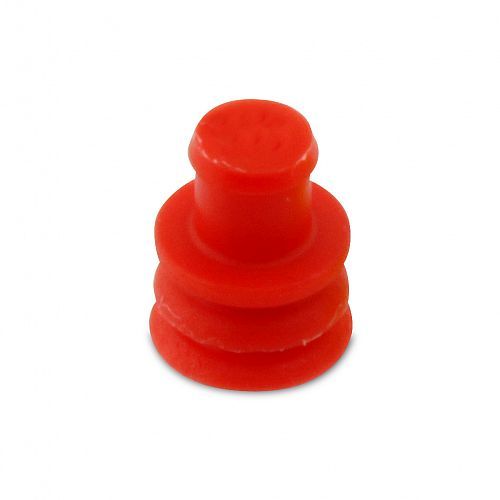

Super Seal - Red Cavity Plug (no hole) - Pack of 50

PART NO: 9GD 959 883-501
Legacy PN: 9498009

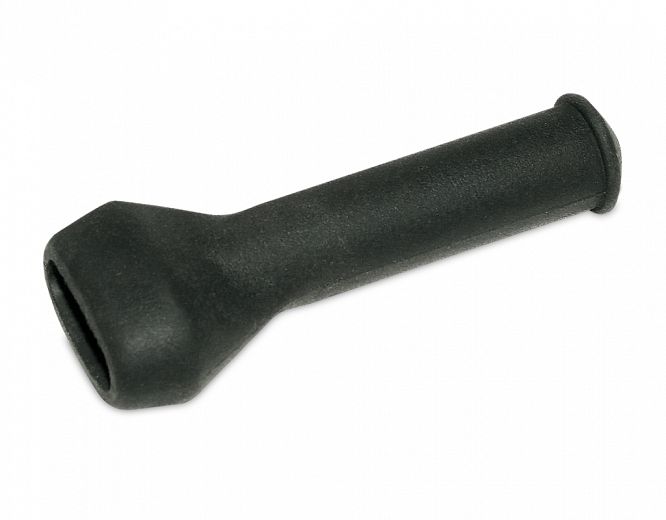

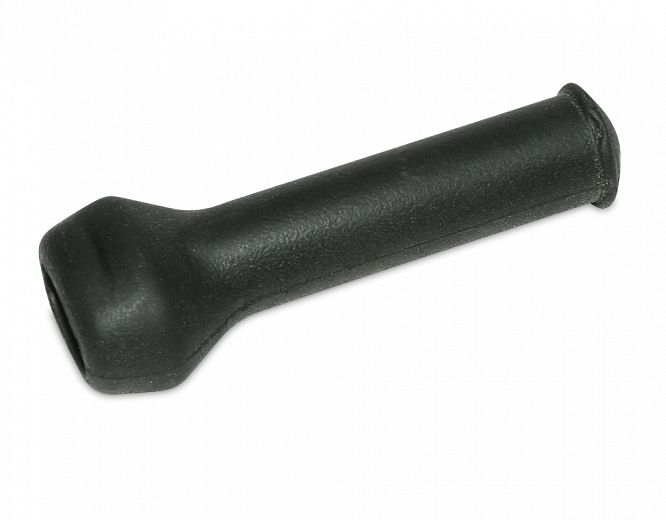

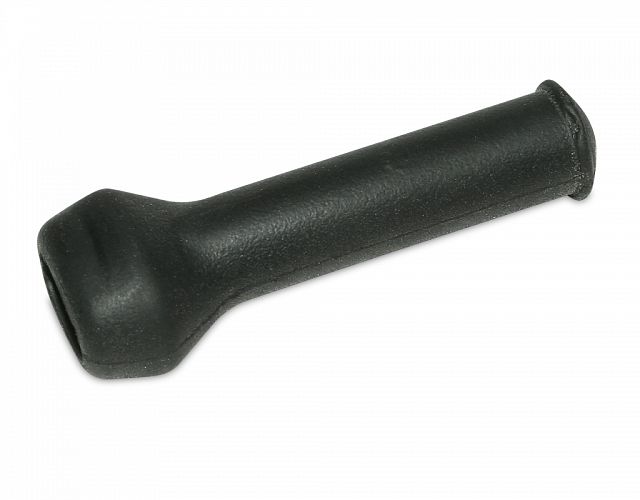

Super Seal Rubber Sealing Boot - 2 Pin Connector

PART NO: 9HB 343 699-011
Legacy PN: 9498205

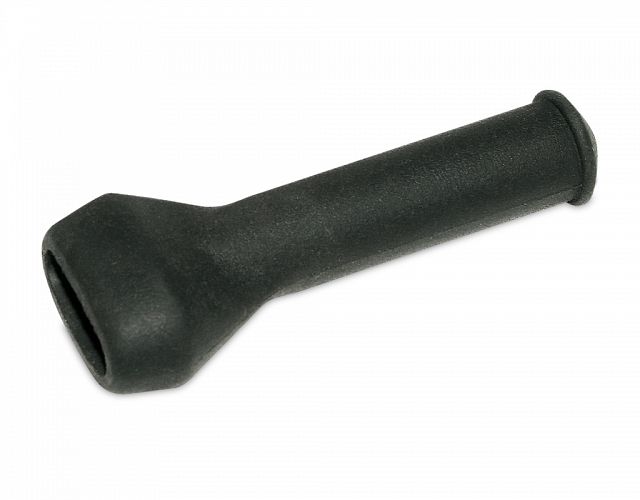

Super Seal Rubber Sealing Boot - 3 Pin Connector

PART NO: 9HB 332 130-011
Legacy PN: 9498305

Specifications

Terminals

Female - Phosphor bronze, tinned
Male - Brass, Tinned

Seals

Made from silicon rubber. Seals shaped for easy insertion into connector. The hoop rings in the crimping area ensure excellent pull relief for the terminals. Suitable with insulation 1.5-33mm diameter.

Current rating

14A maximum
