Super Seal Connector - 4 Pole

Super seal connector housings were developed to satisfy increasing requirements for safety and reliability in the field of electrical connections. The connectors can be connected to existing components and used with the equipment presently in use in the automotive industry (sensors, oil pressure sensors, water temperature monitoring circuits, etc.).

• IP 67 (Protection against dust and temporary water immersion)
• Robust and reliable contact. Max. current 14A.
• Prefabricated secondary lock ensures that the terminal is plugged into the housing correctly and prevents slipping out of the connector.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

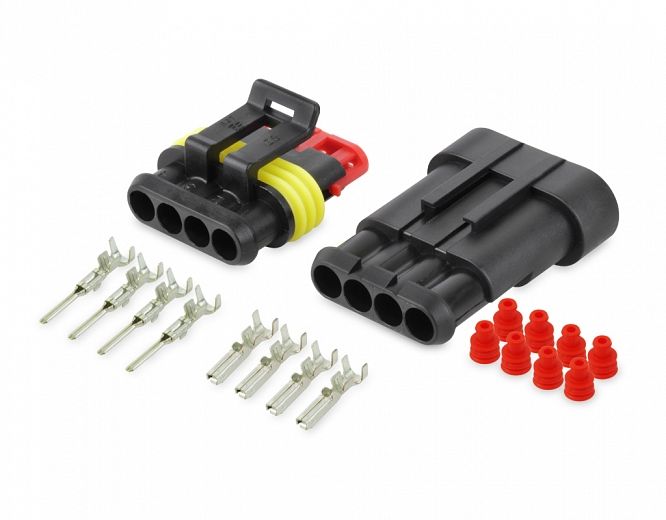

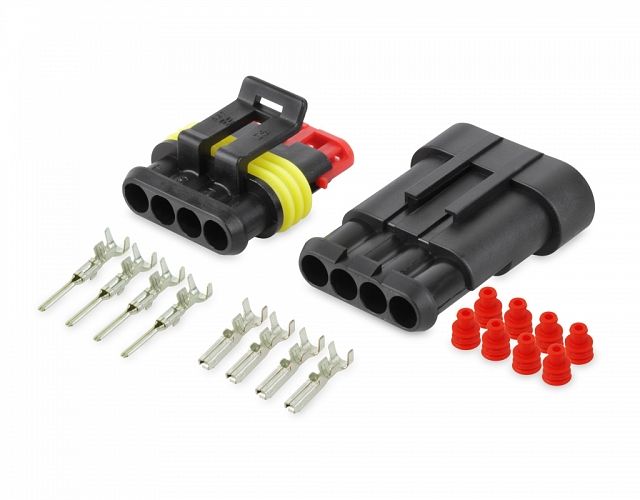

Super Seal Connector - 4 Pole Plug and Socket Kit

PART NO: 8KW 959 881-831
Legacy PN: 4984

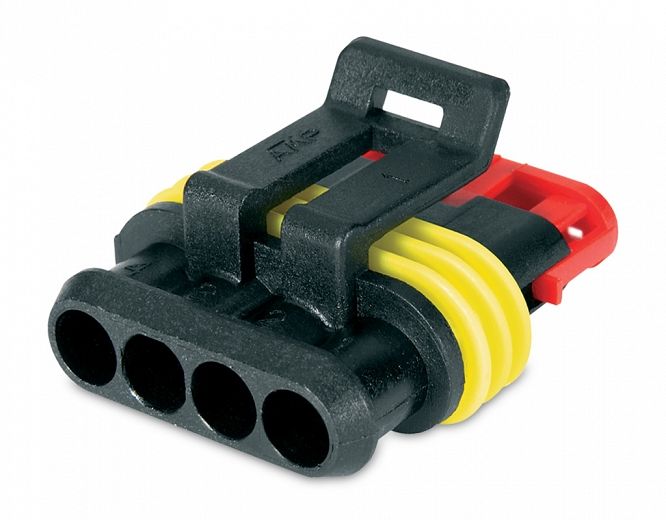

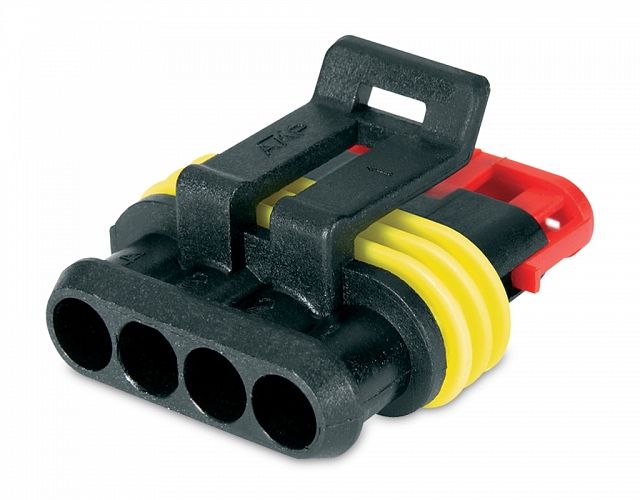

Super Seal Connector - 4 Pole Plug - (Pack of 3)

PART NO: 8KW 959 881-545
Legacy PN: 4984P

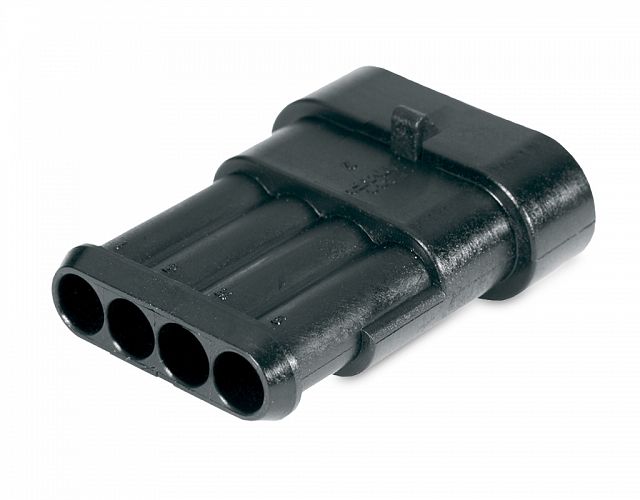

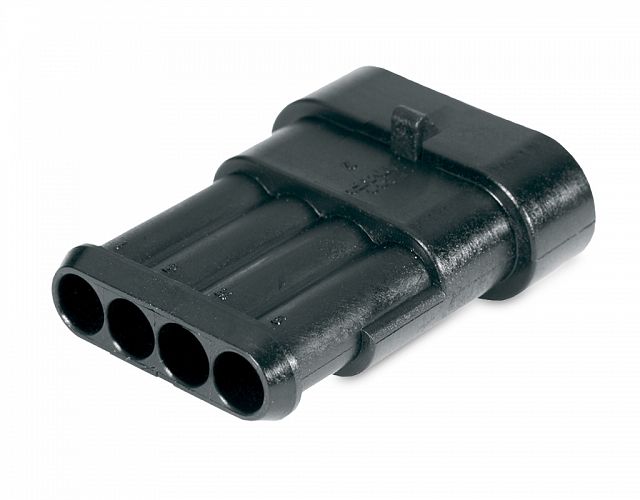

Super Seal Connector - 4 Pole Socket - (Pack of 3)

PART NO: 8KW 959 881-045
Legacy PN: 4984S

Specifications

Note

For ‘P’ and ‘S’ versions only the bare connector is supplied. Select appropriate seals and terminals to suit. Plug and socket kits come complete with terminals and seals.

Seals

Made from silicon rubber. Seals shaped for easy insertion into connector. The hoop rings in the crimping area ensure excellent pull relief for the terminals. Suitable with insulation 1.5-33mm diameter.

Connector

Housing and secondary lock - polyamide 6.6 glass filled

Resistant to

Ozone, salts (CaCI2-NaCI), petrol, diesel fuel, anti-freeze, ATM and engine oil.

Temperature Range

-40°C to 125°C

Insulation resistance

Minimum 200MΩ

Terminals

Male terminal for socket Brass, tinned
Female terminal for plug Phosphor bronze, tinned

Current rating

14A maximum

Insert force

Maximum 8N

Contact resistance

Maximum 3MΩ

Connector Compliance

IP 67 (Protection against dust and temporary water immersion)
