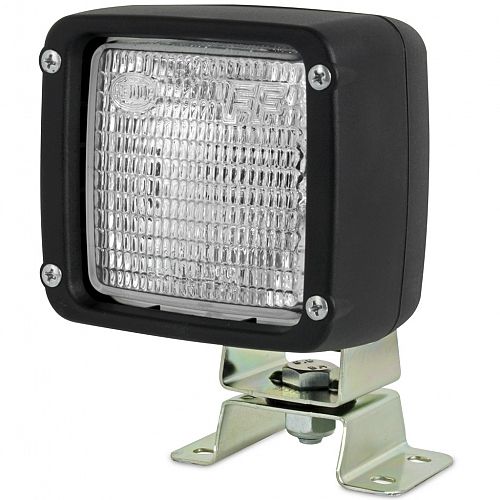

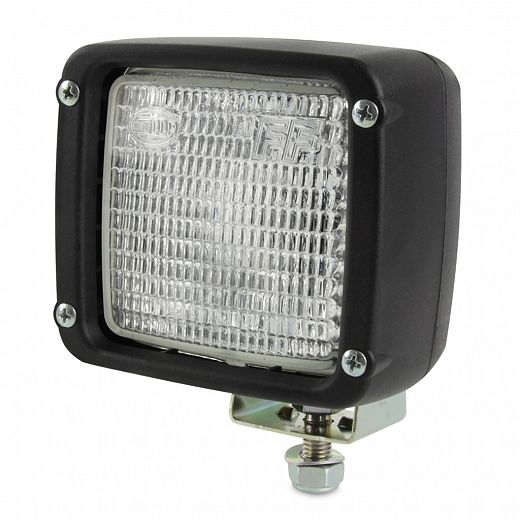

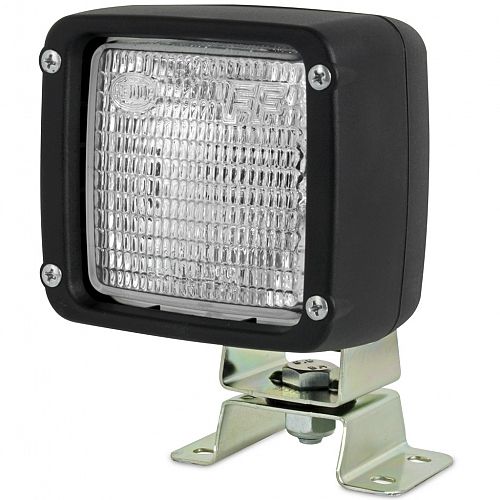

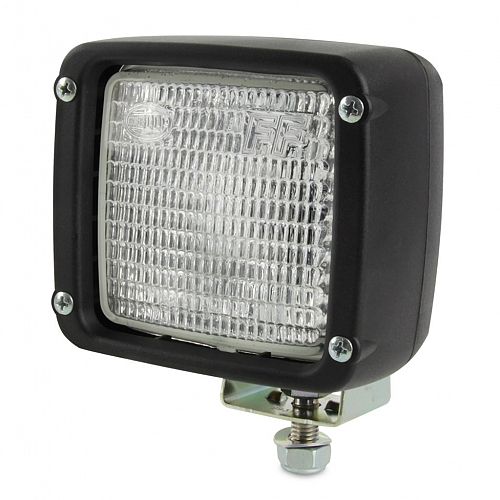

Ultra Beam Halogen Work Lamp - Close Range

Halogen work lamp with Free-Form (FF) reflector for uniform close range illumination. Made of die-cast aluminium. Glass lens bonded with reflector to be dust and moisture-proof. Shock-proof plastic housing. External wiring connection. DT version with 2 pin Deutsch rear plug.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Bulb Included

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

Options

Ultra Beam Halogen Work Lamp - Close Range - 12 Volt Bulb

Ultra Beam Halogen Work Lamp - Close Range - 12 Volt Bulb

1533
Ultra Beam Halogen Work Lamp - Close Range - 12 Volt 35W Bulb

Ultra Beam Halogen Work Lamp - Close Range - 12 Volt 35W Bulb

1533-35W
Ultra Beam Halogen Work Lamp - Close Range - 24 Volt Bulb

Ultra Beam Halogen Work Lamp - Close Range - 24 Volt Bulb

1533-24V
Ultra Beam Halogen Work Lamp - Close Range - 24 Volt Bulb and DT Plug

Ultra Beam Halogen Work Lamp - Close Range - 24 Volt Bulb and DT Plug

1533-DT24V

Specifications

Mounting

Upright, side or pendant mounting through swivelling the lamp unit 90°. U-shape four point fixing bracket with M10 screw for mounting on horizontal and vertical surfaces.
Detachable pipe socket base also available.

Power Consumption

12V 55W/35W
24V 70W

Bulbs to Suit

12V YC1255, YC1235 (1533-35W)
24V YC2470

Protection

IP 6K4K (Protection against dust and water splash)
IP X9K (Protection against high-pressure jets)

Spare Part

9.1533.01 Insert
9.1533.05 Plug and lead
9.1533.08 Pedestal bracket
9.1530.07 Stainless steel bracket
9.1557.05 Deutsch plug and 2.5m of sheathed cable 0.75mm2 (1533-DT24V only)
9.1549.05 Deutsch plug and 2.5m of sheathed cable 1.25mm2 (1533-DT24V only)

Note

Not suitable for 100W bulbs.

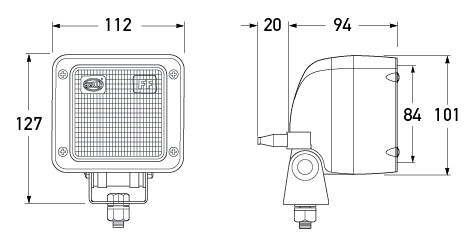

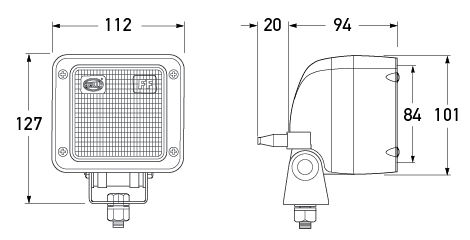

Outline

All dimensions in mm.
All dimensions in mm.

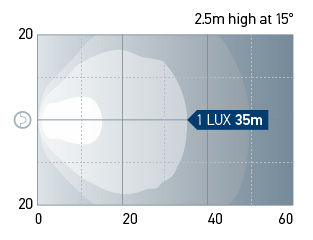

Light Output

Beam pattern: Ultra Beam - Close range
Beam pattern: Ultra Beam - Close range
