Micro DE Halogen Work Lamp - Close Range

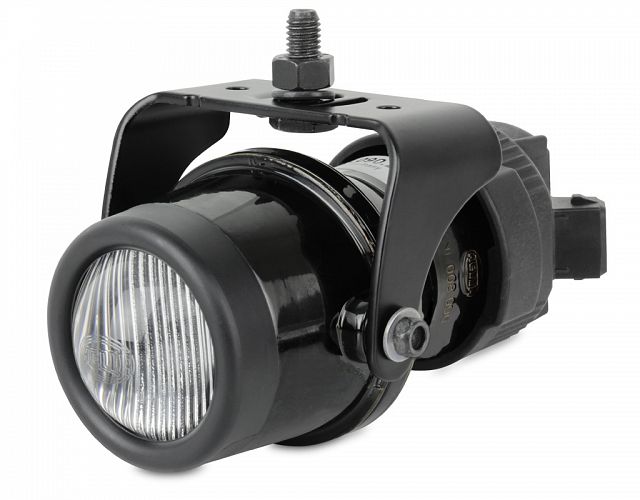

Compact Micro DE (Diaxial Ellipsoid) Halogen work lamp for use in applications with limited mounting space. Concentrated close range illumination. Magnesium housing with U-shaped one point mounting bracket.

For 24V applications, please install bulb P/N YC2470

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

12 Volt Bulb Included

Options

Micro DE Halogen Work Lamp - Close Range - 12 Volt Bulb

Micro DE Halogen Work Lamp - Close Range - 12 Volt Bulb

1501

Specifications

Mounting

Upright or pendant.

Power Consumption

12V 55W

Bulbs to Suit

12V YC1255
24V YC2470

Protection

IP 5K4K (Protection against dust and water splash)

Spare Part

9HD 149 253-007 Plastic cap with cable

Note

Not suitable for 100W bulbs.

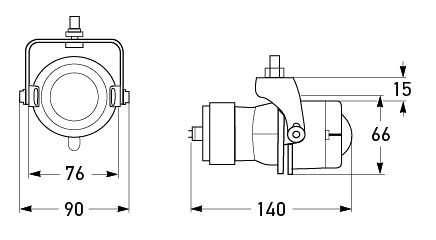

Outline

All dimensions in mm.
All dimensions in mm.
