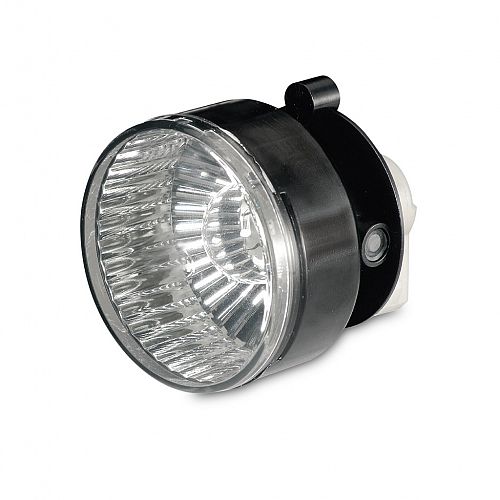

Reversing Lamp - 66mm Module

The lamp features a reflector with a high quality facet pattern and a clear lens. Optimised light output, making applications behind outer cover lenses possible.

For 24V applications, please install bulb P/N R2421

To find a HELLA reseller near you, click here.

P/N 2ZR 009 001-011 (Reversing Lamp - 66mm Module - 12V Bulb)

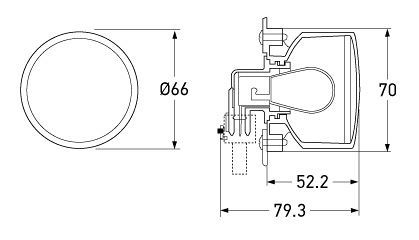

All dimensions in mm.

Rollover/tap the icons below for further details:

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

Reversing Lamp - 66mm Module - 12V Bulb

PART NO: 2ZR 009 001-011

Add to favourites

Specifications

Mounting

Mounting depth of 80mm. The standard version is designed to be mounted with a screw fitting from the rear.
If required the lamp can be fitted from the front using an optional mounting plate. Simplified electrical connection via a two or three pin plug (not supplied).

Bulb to Suit

12V	R1221
24V	R2421

Accessories

9HB 161 122-007	Silver Design Ring for 60mm modules (Optional)
9XD 161 119-007	Mounting Plate
8JD 156 150-807	Two Pole Plug (with terminals AND seals)
2SB 009 362-021	LED Ring Stop/Rear Position Lamp - 12V
