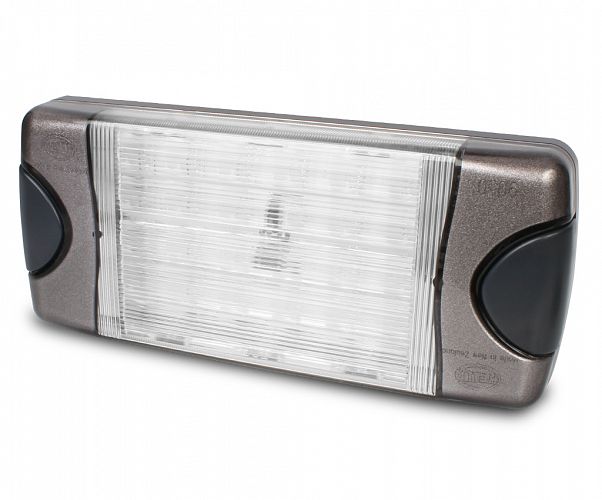

DuraLED® Combi Stop/Rear Position/Rear Direction Indicator/Reversing Lamp/Night Light and DT Connector

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.
‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety. Products that carry the DuraLED® name will outlast the life of the vehicle.
Whilst keeping its design heritage and appearance the DuraLED® range has been continuously upgraded to the latest material and electronic component technology.

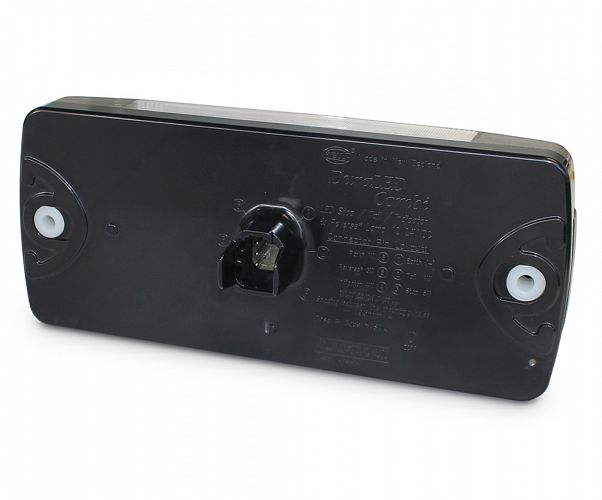

P/N 2380-DT and P/N 2380-DTGMD feature Night Light and a DT Connector for easy installation.

Ideal for trucks and utes

Plug & Play
Easy installation

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Grilamid®
Hella P/N 2380-DTGMD features Grilamid® lens. Please click on Grilamid® above for further information.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED<sup>®</sup> Combi with Reverse Lamp, Night Light and DT Connector

DuraLED® Combi with Reverse Lamp, Night Light and DT Connector

2380-DT
DuraLED<sup>®</sup> Combi with Reverse Lamp, Night Light and DT Connector - Grilamid<sup>®</sup> lens

DuraLED® Combi with Reverse Lamp, Night Light and DT Connector - Grilamid® lens

2380-DTGMD

Specifications

Optics

Optic appears clear until illuminated

Mounting

Two hole surface mount with mounting bushes supplied.
Suitable for horizontal mounting.

Voltage

Multivolt for optimum brightness in 12 and 24 volt systems.

Power Consumption

Stop: 5W
Rear position: 1W
Rear direction indicator: 4W
Reverse: 3W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Accessory

4963-P 6 pole DT plug, wedge and 6 contacts.

Lens Material

Grilamid®

Compliance

ADR 1/00 ADR 6/00: Cat 2a ADR 49/00 E24 5870
ECE R6/01 ECE R7/02 ECE R23/00

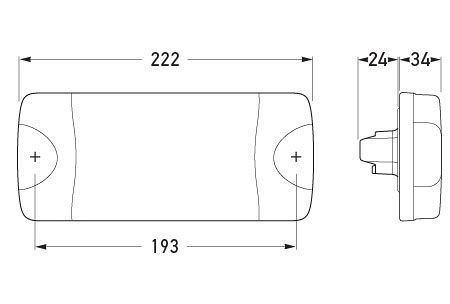

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2380-DT 2380-DTGMD - Instruction Sheet.pdf 400.27 KB
