HELLA

DuraLED® Combi-SR DT Connector Versions

The new all-in-one 5 function Combi-SR Lamp now incorporates a built-in retro reflector, saving both time and money on installation. The all-in-one design makes the Combi-SR the ideal choice for vehicles with limited space to mount a separate reflector.

DT Connector options enhance installation flexibility and the innovative HCS feature means these lamps work seamlessly with many late model vehicle electrical systems. Made with a high performance Grilamid® lens offering unmatched resistance to impact, long term UV exposure and commonly used chemicals. DT version also features an additional night light function.

As with all products in the DuraLED® range, this new lamp offers superior durability and a class leading lifetime warranty* for complete peace of mind.

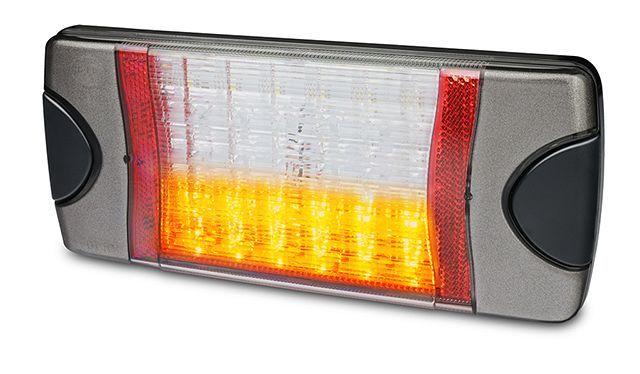

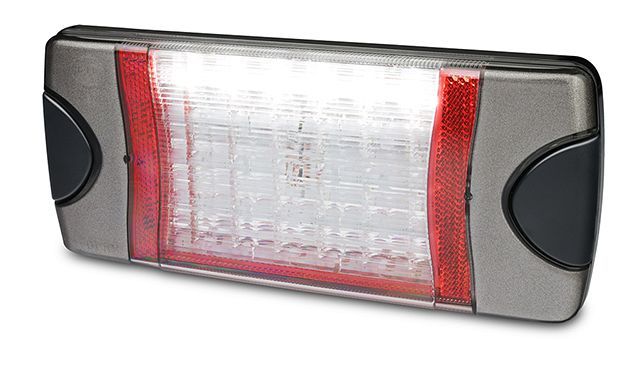

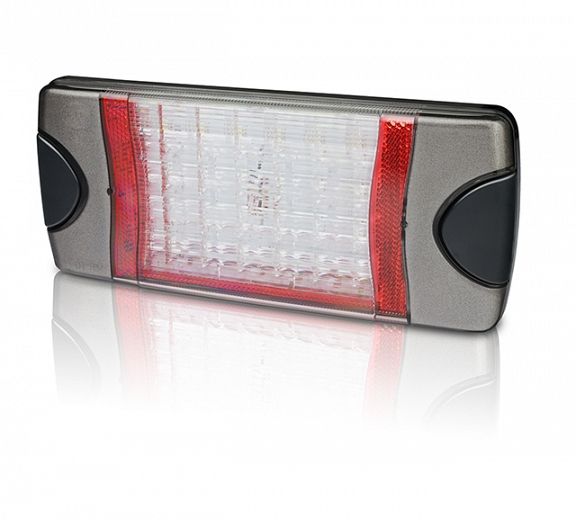

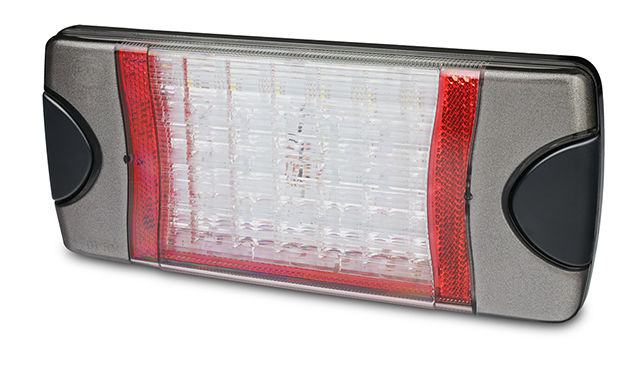

 DuraLED Combi-SR

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.


Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

HELLA Compatibility Solution HCS

HCS Icon For more information on HELLA Compatibility Solution (HCS) click here.



To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
* Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED® Combi-SR - DT Connector

PART NO: 2VP 015 075-001

DuraLED® Combi-SR - DT Connector with HCS Technology

PART NO: 2VP 015 075-101

Specifications

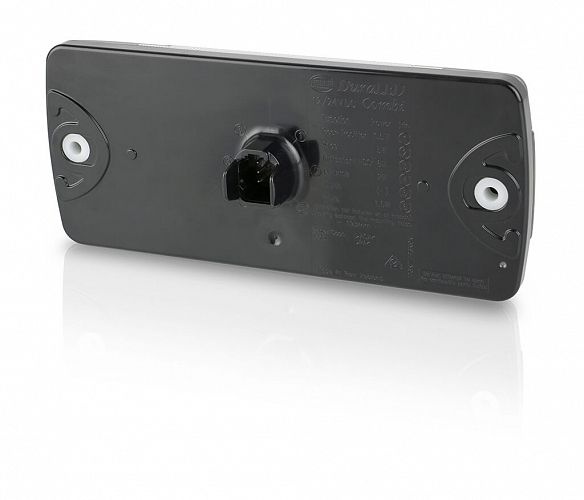

Mounting

Suitable for horizontal mounting.
Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt suitable for 12 and 24V DC systems

Power Consumption

Stop: 5W
Rear position: 1.5W
Rear direction indicator: 6W
Reverse: 2W
Night Light: 1.5W

Protection

  Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)



Accessory

4963-P 6 pole DT plug, wedge and 6 contacts (not included with lamp).

Lens Material

Grilamid®

Compliance

ECE R148 ECE R150
ISO 13207-1 ECE R10 CE

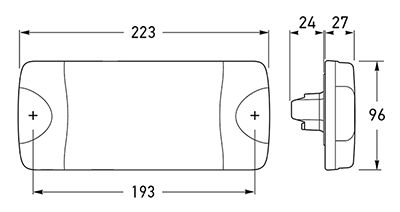

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  460-965-11 Instruction Sheet.pdf 469.96 KB
