HELLA

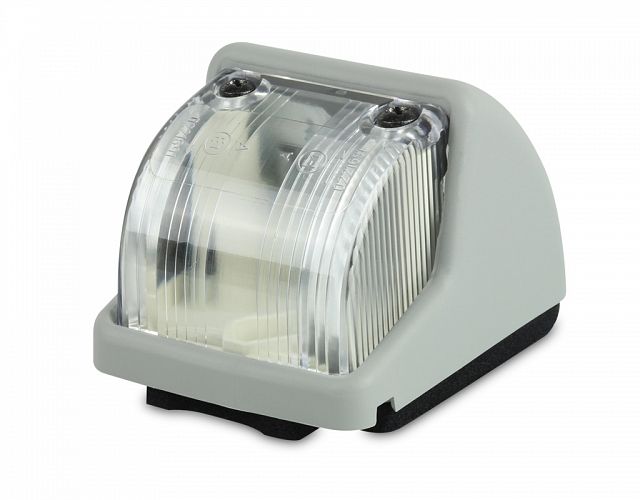

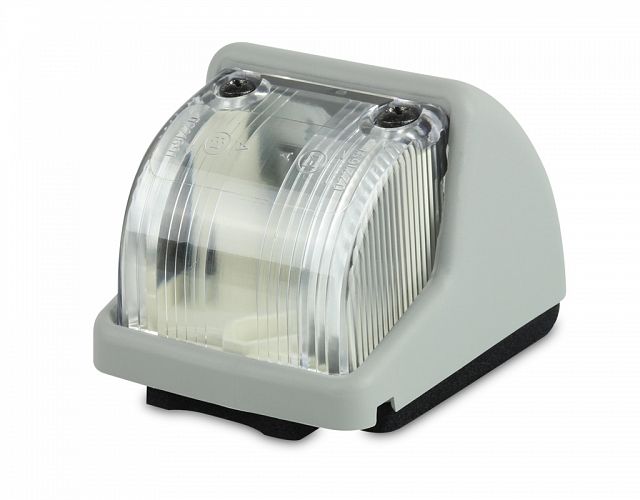

Front Position/End Outline Lamp

Front position and front end outline lamp fitted with a polycarbonate lens and single bulb holder.

For 24V applications, please install bulb P/N G2410

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

12 Volt Bulb Included

Options

Front Position/Front End Outline Lamp - 12V Bulb

Front Position/Front End Outline Lamp - 12V Bulb

2066

Specifications

Bulb to Suit

12V G1210
24V G2410

Compliance

ADR 49/00 E1 32 1691 ECE R7/02

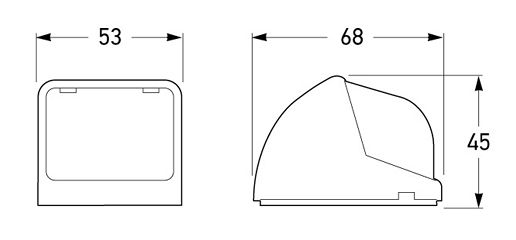

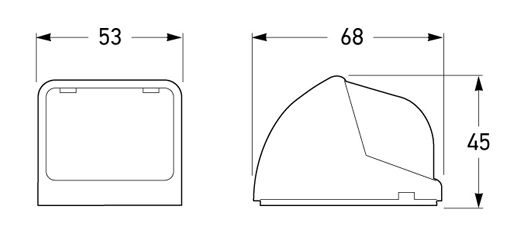

Outline

All dimensions in mm.
All dimensions in mm.
