HELLA

LED Courtesy Strip Lamp - Surface Mount

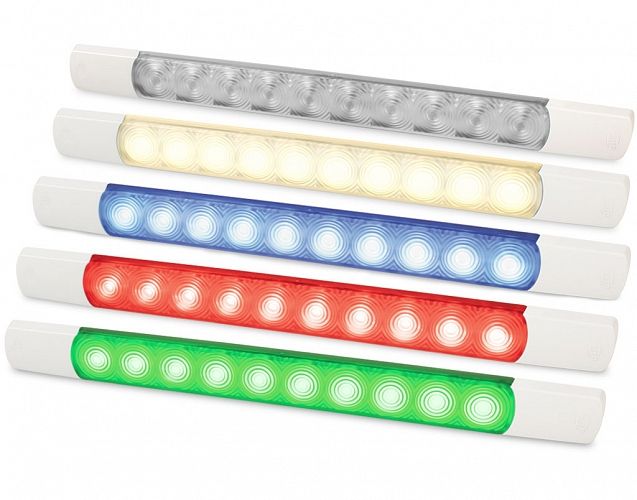

These LED courtesy surface mount strip lamps feature a shallow 11mm profile and completely sealed housings. Available in blue, red and green colour variants.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmabe Analog DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Made in New Zealand

Options

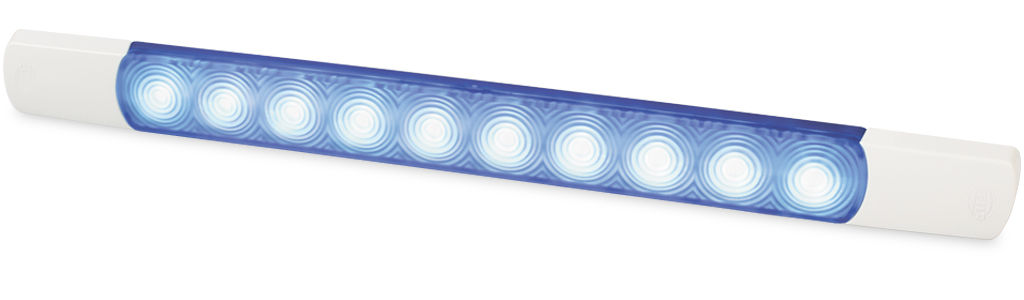

LED Courtesy Surface Mount Strip Lamp - 12 Volt - Blue Light

LED Courtesy Surface Mount Strip Lamp - 12 Volt - Blue Light

2JA 980 881-402

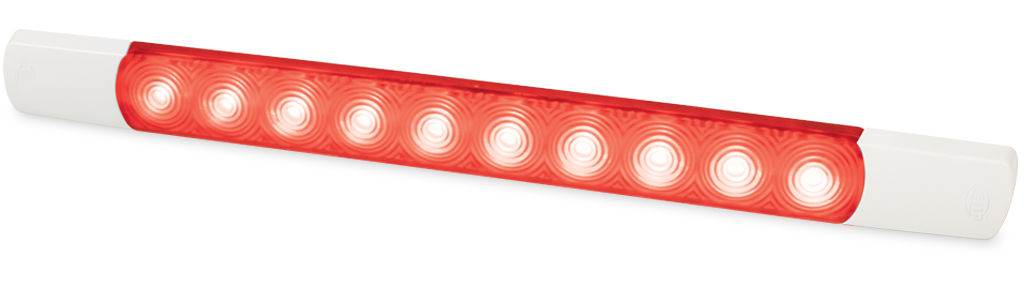

LED Courtesy Surface Mount Strip Lamp - 12 Volt - Red Light

LED Courtesy Surface Mount Strip Lamp - 12 Volt - Red Light

2JA 980 881-602

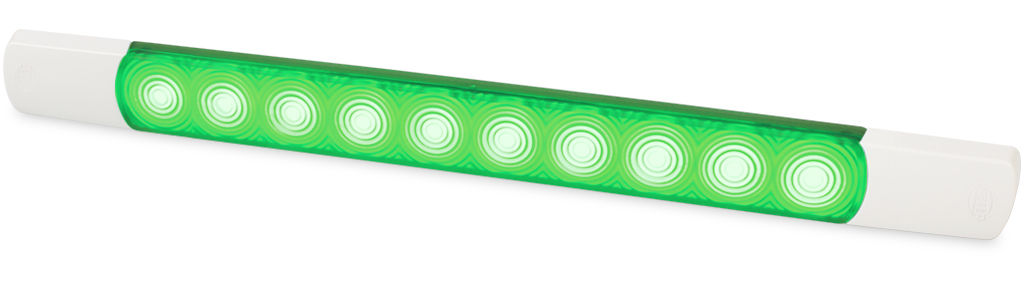

LED Courtesy Surface Mount Strip Lamp - 12 Volt - Green Light

LED Courtesy Surface Mount Strip Lamp - 12 Volt - Green Light

2JA 980 881-802
LED Courtesy Surface Mount Strip Lamp - 24 Volt - Blue Light

LED Courtesy Surface Mount Strip Lamp - 24 Volt - Blue Light

2JA 980 881-502
LED Courtesy Surface Mount Strip Lamp - 24 Volt - Red Light

LED Courtesy Surface Mount Strip Lamp - 24 Volt - Red Light

2JA 980 881-702
LED Courtesy Surface Mount Strip Lamp - 24 Volt - Green Light

LED Courtesy Surface Mount Strip Lamp - 24 Volt - Green Light

2JA 980 881-902

Specifications

Optics

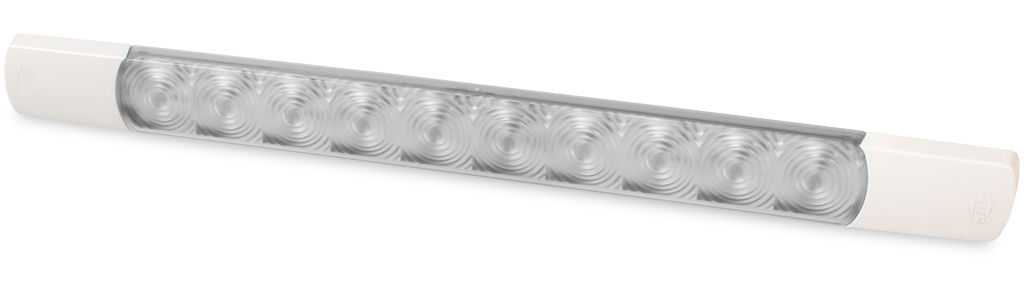

Optic appears clear until illuminated.

Mounting

Surface mount.

Power Consumption

<2W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable.

Spare Parts

9.2652.09 White screw caps (Pack of 4)
9.1009.09 Charcoal screw caps (Pack of 4)
9.1009.10 Chrome plated screw caps (Pack of 4)
5XA 998 572-001 2 Group Light Dimmer

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2JA 980 881-XXX Instruction Sheet.pdf 594.13 KB
