HELLA

EuroLED® 95 Down Lights - Screw Mount

Available with white plastic or stainless steel rim

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

High Impact Acrylic Lens Material

This specially formulated high impact acrylic (PMMA) offers enhanced resistance against long term UV-exposure and commonly used chemical washes, liquids, etc.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is adjusted between 10-100% using a high frequency PWM (pulse width modulation) DC power supply, with adjustable duty cycle control.

Dimmable PWM

Light intensity is adjusted between 10-100% using a high frequency PWM (pulse width modulation) DC power supply, with adjustable duty cycle control.

Made in New Zealand

Options

EuroLED<sup>®</sup> 95 Down Lights - Recess Mount - White Light - White Plastic Rim

EuroLED® 95 Down Lights - Recess Mount - White Light - White Plastic Rim

PART NO: 2JA 980 940-001

Add to favourites
EuroLED<sup>®</sup> 95 Down Lights - Recess Mount - White Light - Polished Stainless Steel Rim

EuroLED® 95 Down Lights - Recess Mount - White Light - Polished Stainless Steel Rim

PART NO: 2JA 980 940-011

Add to favourites

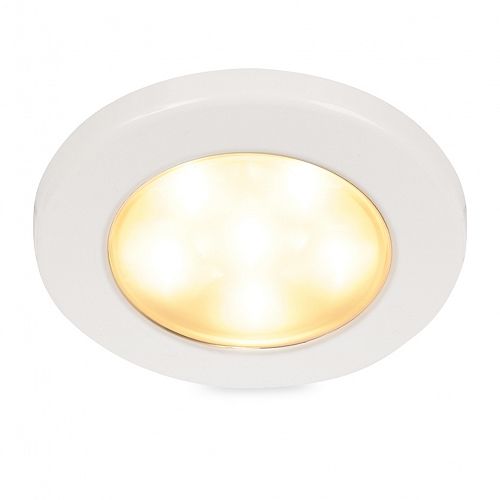

EuroLED<sup>®</sup> 95 Down Lights - Recess Mount - Warm White Light - White Plastic Rim

EuroLED® 95 Down Lights - Recess Mount - Warm White Light - White Plastic Rim

PART NO: 2JA 980 940-101

Add to favourites

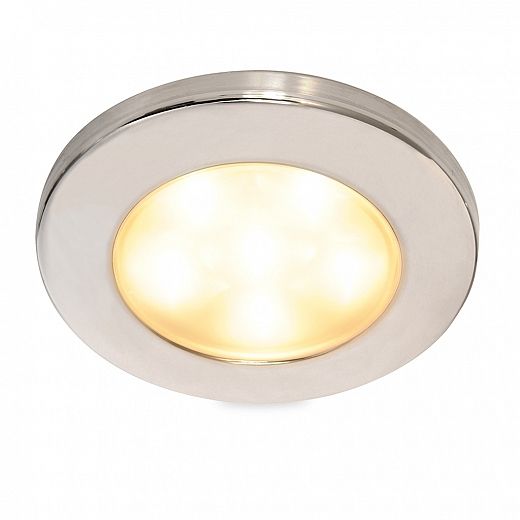

EuroLED<sup>®</sup> 95 Down Lights - Recess Mount - Warm White Light - Polished Stainless Steel Rim

EuroLED® 95 Down Lights - Recess Mount - Warm White Light - Polished Stainless Steel Rim

PART NO: 2JA 980 940-111

Add to favourites

Specifications

Mounting

Recess mount, 72mm hole. Screw mount.

Voltage

Multivolt™ for optimum brightness at input voltages from 10 to 33 volts.

Power Consumption

4W

Protection
Reverse polarity and transient spike circuit protection
Sealed against dust and water ingress.

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable

Compliance
CE CE

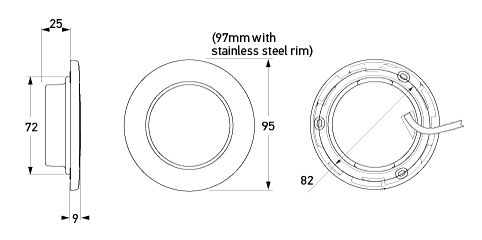

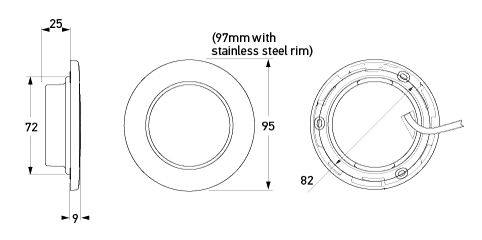

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

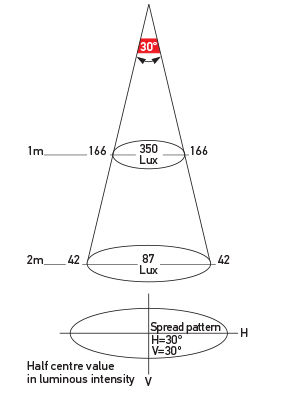

Illumination Chart: White
Illumination Chart: White

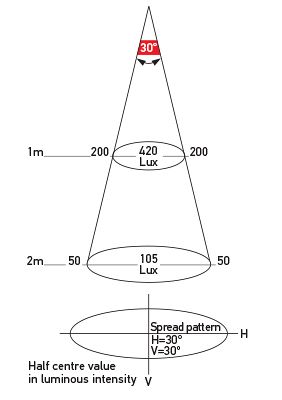

Illumination Chart: Warm White
Illumination Chart: Warm White
