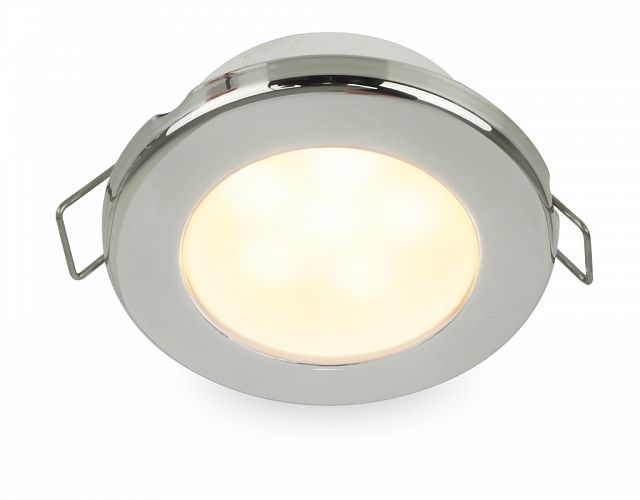

EuroLED® 75 Down Lights - Spring Clip Mount

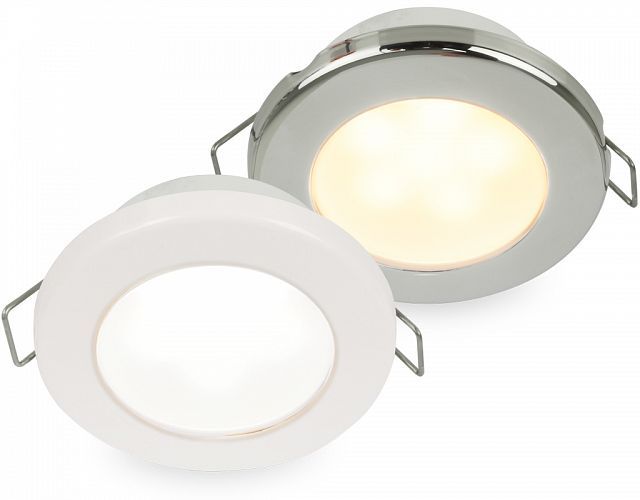

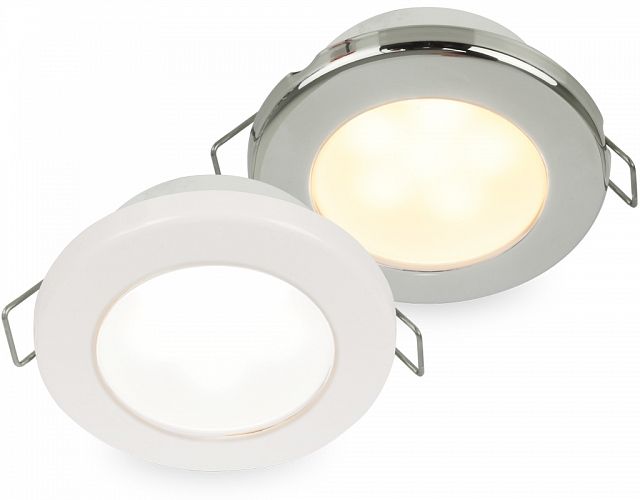

Round LED high intensity downlights offering class leading efficiency and durability. Supplied with white or polished stainless steel rims to suit.

RFCommSafe™ - To view and download more information please click here

To view product designed for the New Zealand market, please click here

Rollover/tap the icons below for further details:

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid<sup>®</sup> lamps are recommended where applicable.

Polycarbonate Lens

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid® lamps are recommended where applicable.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Light intensity is adjusted between 10-100% using a high frequency PWM (pulse width modulation) DC power supply, with adjustable duty cycle control.

Dimmable PWM

Light intensity is adjusted between 10-100% using a high frequency PWM (pulse width modulation) DC power supply, with adjustable duty cycle control.

Made in New Zealand

Options

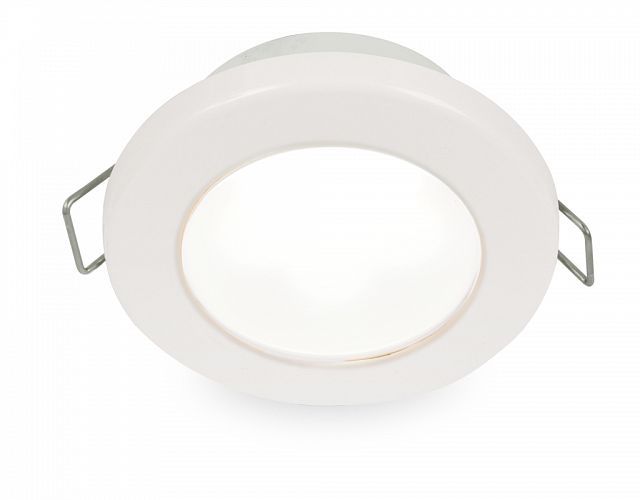

EuroLED® 75 Down Lights - 12 Volt Spring Clip Mount - White Light - White Plastic Rim

EuroLED® 75 Down Lights - 12 Volt Spring Clip Mount - White Light - White Plastic Rim

2JA 958 110-511
EuroLED® 75 Down Lights - 24 Volt Spring Clip Mount - White Light - White Plastic Rim

EuroLED® 75 Down Lights - 24 Volt Spring Clip Mount - White Light - White Plastic Rim

2JA 958 110-611

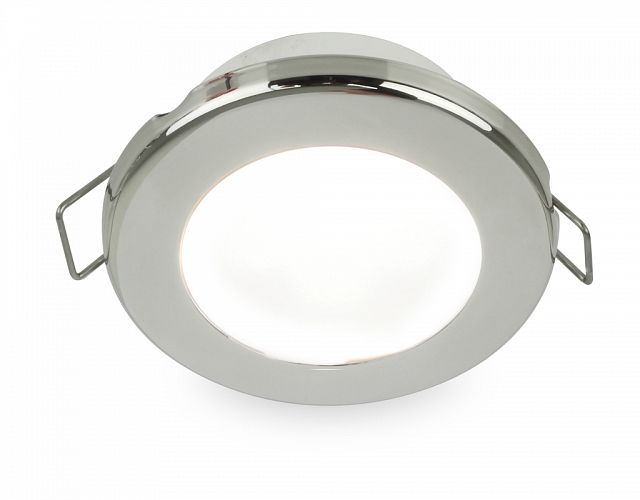

EuroLED® 75 Down Lights - 12 Volt Spring Clip Mount - White Light - Polished Stainless Steel Rim

EuroLED® 75 Down Lights - 12 Volt Spring Clip Mount - White Light - Polished Stainless Steel Rim

2JA 958 110-521

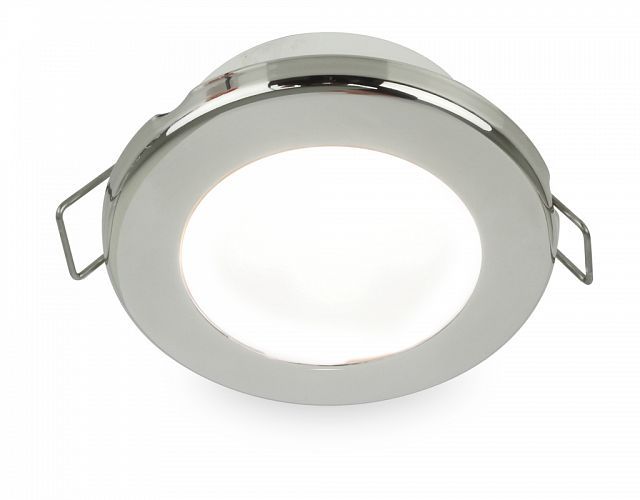

EuroLED® 75 Down Lights - 24 Volt Spring Clip Mount - White Light - Polished Stainless Steel Rim

EuroLED® 75 Down Lights - 24 Volt Spring Clip Mount - White Light - Polished Stainless Steel Rim

2JA 958 110-621

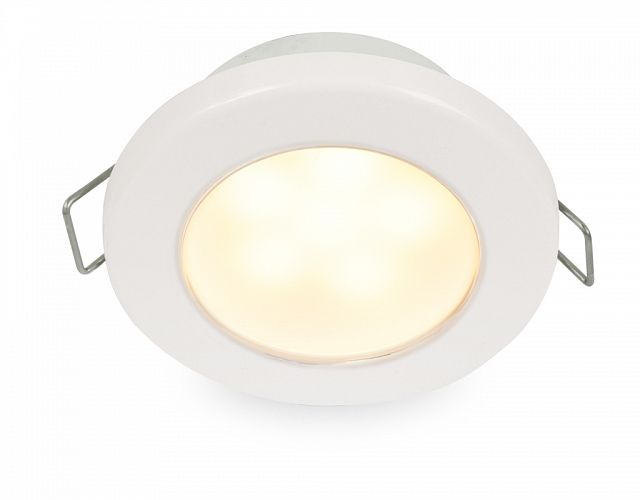

EuroLED® 75 Down Lights - 12 Volt Spring Clip Mount - Warm White - White Plastic Rim

EuroLED® 75 Down Lights - 12 Volt Spring Clip Mount - Warm White - White Plastic Rim

2JA 958 109-511
EuroLED® 75 Down Lights - 24 Volt Spring Clip Mount - Warm White - White Plastic Rim

EuroLED® 75 Down Lights - 24 Volt Spring Clip Mount - Warm White - White Plastic Rim

2JA 958 109-611
EuroLED® 75 Down Lights - 12 Volt Spring Clip Mount - Warm White - Polished Stainless Steel Rim

EuroLED® 75 Down Lights - 12 Volt Spring Clip Mount - Warm White - Polished Stainless Steel Rim

2JA 958 109-521

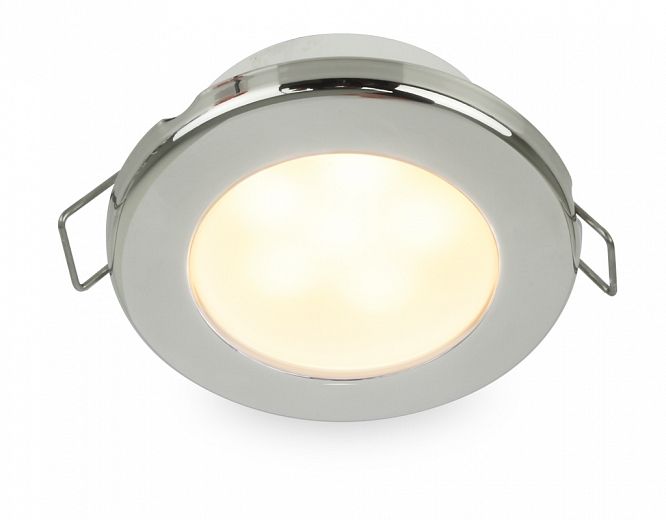

EuroLED® 75 Down Lights - 24 Volt Spring Clip Mount - Warm White - Polished Stainless Steel Rim

EuroLED® 75 Down Lights - 24 Volt Spring Clip Mount - Warm White - Polished Stainless Steel Rim

2JA 958 109-621

Specifications

Mounting

Recess mount, 72mm hole.

Power Consumption

<3W

Protection

Reverse polarity protection
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 120mm of cable

Compliance

CE

CE

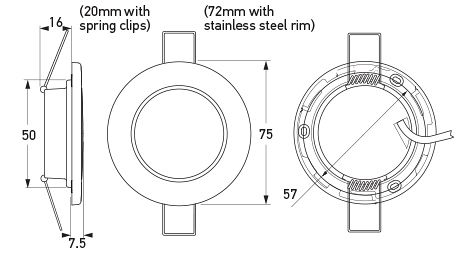

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

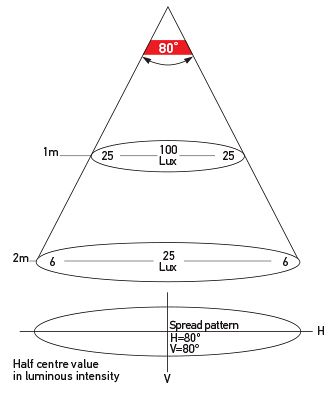

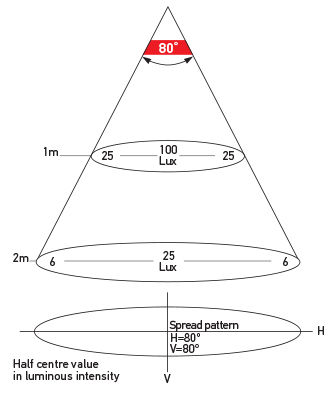

Illumination Chart: White Light
Illumination Chart: White Light
