LED 360° Multi-flash Signal Lamp

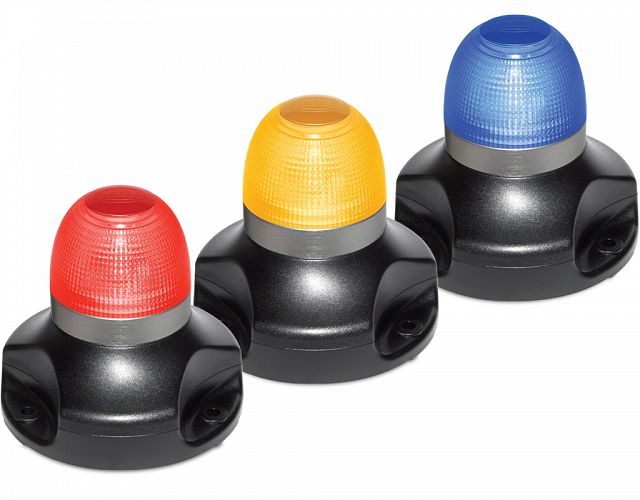

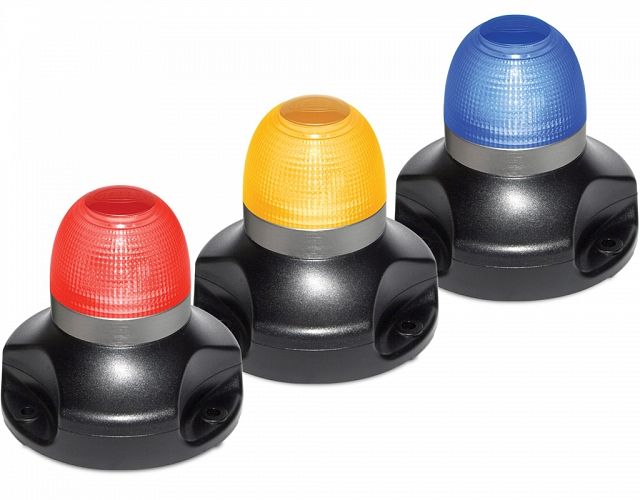

Multi-purpose LED 360º warning lamp with clear Grilamid® lens, available in four signal colours and white. The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison. Optic appears clear until illuminated.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

Multi-flash

The HELLA multi-flash range of warning lamps have 10 programmable flash modes and can be synchronised to flash alternately or in unison.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

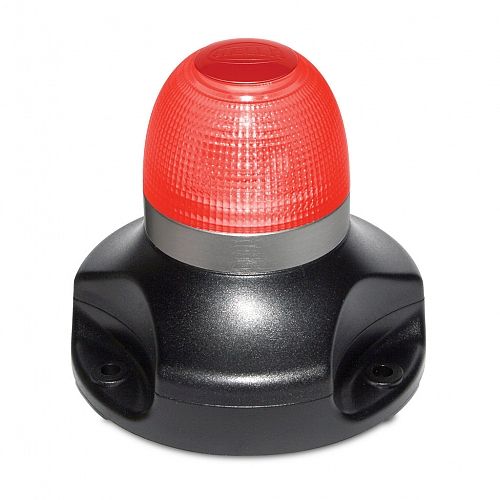

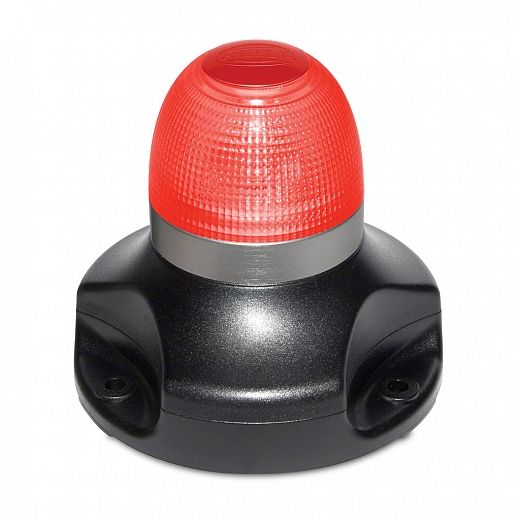

LED 360° Multi-flash Signal Lamp - Red

LED 360° Multi-flash Signal Lamp - Red

98091140

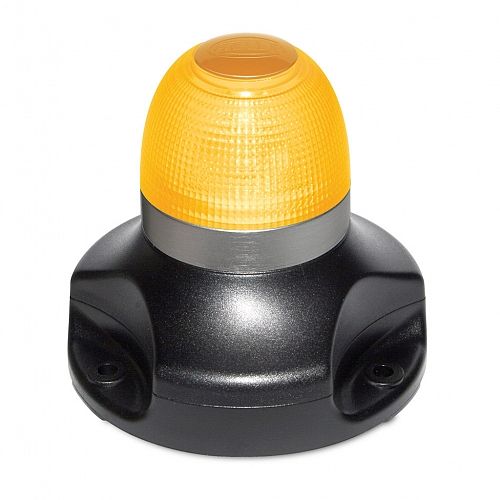

LED 360° Multi-flash Signal Lamp - Amber

LED 360° Multi-flash Signal Lamp - Amber

98091160
LED 360° Multi-flash Signal Lamp - Blue

LED 360° Multi-flash Signal Lamp - Blue

98091170

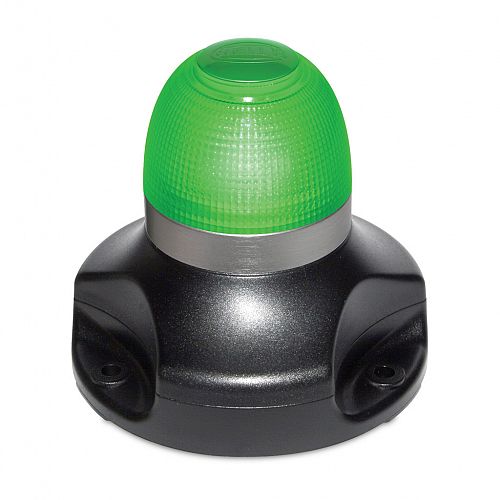

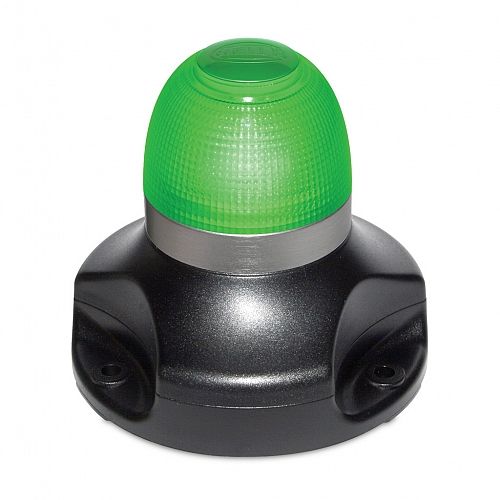

LED 360° Multi-flash Signal Lamp - Green

LED 360° Multi-flash Signal Lamp - Green

98091120

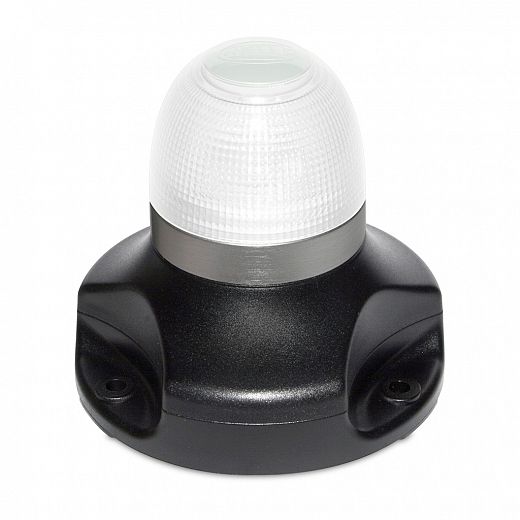

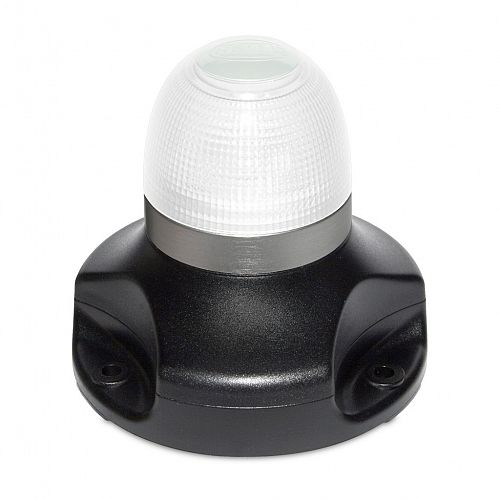

LED 360° Multi-flash Signal Lamp - White

LED 360° Multi-flash Signal Lamp - White

98091100

Specifications

Optics

Optic appears clear until illuminated.

Mounting

Upright mounting with three point mount.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

Less than 5W (less in flashing modes).

Protection

Reverse polarity and voltage spike protection.
IP 67 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Lens Material

Grilamid®

Compliance

EMC e4 03 1679

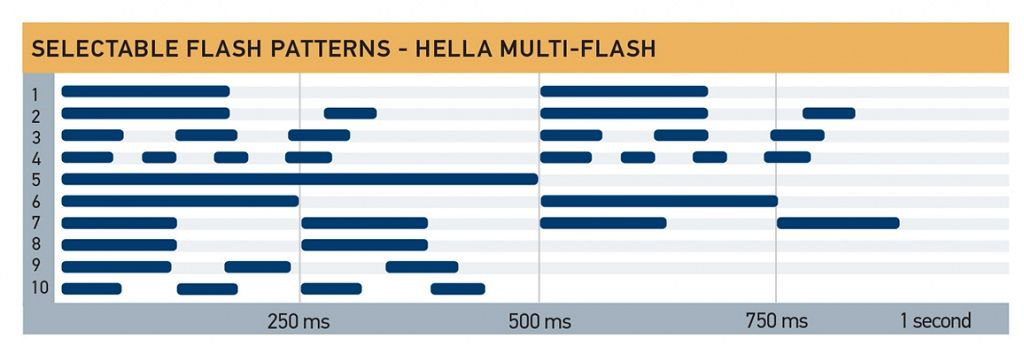

Flashing Options

Steady state Lamp operates as a continuous ON signal
Independent flash Lamp operates from an external flashing system
Flash state Lamp operates in the flash mode preselected by the user
Blitz state Lamp operates in a burst of quad flashes (pattern 4)
The blitz mode overrides the other operating modes and is triggered by switching the blue cable to negative (-).

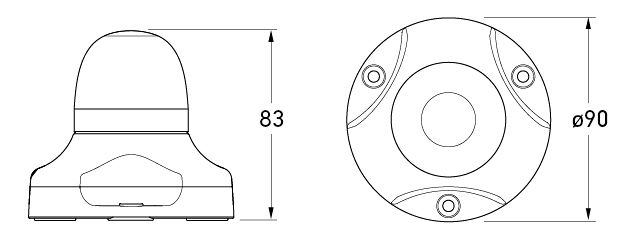

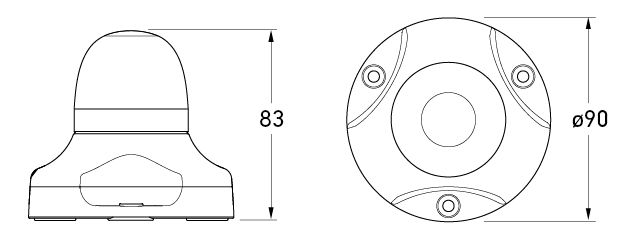

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  980911xx Instruction Sheet.pdf 310.36 KB
