HELLA

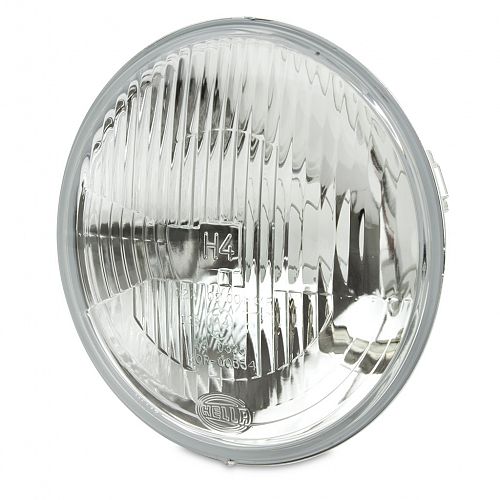

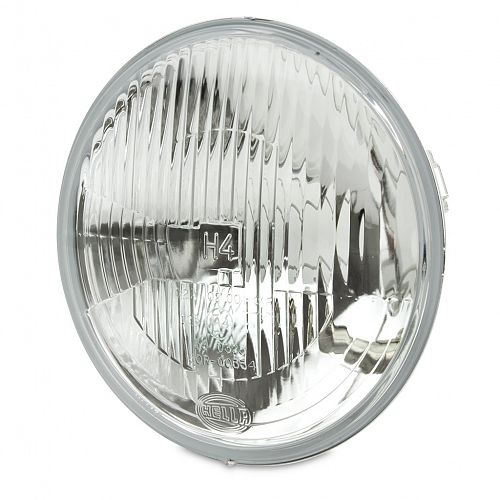

178mm H4 Halogen Headlamp - High/Low Beam & Front Position Insert

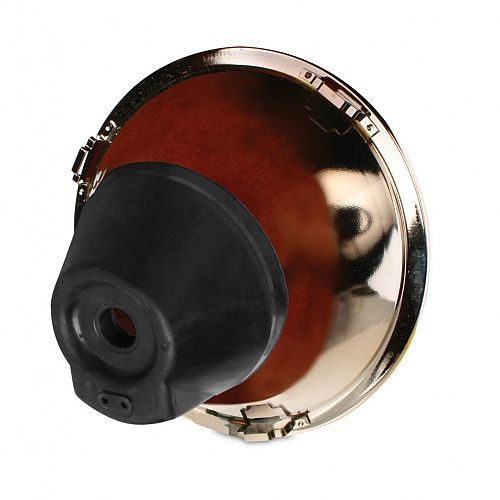

Semi-sealed headlamp with front position lamp bulb holder (includes P/N HL124 bulb) and sealing boot.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Options

178mm H4 Halogen Headlamp - High/Low Beam & Front Position Insert

178mm H4 Halogen Headlamp - High/Low Beam & Front Position Insert

1058

Specifications

Bulbs to Suit

  12V 24V
Headlamp XD1260/55 XD2475/70
Front Position HL124 HL244

Compliance

E4 53

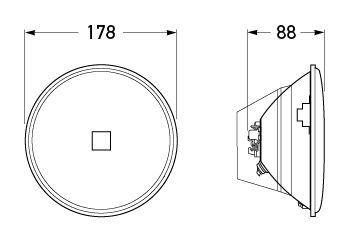

Outline

All dimensions in mm.
All dimensions in mm.
