HELLA

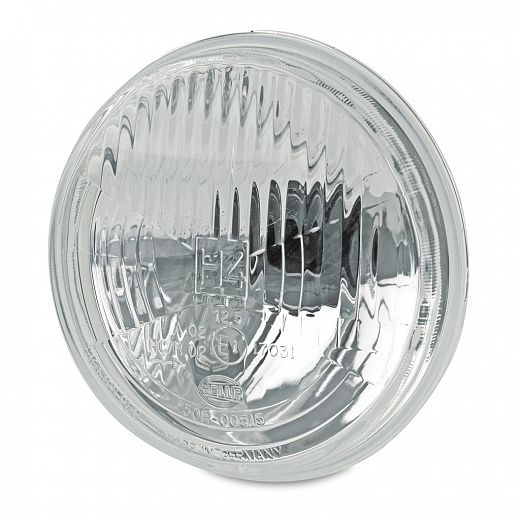

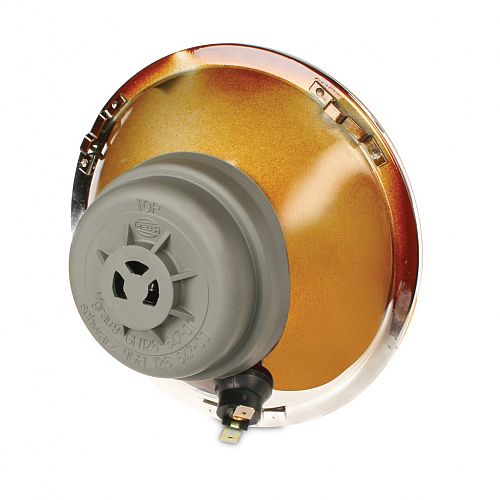

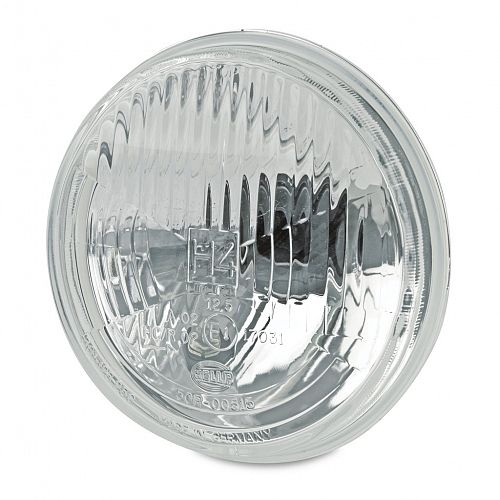

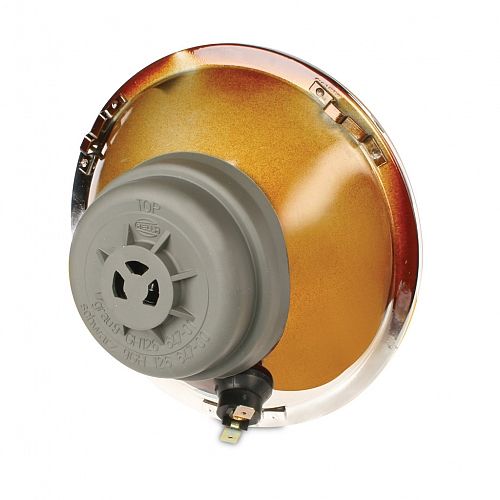

146mm H4 Halogen Headlamp - High/Low Beam & Front Position Insert

Semi-sealed headlamp with front position lamp bulb holder (includes P/N HL124 bulb) and sealing boot. Suitable for dual headlamp systems.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Options

146mm H4 Halogen Headlamp - High/Low Beam & Front Position Insert

146mm H4 Halogen Headlamp - High/Low Beam & Front Position Insert

1055

Specifications

Bulbs to Suit

  12V 24V
Headlamp: XD1260/55 XD2475/70
Front position: HL124 HL244

Spare Parts

13839700 Front position bulb holder
9GH 126 647-011 Sealing boot

Compliance

E1 17031

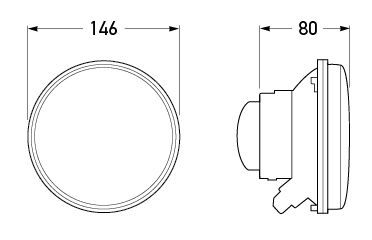

Outline

All dimensions in mm.
All dimensions in mm.
