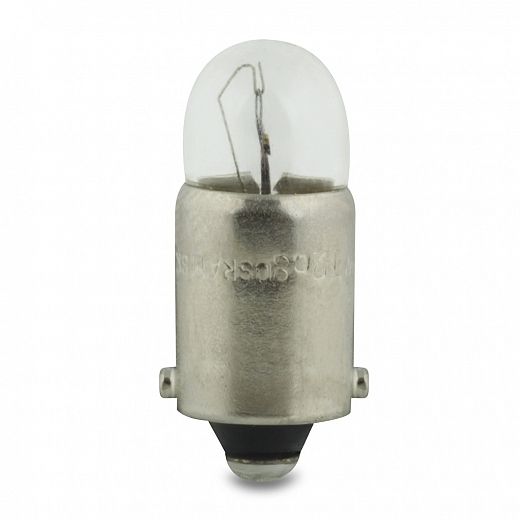

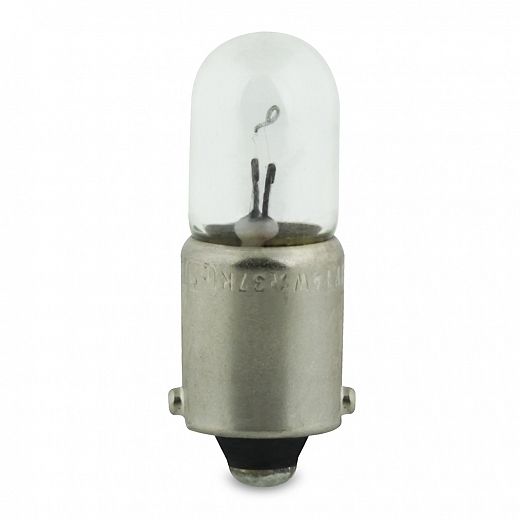

Bayonet Bulbs - Single Filament - Single Contact BA9s

Bayonet pilot / dash bulbs. Single filament, single contact.

Many bulb applications have multiple options in terms of colour, brightness & duty.

To find a HELLA reseller near you, click here.

At HELLA, we have been designing, developing and manufacturing automotive lighting solutions since the motorcar was first produced. Today HELLA automotive bulbs are renowned for their uncompromising adherence to the highest quality and safety standards.

Try HELLA's free online tool, the HELLA Bulb Configurator, which makes it easy to select the correct bulbs for your vehicle.



HELLA Bulb Configurator



Rollover/tap the icons below for further details:

Options

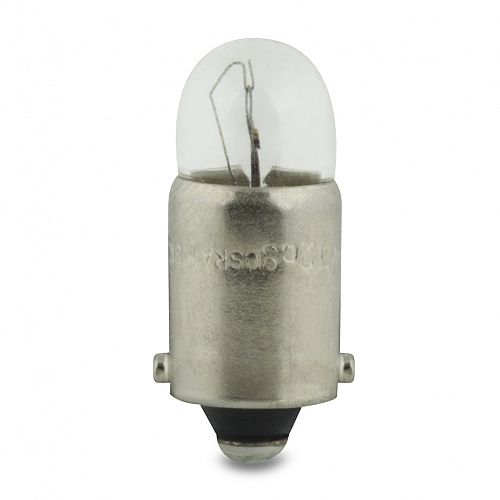

Bayonet Bulb 12V 2W BA9s

PART NO: 8GP 002 068-123
Legacy PN: H122

Bayonet Bulb 12V 3W BA9s

PART NO: 8GP 002 068-133
Legacy PN: H123

Bayonet Bulb 12V 3W BA9s - Bulk Pack 10

PART NO: 8GP 002 068-137
Legacy PN: H123BULK

Bayonet Bulb 12V 4W BA9s

PART NO: 8GP 002 067-124
Legacy PN: HL124

Bayonet Bulb 12V 4W BA9s - Bulk Pack 10

PART NO: 8GP 002 067-126
Legacy PN: HL124BULK

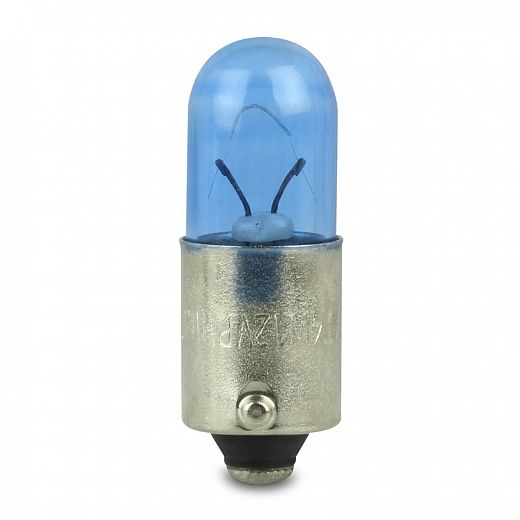

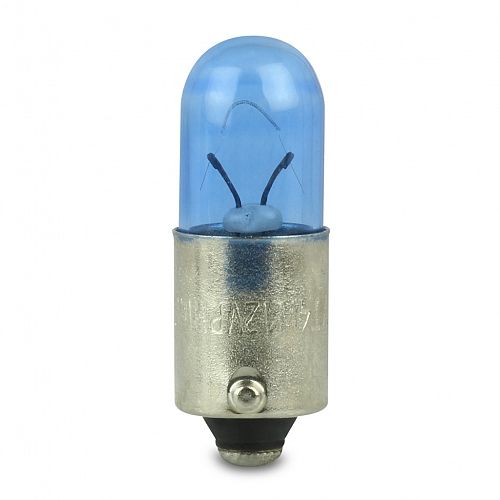

Bayonet Bulb 12V 4W BA9s - Blue Vision

PART NO: 8GP 002 067-832
Legacy PN: HL124BV

Bayonet Bulb 12V 6W BA9s

PART NO: 8GP 007 676-124
Legacy PN: H126

Bayonet Bulb 12V 6W BA9s - Bulk Pack 10

PART NO: 8GP 007 676-127
Legacy PN: H126BULK

Bayonet Bulb 12V 6W BA9s - Plus 60%

PART NO: 8GA 007 676-132
Legacy PN: HL126X

Bayonet Bulb 24V 2W BA9s

PART NO: 8GP 002 068-244
Legacy PN: H242

Bayonet Bulb 24V 2W BA9s - Bulk Pack 10

PART NO: 8GP 002 068-247
Legacy PN: H242BULK

Bayonet Bulb 24V 4W BA9s

PART NO: 8GP 002 067-245
Legacy PN: HL244

Bayonet Bulb 24V 4W BA9s - Bulk Pack 10

PART NO: 8GP 002 067-248
Legacy PN: HL244BULK

Bayonet Bulb 24V 4W BA9s - TS Pro

PART NO: 8GP 002 067-263
Legacy PN: HL244TS

Bayonet Bulb 24V 7W BA9s

PART NO: 8GP 008 285-002
Legacy PN: HL247

Specifications

Voltage

12V and 24V respectively

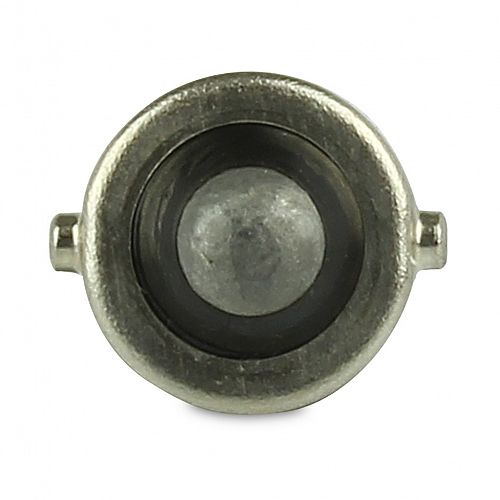

Base

BA9s

ADR 51/00 Category

Part Number ADR 51/00 Category
P/N HL124 T4W
P/N HL124BV T4W
P/N HL244 T4W
P/N HL244-TS T4W

Note

Bulk bulbs (other than Halogen) are sold in packs of 10.

Outline

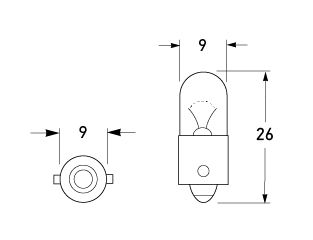

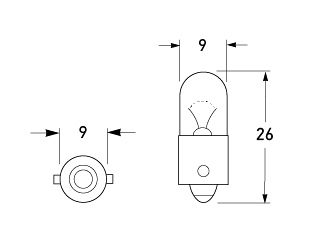

P/N H126, HL126X, HL124, HL124BV and HL244 - All dimensions in mm.
P/N H126, HL126X, HL124, HL124BV and HL244 - All dimensions in mm.

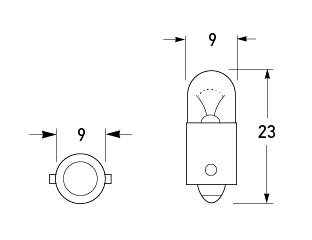

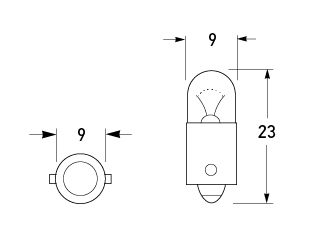

P/N H122, H123 and H242 - All dimensions in mm.
P/N H122, H123 and H242 - All dimensions in mm.
