HELLA

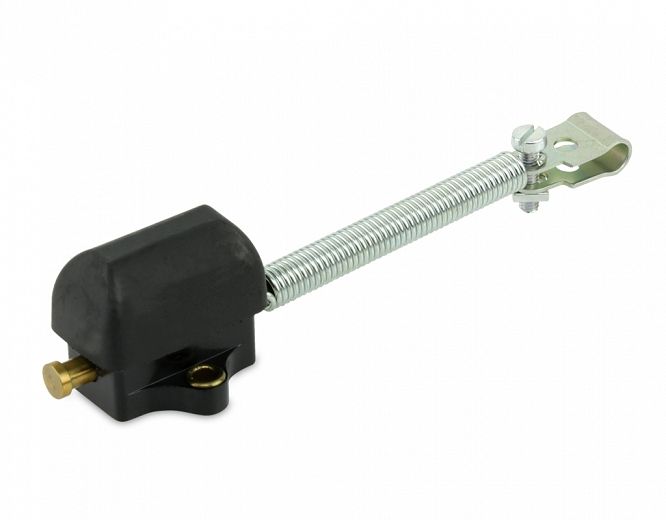

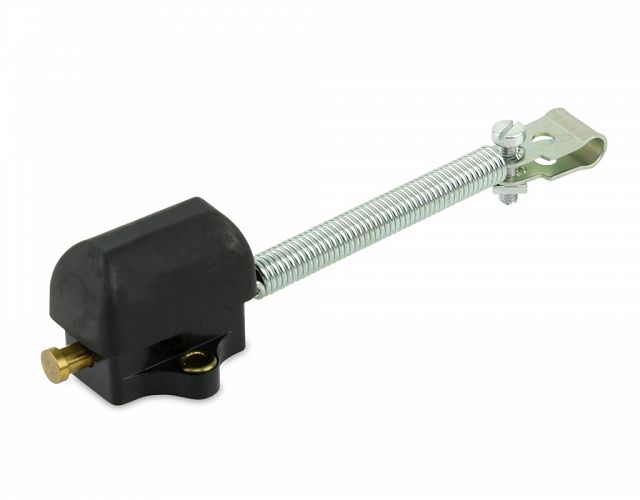

Stop Lamp Switch Off-On Spring Pull

Normally open, contacts are closed when tension is applied to the spring. Complete with splash proof rubber cap. Brake linkage clamp 6mm diameter.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Stop Lamp Switch Spring Pull

Stop Lamp Switch Spring Pull

4560

Specifications

Maximum load

12V 10A
24V 5A

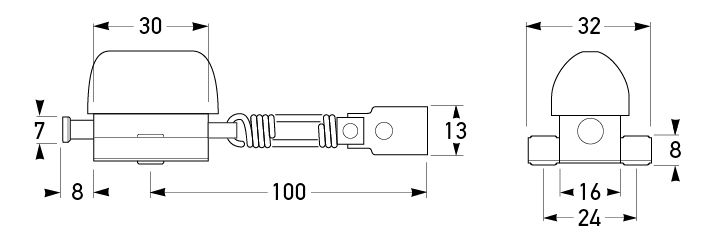

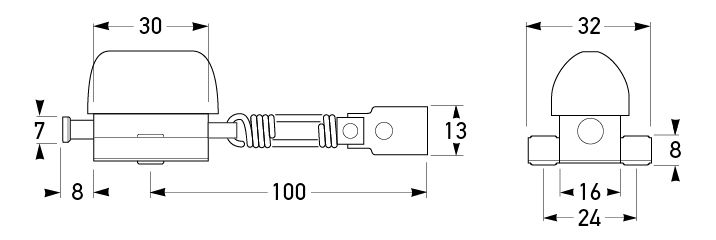

Outline

All dimensions in mm.
All dimensions in mm.
