HELLA

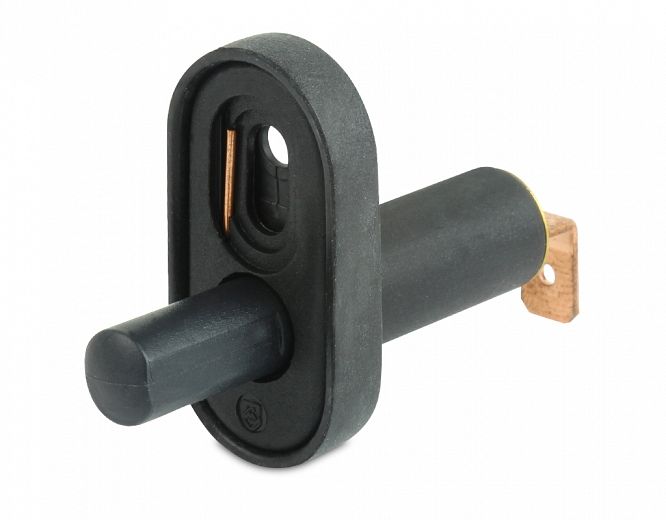

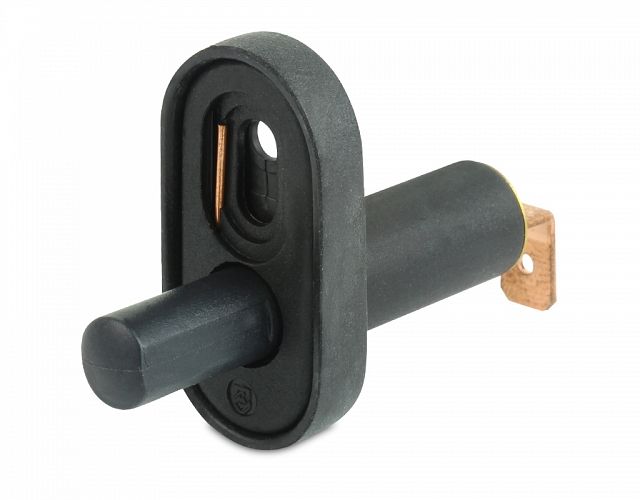

Door Contact Switch On-Off Plastic - Normally Closed

Switch closes circuit if door is opened. Corrosion proof black plastic. Rubber seal. Push-on terminal.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

Door Contact Switch - Plastic

Door Contact Switch - Plastic

4553

Specifications

Mounting

12mm diameter opening and screw.

Maximum load

12V 3.5A

Note

Plunger automatically adjusts to door gap on initial operation.

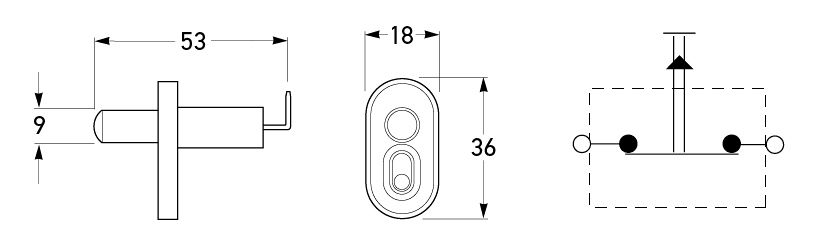

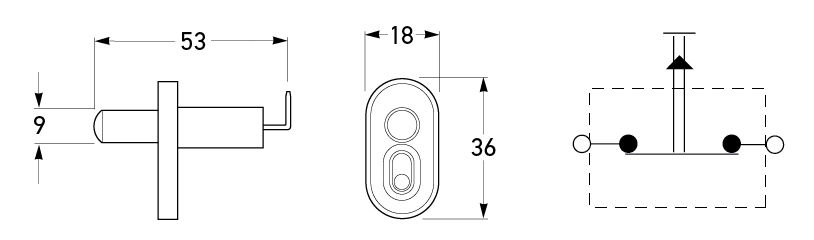

Outline

All dimensions in mm.
All dimensions in mm.
