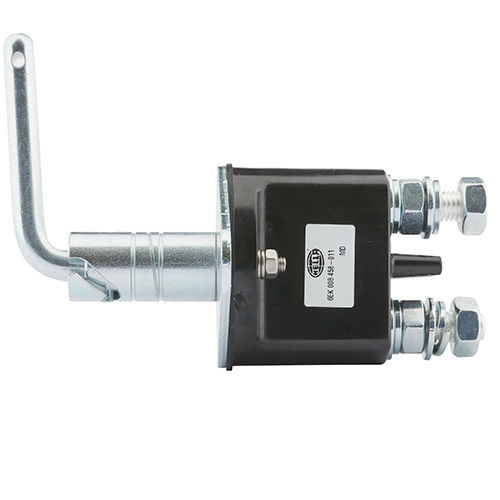

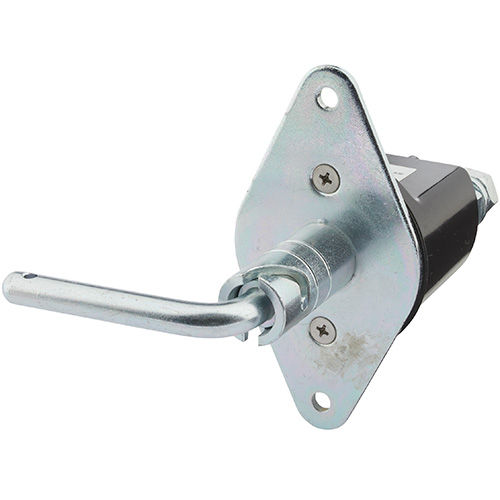

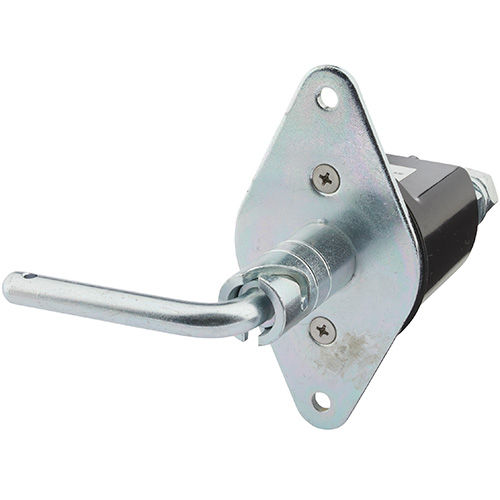

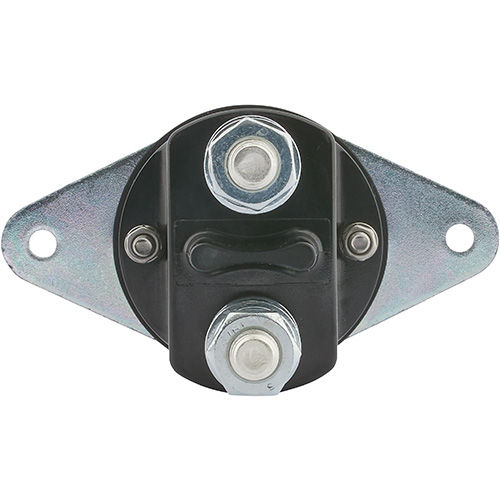

Battery Master Switch Off-On Heavy Duty (High Amperage), Metal Key
Durable heavy duty metal Battery Master Switch and Key, suited for higher amperage uses such as trucks, buses and earth moving equipment. Switch is made in Italy.
To find a HELLA reseller near you, click here.
Rollover/tap the icons below for further details:
Options
Battery Master Switch Off-On Heavy Duty (High Amperage), Metal Key
PART NO: 6EK 008 458-011
Specifications
Mounting |
22mm diameter opening. Up to 6mmØ bolts |
||
Maximum load |
|
||
Maximum continuous load |
250A at max. ambient temp of 60°C with 70mm2 lead connected with ring-type terminals |
||
Termination |
2x 10mm studs (Max Torque 22Nm) |
||
Protection |
|
||
Note |
Switch not designed for Marine applications. Recommended to be mounted in dry area. |

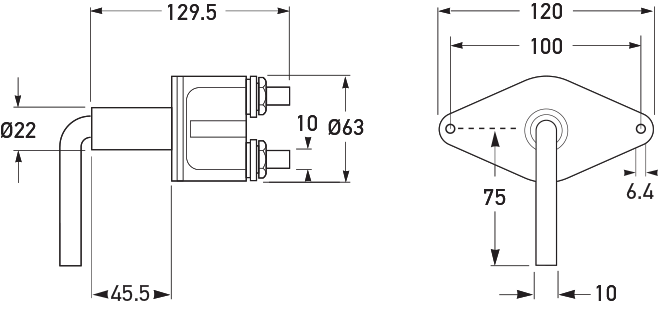

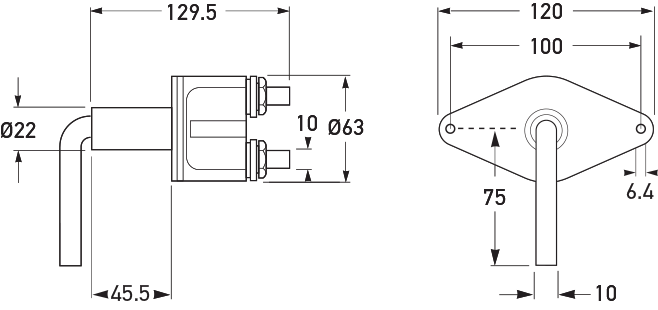

Outline
All dimensions in mm
Documents
| Document | File Name | File Size |
|---|---|---|
| 6EK 008 458-011 HELLA Battery Master Switch Product Release_Web.pdf | 278.49 KB |
Application: Battery Switch
Function: Off-On
Type: Rotary
Function: Off-On
Type: Rotary
