DuraLED® Combi-S Stop/Rear Position/Rear Direction Indicator/Reversing Lamp/Night Light and DT Connector

The DuraLED® Combi-S Lamp features all the specs of the popular 2380 in a new slim design with a depth of only 25mm. The lens is made of Grilamid® the Swiss Made high performance polyamide. This superior performance material offers unmatched resistance to impact, long term UV exposure and commonly used chemicals.

HELLA’s ‘Fit and Forget’ by Design Philosophy ensures the service life of this lamp is aimed to outlast the life of your vehicle. The new slim DuraLED® Combi-S is covered by our Lifetime Warranty.

The now iconic DuraLED® range revolutionised safety of the New Zealand and Australian transport fleets. First conceived and field trialled by HELLA New Zealand in 1998, our radical pursuit to create a range of ‘Fit and Forget’, highly visible LED Marker and Signal Lamps, permanently lowered the cost of ownership for our fleets and made our roads safer.

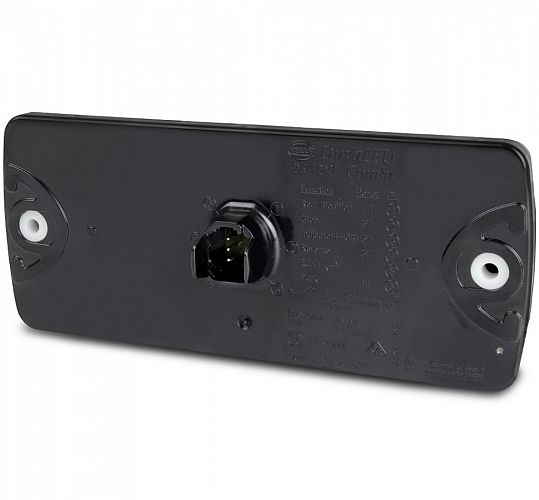

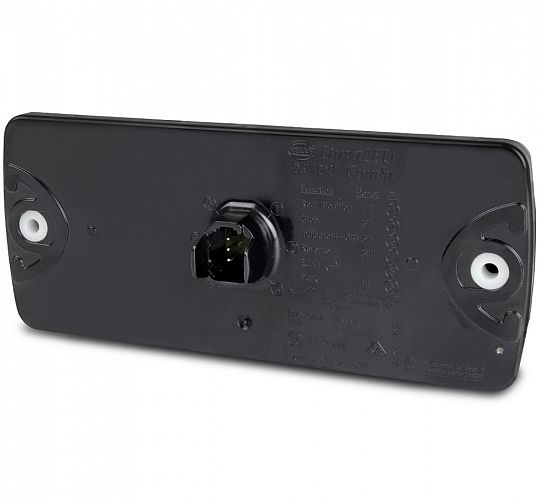

P/N 2383-DT24VCSfeatures Night Light and a DT Connector for easy installation

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Hella Compatibility Solution HCS
Please click here for further information.

Features RFCommSafe™
To view and download more information please click here

To find a HELLA reseller near you, click here.

    DuraLED® Lifetime Warranty
All HELLA DuraLED® products carry a Lifetime Warranty.
Note: Lifetime means the economic life of the vehicle these products were first installed on.





Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

HELLA Compatibility Solution (HCS)

Available with HCS. For information please refer to HELLA Compatibility Solutions under the Technology / Marker and Signal Lamps section.

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

Ultra Wide Visibility Optics

These lamps far exceed the minimum legal brightness requirement, and are much more noticeable to following drivers particularly as the vehicle in front turns and the stop or turn signal is viewed from an angle.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

Made in New Zealand

Options

DuraLED<sup>®</sup> Combi-S with Reverse Lamp - DT Connector - Night Light and HCS - 24 Volt

DuraLED® Combi-S with Reverse Lamp - DT Connector - Night Light and HCS - 24 Volt

2383-DT24VCS

Specifications

Optics

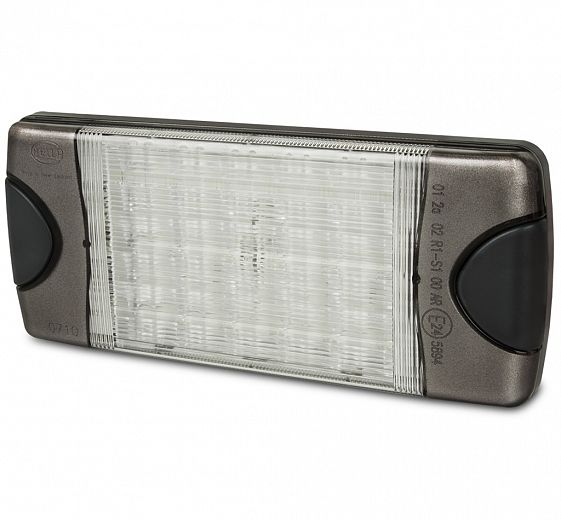

Optic appears clear until illuminated

Mounting

Two hole surface mount with mounting bushes supplied.
Suitable for horizontal mounting.

Voltage

24V DC

Power Consumption

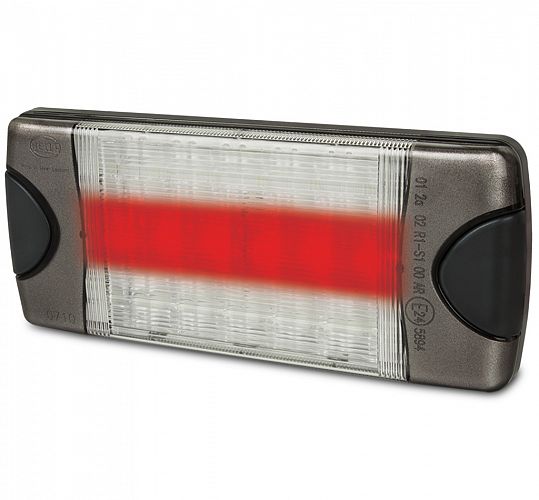

Stop: 3W

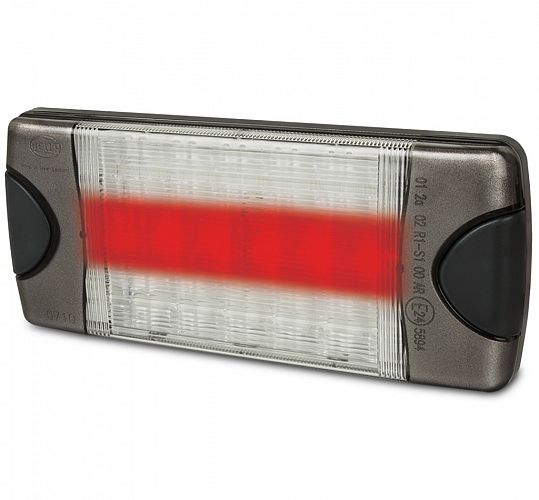

Rear position: 1W

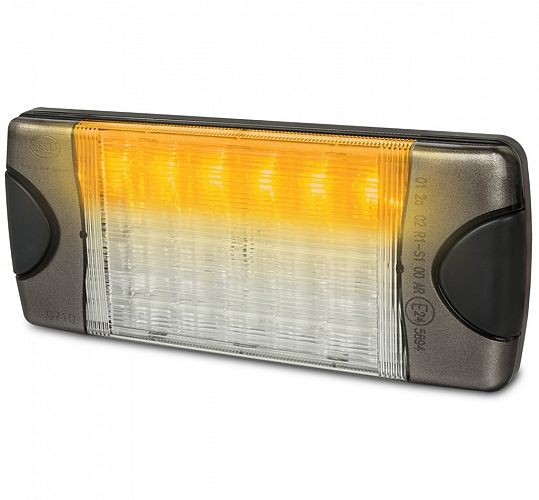

Rear direction indicator: 3W

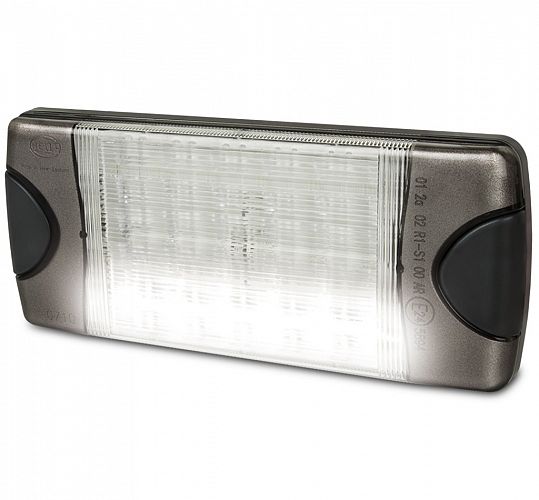

Reverse: 3W
Night Light: 1W

Protection

Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K7      (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Accessory

4963-P 6 pole DT plug, wedge and 6 contacts (not included with lamp).

Lens Material

Grilamid®

Compliance

E24 5894 ECE R6/01 ECE R7/02 ECE R23/00
ISO 13207-1 ECE R10 CE

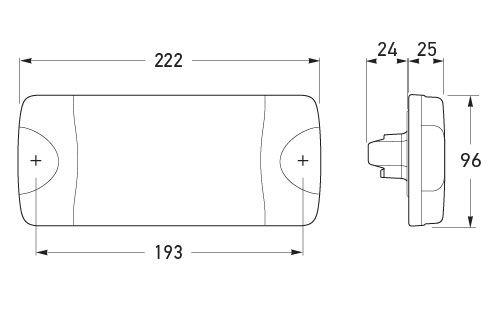

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2383-DT24VCS-Instruction Sheet.pdf 545.20 KB
