HELLA

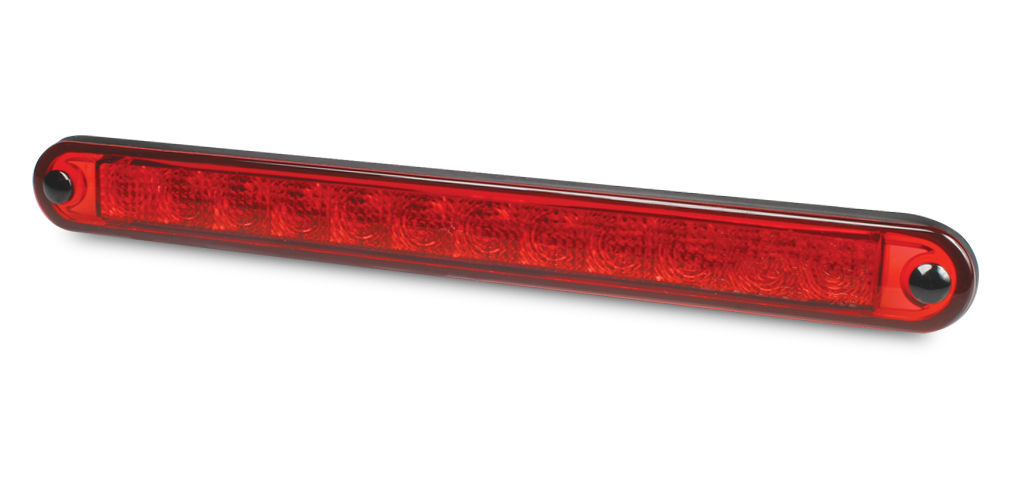

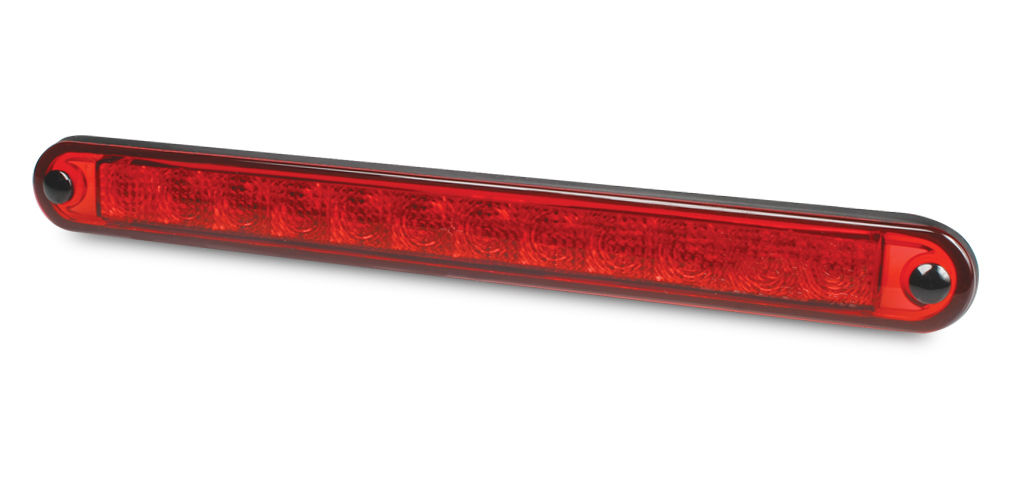

LED Centre High Mounted Stop Lamp (CHMSL) - Strip

Strip LED lamp designed for rear spoiler applications.
Clear lens version, optic appears clear until illuminated.

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Centre High Mount Stop Lamp - Red Lens 12V

LED Centre High Mount Stop Lamp - Red Lens 12V

5243
LED Centre High Mount Stop Lamp - Red Lens 24V

LED Centre High Mount Stop Lamp - Red Lens 24V

5243-24V
LED Centre High Mount Stop Lamp - Clear Lens 12V

LED Centre High Mount Stop Lamp - Clear Lens 12V

5243-CLEAR
LED Centre High Mount Stop Lamp - Clear Lens 24V

LED Centre High Mount Stop Lamp - Clear Lens 24V

5243-24VCLEAR

Specifications

Optics

In clear lens versions the optic appears clear until illuminated.

Mounting

Two hole recess mount. Suitable for horizontal or vertical mounting.

Power Consumption

2W

Protection

Reverse polarity protection.
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of multi-core cable.

Spare Part

9.5243.05 Gasket

Compliance

ADR 49/00: Cat S3 E4 02 7547 ECE R7/02

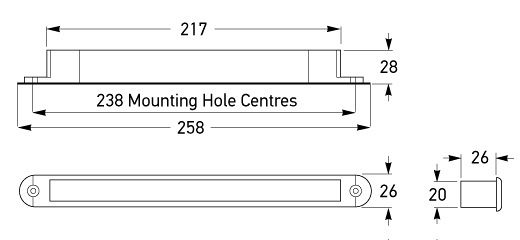

Outline

All dimensions in mm.
All dimensions in mm.

Top
