HELLA

FMS LED Work Lamp – Wide Spread Beam

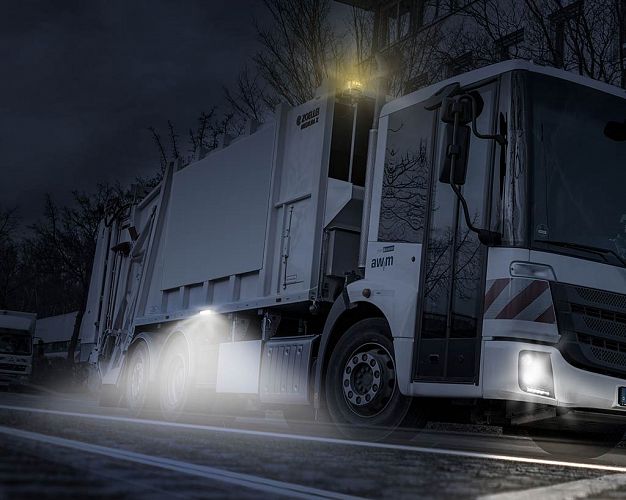

HELLA introduces the FMS low profile and powerful LED work lamps, purpose designed to integrate discretely into tight spaces and exterior recesses. With a protrusion of only 38mm, the FMS is sleek and unobtrusive, while ensuring great ground illumination and an evenly lit work area. This feature is highly advantageous for municipal and emergency vehicles, as well as for heavy equipment, where a lot of work is done around the perimeter of the vehicle.

Two light intensities are offered: The FMS1200 with 1200 lumens; and the FMS2500, with a powerful 2500 lumens of even, close-range illumination directly underneath the lamp. HELLA LED technology is the answer for energy efficient, completely sealed, shock and vibration resistant lighting.

  • Floodlight for surface mounting
  • Low profile design
  • Close-range illumination
  • Energy efficient and durable LED technology
  • Homogeneous light distribution

Rollover/tap the icons below for further details:

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

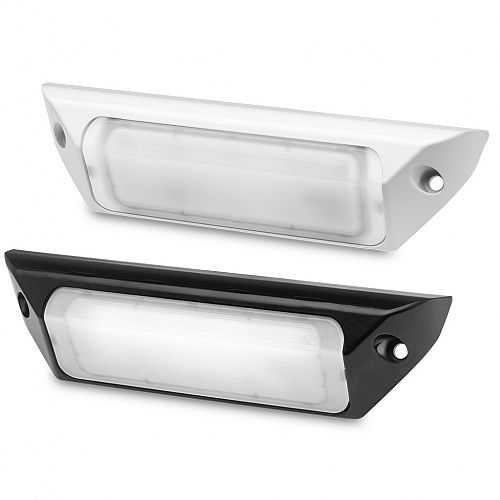

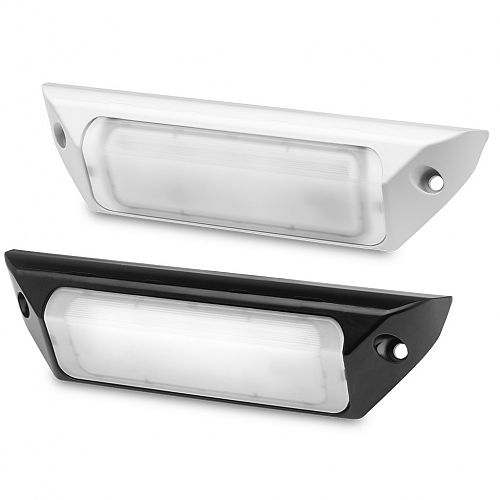

Options

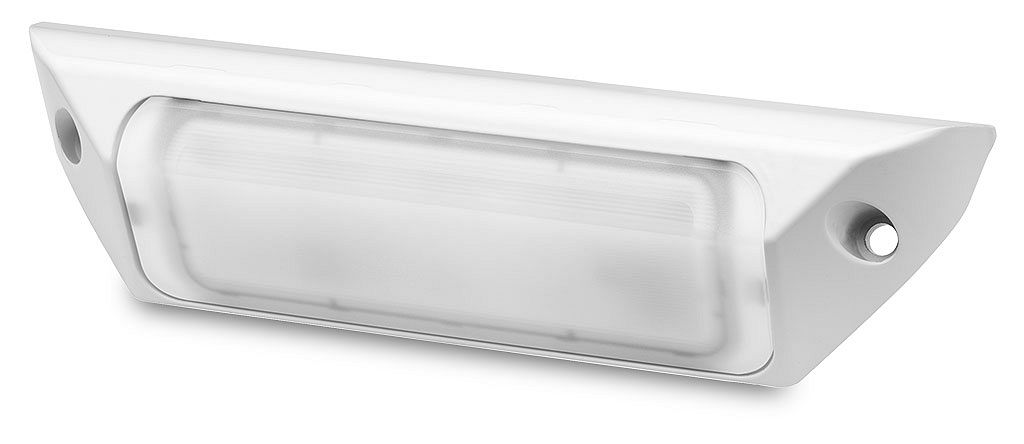

LED Work Lamp Spread Beam FMS 1200 White

PART NO: 1GB 996 098-501

LED Work Lamp Spread Beam FMS 2500 White

PART NO: 1GB 996 098-511

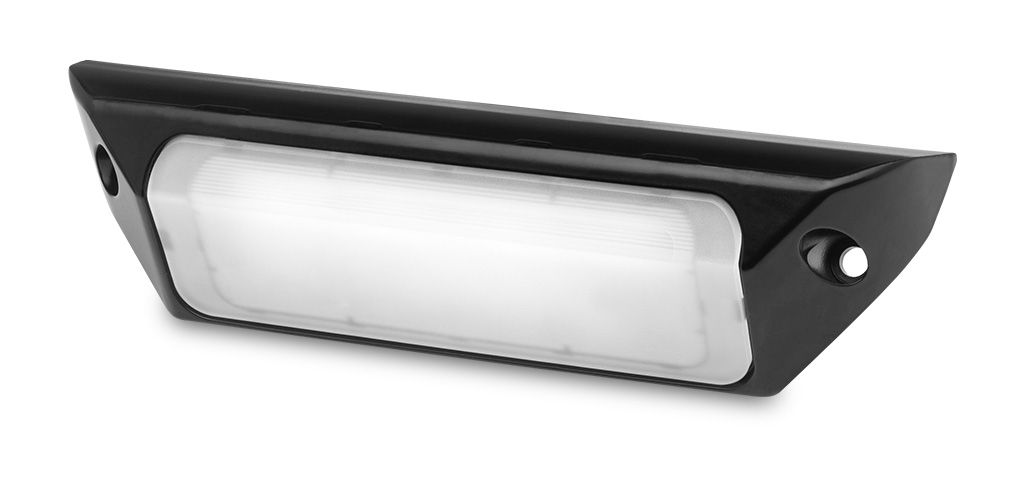

LED Work Lamp Spread Beam FMS 1200 Black

PART NO: 1GB 996 098-001

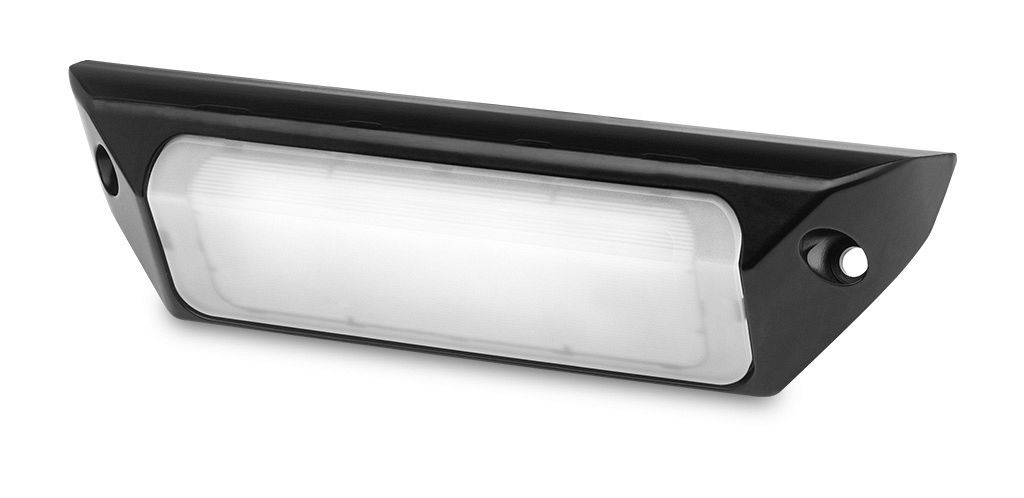

LED Work Lamp Spread Beam FMS 2500 Black

PART NO: 1GB 996 098-011

Specifications

Mounting

Surface mount

Housing Material

Die-cast aluminium, CoroSafe coating

Power Consumption

FMS1200: 14W
FMS2500: 28W

Lumen

FMS1200: 1200 lumen
FMS2500: 2500 lumen

Protection

IP 6K8 (Protection against dust and prolonged water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 500mm cable

Voltage

Multivolt™ 12/24V DC

Color Temperature

6500K (White)

Approvals

E12 0108 (FMS1200) 0109 (FMS2500) ECE-R10

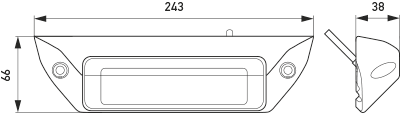

Outline

Light Output

FMS 1200 lumen wide spread deck lamp
FMS 1200 lumen wide spread deck lamp
FMS 2500 lumen wide spread deck lamp
FMS 2500 lumen wide spread deck lamp

Documents

Document File Name File Size
  FMS Instruction Sheet.pdf 1.13 MB
