HELLA

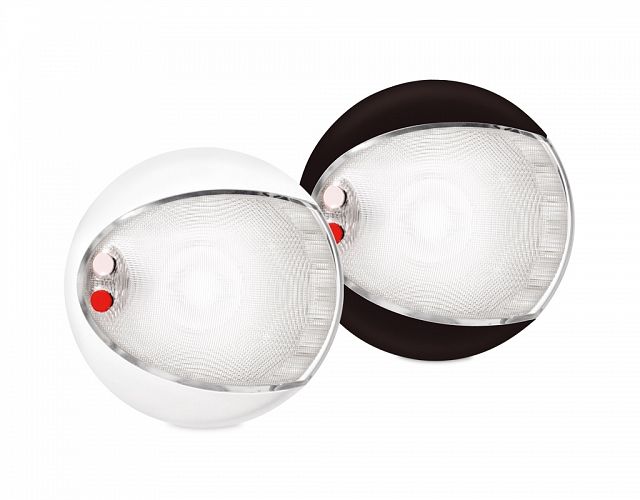

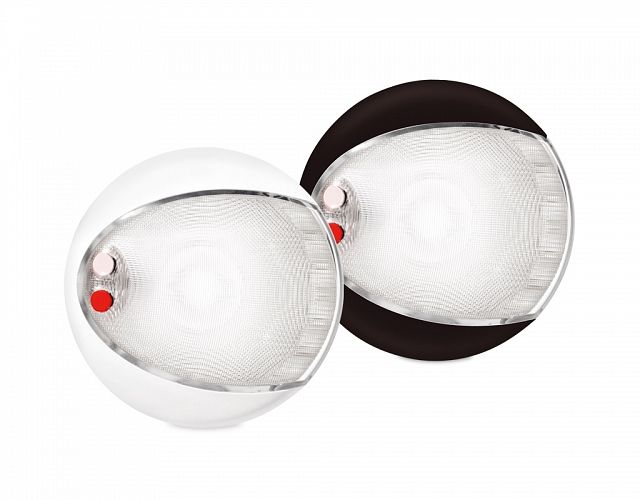

EuroLED® White/Red Touch Lamp – Dual Colour

Easy lighting control
Touch white or red pads for on/off, hold finger to cycle through dimming levels. Can also be remotely operated from multiple points with ‘off the shelf’ ON/OFF/ON momentary switches. Holding one of the external switches for two seconds will synchronise the lamps to the same dimming level. Light levels are ‘remembered’ by the lamps circuitry, even when a vessel’s batteries are turned off. The lamp will always turn on at the colour intensity previously set, regardless of power interruption.

Glare diffusion without light loss
Advanced HELLA lens technology provides safe, smooth and uniform light pattern, without glare, eye strain or discomfort.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid<sup>®</sup> lamps are recommended where applicable.

Polycarbonate Lens

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid® lamps are recommended where applicable.

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

GGVSEB/ADR Regulation

GGVSEB (previously GGVS) stands for the German regulation on carriage of dangerous goods by road, rail and inland waterway.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is controlled through the lamp’s own internal circuitry via in-built buttons, an external DC power source and a standard switch. See specific lamp instructions for further information.

Dimmable Internal Dimmer

Light intensity is controlled through the lamp’s own internal circuitry via in-built buttons, an external DC power source and a standard switch. See specific lamp instructions for further information.

Made in New Zealand

Options

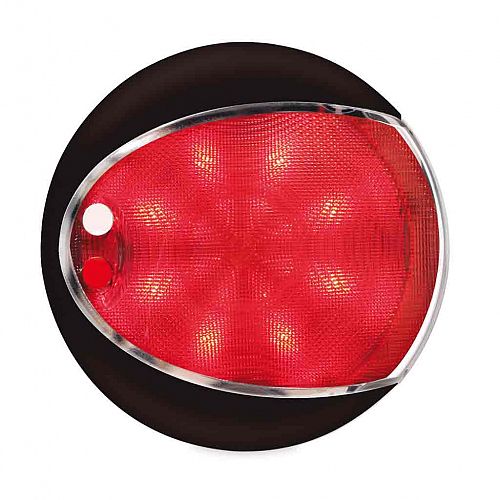

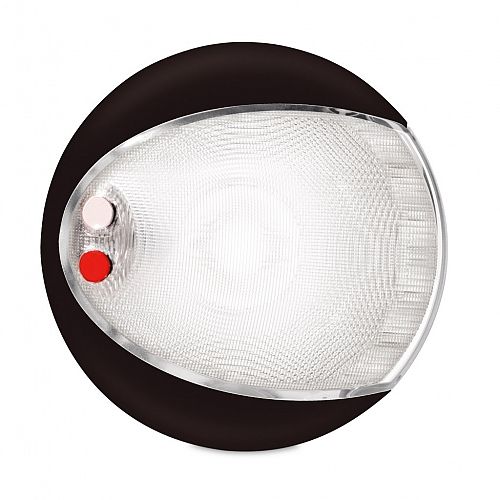

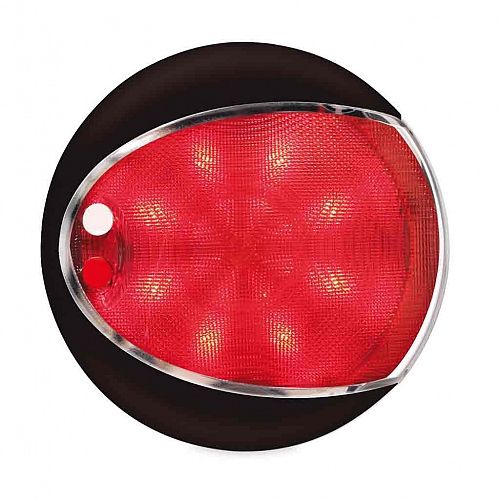

EuroLED<sup>®</sup> White/Red Touch Lamp - Black Shroud

EuroLED® White/Red Touch Lamp - Black Shroud

2JA 959 950-011

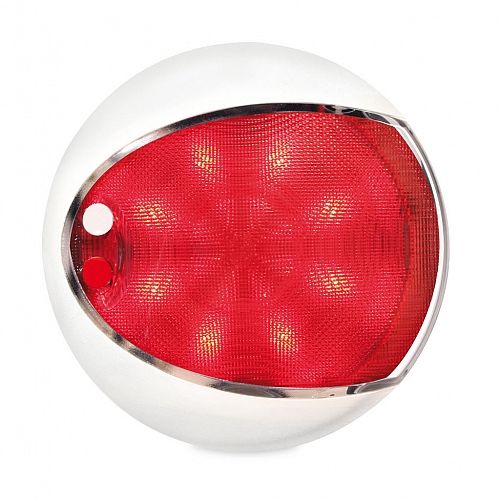

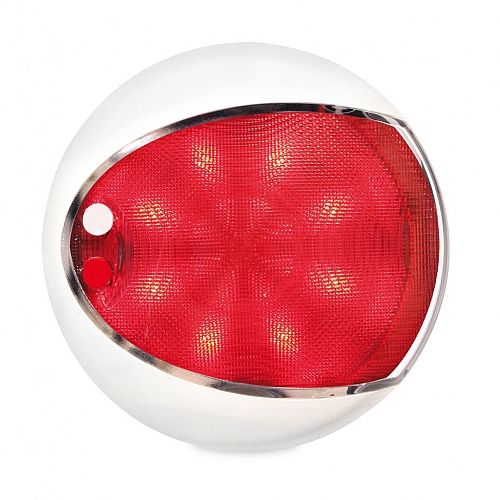

EuroLED<sup>®</sup> White/Red Touch Lamp - White Shroud

EuroLED® White/Red Touch Lamp - White Shroud

2JA 959 950-021

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

White: 4W
Red: 1.5W

Protection

Reverse polarity and transient spike circuit protection.
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Accessories

95995200 Mounting spacer - Black
95995201 Mounting spacer - White

Compliance

E4 10R 04-2894 CE   CE

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

Illumination chart
Illumination chart

Documents

Document File Name File Size
  2JA 959 950-0XX - Instruction Sheet.pdf 379.13 KB
