HELLA

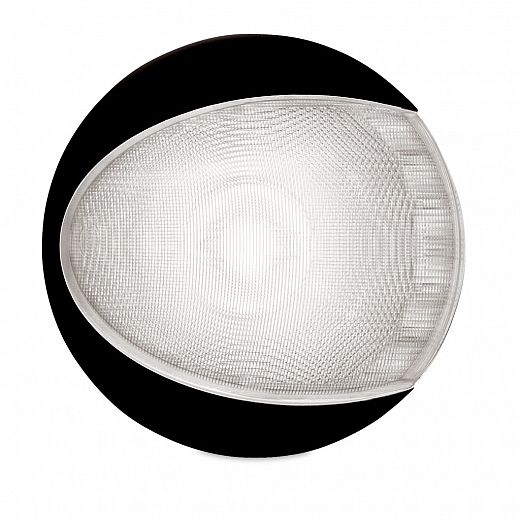

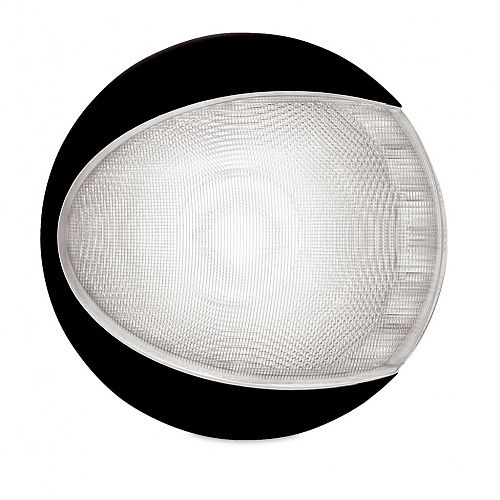

EuroLED® White Lamp

Includes black and white shroud. No switching or dimming. Clear lens.

Glare diffusion without light loss
Without the protection of advanced optics, significant eye strain can result from periods of looking directly into a powerful LED point source. Advanced HELLA lens technology provides a safe, smooth and uniform light pattern, without glare or discomfort.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

EuroLED<sup>®</sup> White Lamp - Black Shroud

EuroLED® White Lamp - Black Shroud

95982050

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

4W

Protection

Reverse polarity and transient spike circuit protection.
IP 6K6 (Protection against dust and high pressure water jets)
IP 6K7 (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Accessories

95995200 Mounting spacer - Black
95995201 Mounting spacer - White

Compliance

CE CE

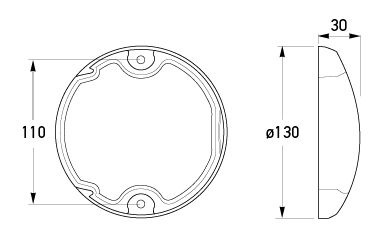

Outline

All dimensions in mm.
All dimensions in mm.

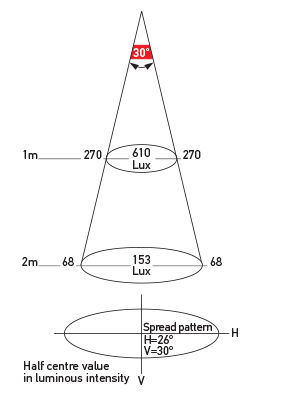

Light Output

Illumination chart
Illumination chart

Documents

Document File Name File Size
  95982050 - Instruction Sheet.pdf 648.03 KB
