HELLA

EuroLED® 150 Down Lights

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

No switching or dimming. Clear lens.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid<sup>®</sup> lamps are recommended where applicable.

Polycarbonate Lens

Polycarbonate features a high impact resistance when new; however the trade-off is the degradation over time when exposed to a number of commonly used chemicals and long term UV-exposure. The use of Grilamid® lamps are recommended where applicable.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

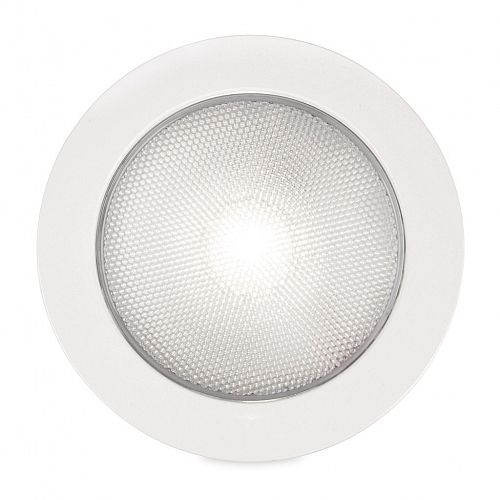

EuroLED<sup>®</sup> 150 Down Lights - White Light - White Plastic Rim

EuroLED® 150 Down Lights - White Light - White Plastic Rim

2JA 980 631-501

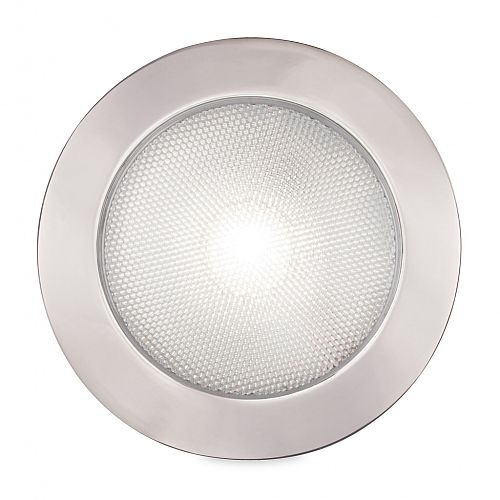

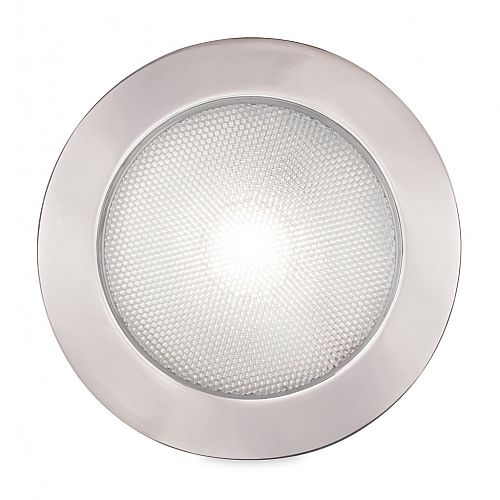

EuroLED<sup>®</sup> 150 Down Lights - White Light - Polished Stainless Steel Rim

EuroLED® 150 Down Lights - White Light - Polished Stainless Steel Rim

2JA 980 631-511

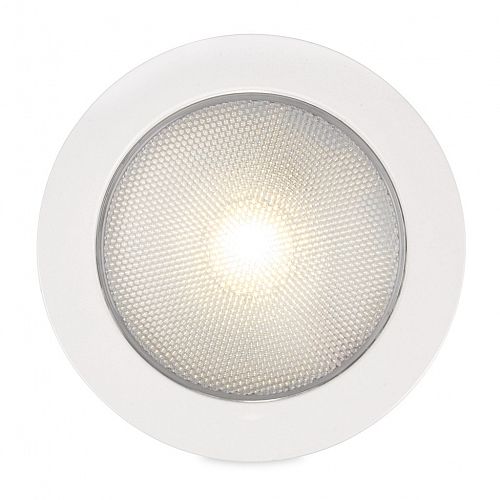

EuroLED<sup>®</sup> 150 Down Lights - Warm White Light - White Plastic Rim

EuroLED® 150 Down Lights - Warm White Light - White Plastic Rim

2JA 980 631-601

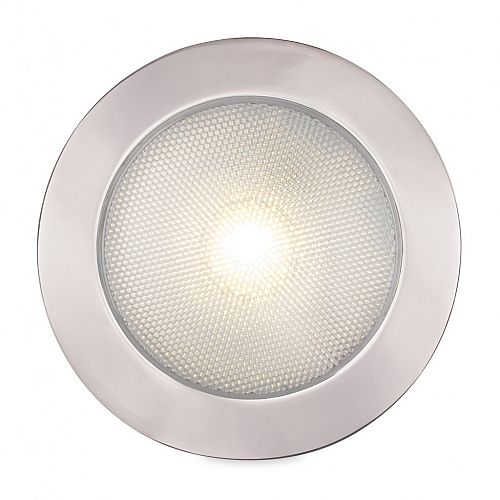

EuroLED<sup>®</sup> 150 Down Lights - Warm White Light - Polished Stainless Steel Rim

EuroLED® 150 Down Lights - Warm White Light - Polished Stainless Steel Rim

2JA 980 631-611

Specifications

Mounting

Recess mount, 124mm hole.

Voltage

Multivolt for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

4W

Protection

Reverse polarity and transient spike circuit protection
Sealed against dust and water ingress.

Cable Length

Pre-wired with 0.5m of sheathed multi-core cable

Compliance

CE CE

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2JA 980 631-5XX Instruction Sheet.pdf 1.19 MB
