HELLA

EuroLED® 75 Round Down Lights

Stylish, reliable and energy efficient, these lamps will provide excellent illumination to enhance interior and exterior spaces.

The EuroLED 75 uses a highly efficient optical system that produces a very wide and even illumination that is specifically designed to reduce individual light source glare, which can lead to discomfort and eye strain.

This precision optic, coupled with the latest LED technology delivers exceptional colour rendering, reproducing colours in their natural richness. The EuroLED 75 replicates the pleasing appearance of a traditional round lamp but contains all the advantages of a high efficacy, durable solid state light - giving you the best of both worlds.

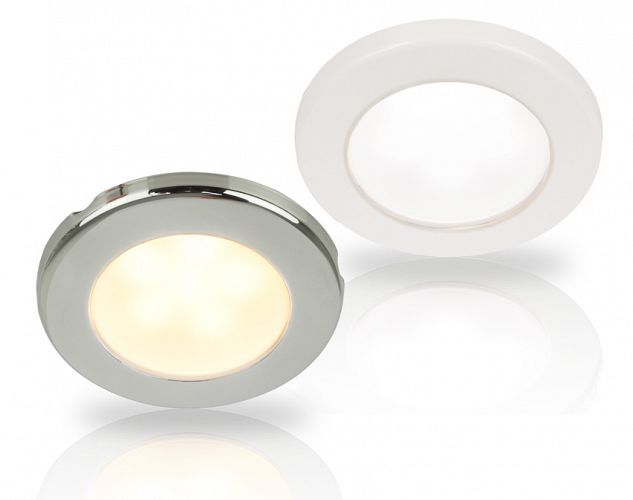

EuroLED 75 is available in warm or neutral white which will beautifully enhance the materials chosen for your vessel. Screw or spring mount options, pre-wired and sized for a standard cut out make new or refit installation a breeze.

Hella marine EuroLED lamps are completely sealed and manufactured using the highest grade materials that will not corrode, fade or embrittle in the harsh marine environment. Innovative, ceramic based thermally conductive materials dissipate heat generated by the LED’s, thereby extending the life of the luminaire, whilst being completely corrosion free. This means you can use the same light fittings for both the interior and exterior to create a clean and consistent lighting plan.

Like all Hella marine LED lamps the EuroLED 75 is supported by a 5 year warranty for complete peace of mind.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Suitable only for 12VDC applications.

12 Volt

Suitable only for 12VDC applications.

Suitable only for 24VDC applications.

24 Volt

Suitable only for 24VDC applications.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Dimmable Analogue DC Input

Light intensity is reduced as the DC input voltage is reduced below the lamps specified operating voltage.

Light intensity is adjusted between 10-100% using a high frequency PWM (pulse width modulation) DC power supply, with adjustable duty cycle control.

Dimmable PWM

Light intensity is adjusted between 10-100% using a high frequency PWM (pulse width modulation) DC power supply, with adjustable duty cycle control.

Made in New Zealand

Options

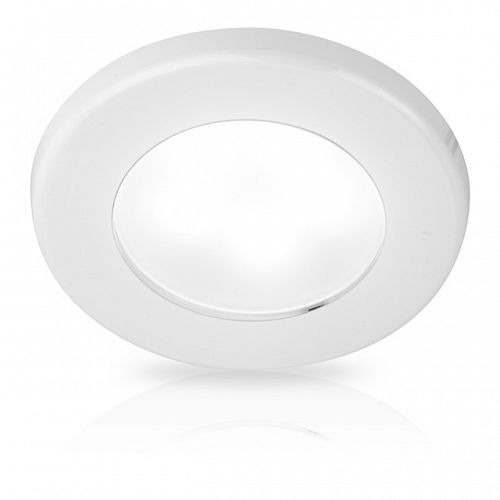

EuroLED® 75 Down Lights - Screw mount - White Light - White Plastic Rims - 12V DC

PART NO: 2JA 958 110-011

EuroLED® 75 Down Lights - Screw mount - White Light - White Plastic Rims - 24V DC

PART NO: 2JA 958 110-111

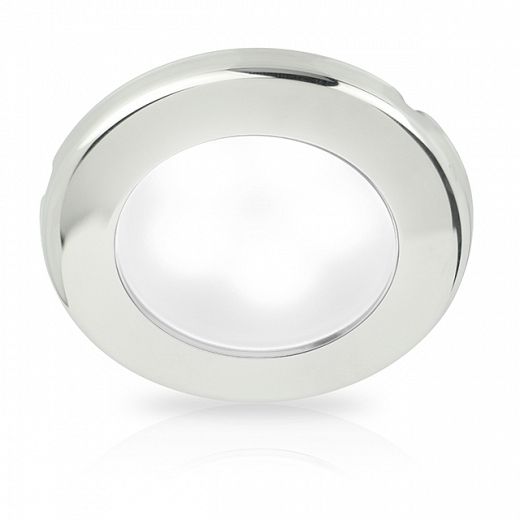

EuroLED® 75 Down Lights - Screw mount - White Light - Stainless Steel Rims - 12V DC

PART NO: 2JA 958 110-021

EuroLED® 75 Down Lights - Screw mount - White Light - Stainless Steel Rims - 24V DC

PART NO: 2JA 958 110-121

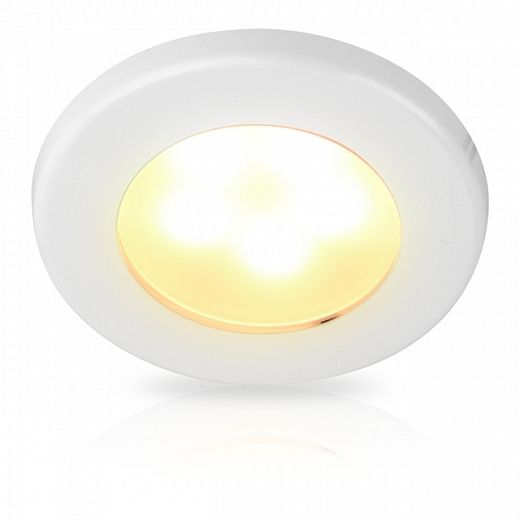

EuroLED® 75 Down Lights - Screw mount - Warm White Light - White Plastic Rims - 12V DC

PART NO: 2JA 958 109-011

EuroLED® 75 Down Lights - Screw mount - Warm White Light - White Plastic Rims - 24V DC

PART NO: 2JA 958 109-111

EuroLED® 75 Down Lights - Screw mount - Warm White Light - Stainless Steel Rims - 12V DC

PART NO: 2JA 958 109-021

EuroLED® 75 Down Lights - Screw mount - Warm White Light - Stainless Steel Rims - 24V DC

PART NO: 2JA 958 109-121

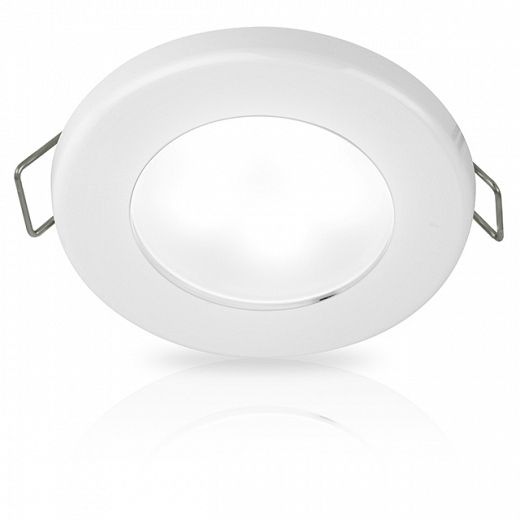

EuroLED® 75 Down Lights - Spring Clip mount - White Light - White Plastic Rims - 12V DC

PART NO: 2JA 958 110-511

EuroLED® 75 Down Lights - Spring Clip mount - White Light - White Plastic Rims - 24V DC

PART NO: 2JA 958 110-611

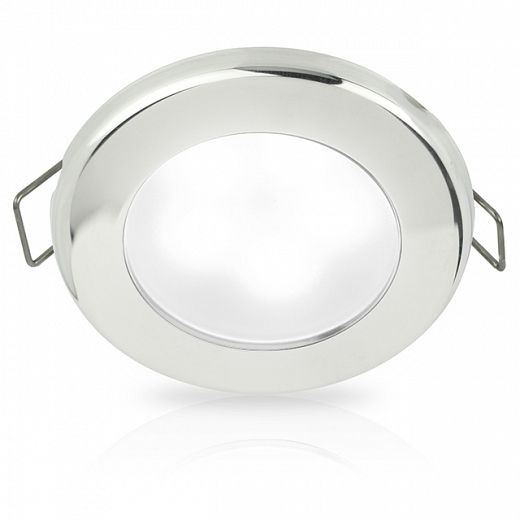

EuroLED® 75 Down Lights - Spring Cilp mount - White Light - Stainless Steel Rims - 12V DC

PART NO: 2JA 958 110-521

EuroLED® 75 Down Lights - Spring Cilp mount - White Light - Stainless Steel Rims - 24V DC

PART NO: 2JA 958 110-621

EuroLED® 75 Down Lights - Spring Clip mount - Warm White Light - White Plastic Rims - 12V DC

PART NO: 2JA 958 109-511

EuroLED® 75 Down Lights - Spring Clip mount - Warm White Light - White Plastic Rims - 24V DC

PART NO: 2JA 958 109-611

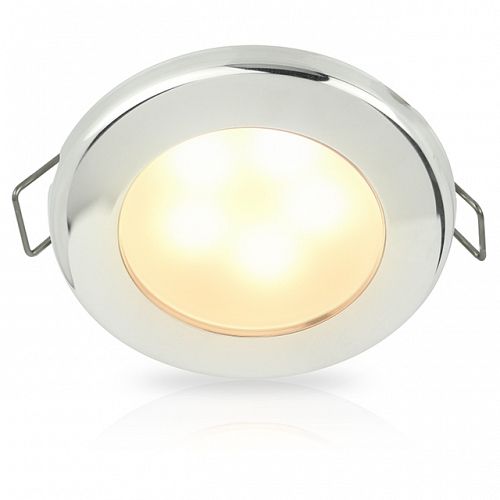

EuroLED® 75 Down Lights - Spring Clip mount - Warm White Light - Stainless Steel Rims - 12V DC

PART NO: 2JA 958 109-521

EuroLED® 75 Down Lights - Spring Clip mount - Warm White Light - Stainless Steel Rims - 24V DC

PART NO: 2JA 958 109-621

Specifications

Rim material

UV resistant plastic or 316 stainless steel options

Colour Temperature

5000K (White) , 2700K (Warm White)

Dimming

Via PWM or Voltage Resistive dimmer

Lumen

190 lumen actual output

Operating Voltage

12V or 24V DC options

Power Consumption

<3W ( <0.19A @ 12V DC / <0.1A @ 24V DC)

Protection

IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Installation

Screw or Spring Clip options

Approvals

CE, RCM

CE

Cable

Pre-wired with 120mm tinned marine cable

Manufactured in

New Zealand

Outline

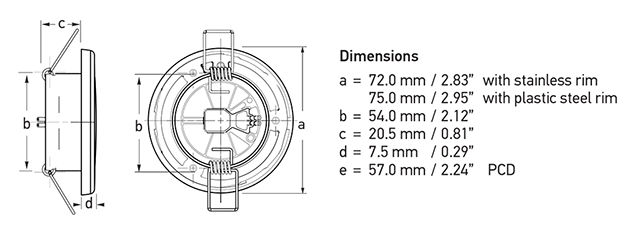

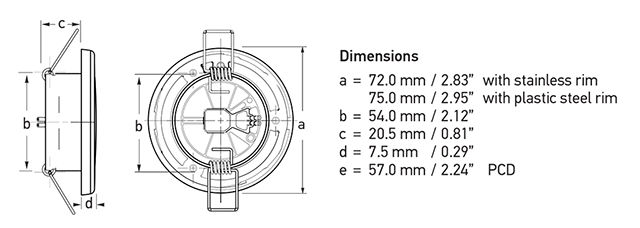

Spring clip mount lamp dimensions. All dimensions in mm.
Spring clip mount lamp dimensions. All dimensions in mm.
