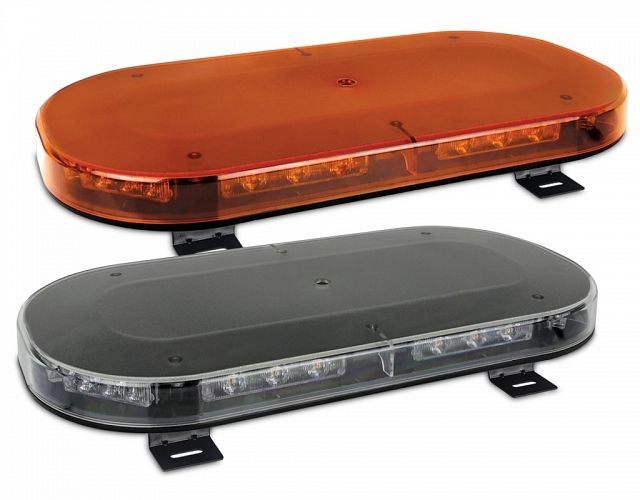

LED Micro Light Bar 200

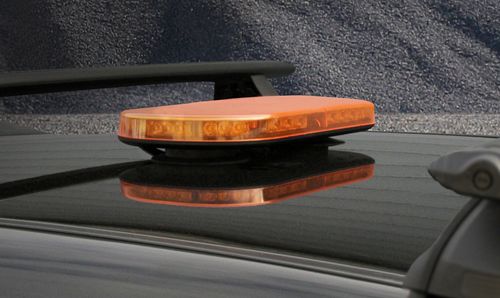

Optilux LED Mirco Light Bar - 200 (MLB200) clear/amber is a compact, versatile lamp suitable for numerous applications where a vehicle or incident needs to be highly visible. This LED lamp is characterised by its low profile design and high intensity Amber LEDs that offer a wide variety of flash patterns, across 360 degree viewing angle.

It is suitable for connection to both 12 and 24V DC systems while consuming only 25 watts.

• Multi-Voltage Input 12-24V DC
• 23 user selectable flash patterns
• Non-volatile memory recalls last flash pattern used at power up
• Amber light output flash in both Clear and Amber lenses

• Multiple units can be synchronised
• Reverse polarity protection
• Weatherproof and vibration resistant
• 3 year warranty

To find a HELLA reseller near you, click here

Rollover/tap the icons below for further details:

LED Technology

3 Year Warranty

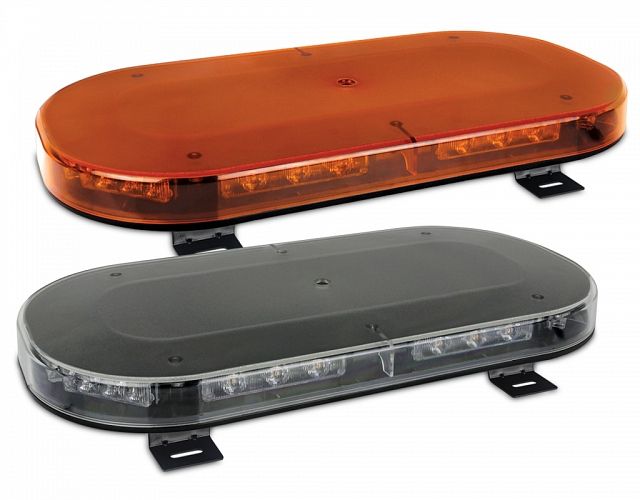

Options

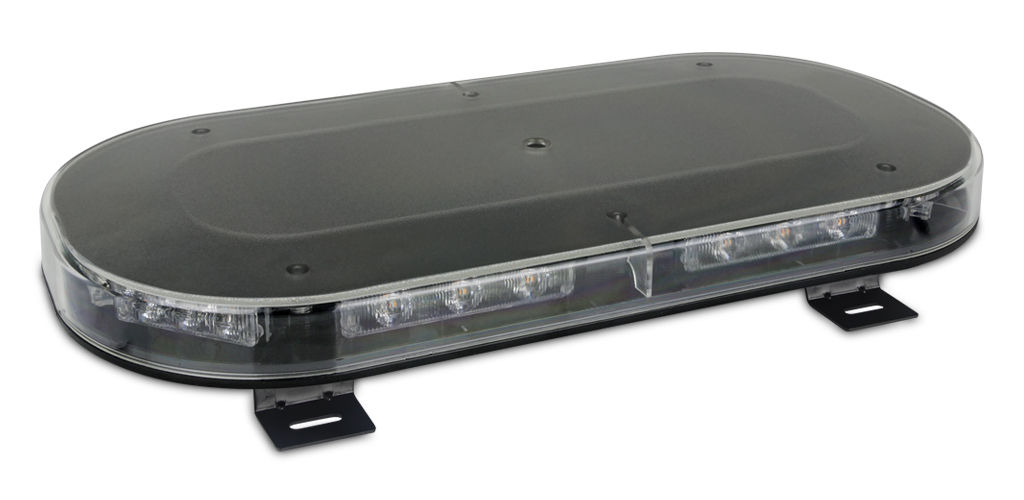

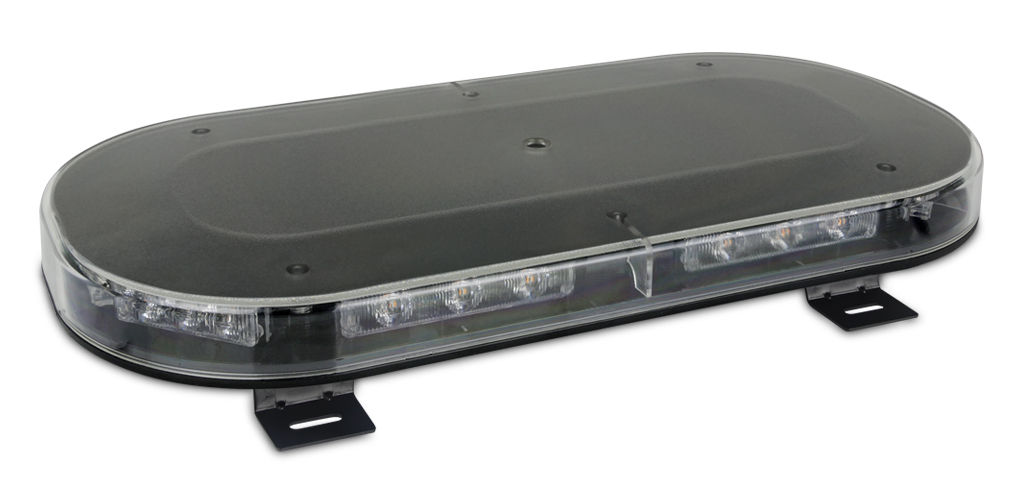

LED Micro Light Bar 200 - Clear Lens Fixed Mount

LED Micro Light Bar 200 - Clear Lens Fixed Mount

MLB200

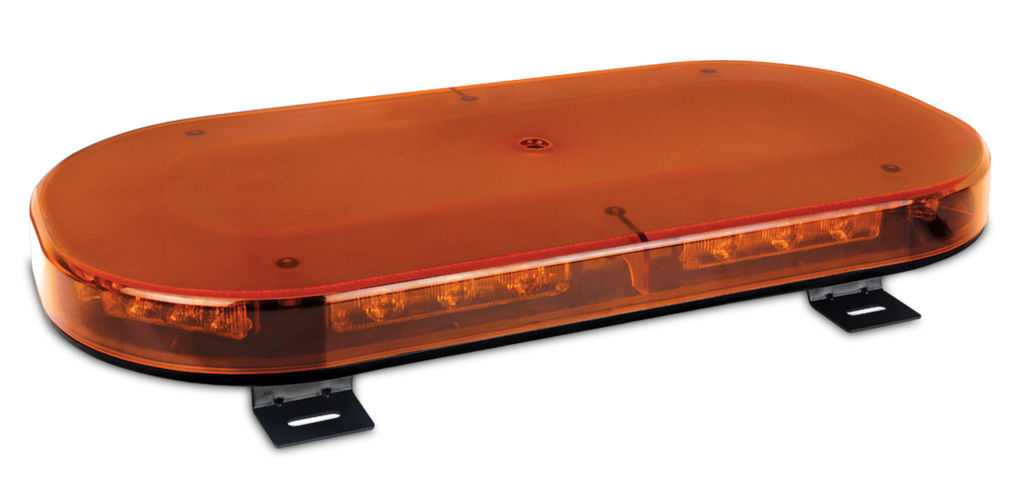

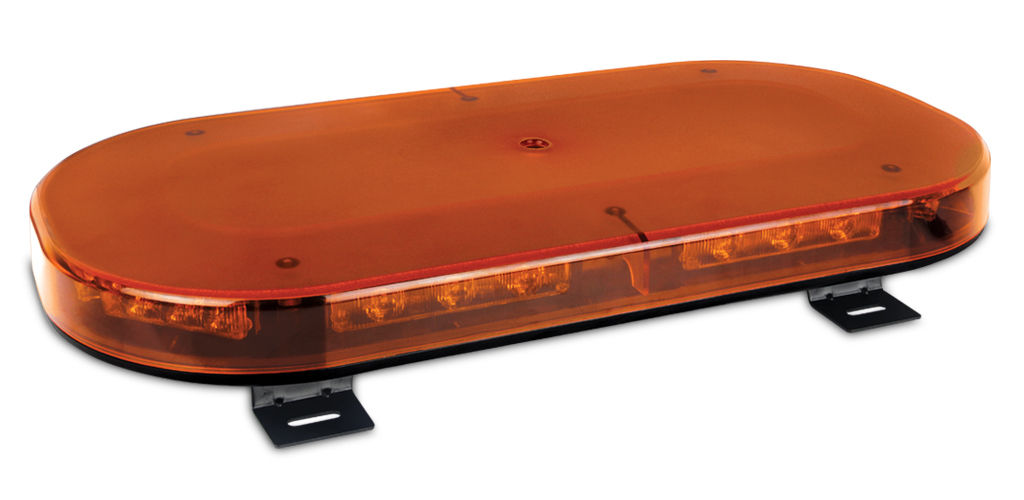

LED Micro Light Bar 200 - Amber Lens Fixed Mount

LED Micro Light Bar 200 - Amber Lens Fixed Mount

MLB200A

Specifications

Warning Patterns

23 flash patterns. Amber light output flash in both Clear and Amber lenses.

Voltage

Multi-voltage suitable for 12 or 24 volt systems.

Power Consumption

25W (Varies with flash pattern)

Max Current

2 A @ 12V DC / 1 A @ 24V DC

Protection

IP 65 (Protected against dust and water jets from all directions)

Cable Length

Fixed: 300mm of sheathed multi-core cable.

Multi-Unit Sync

Over 15 lamps.

Spare Part

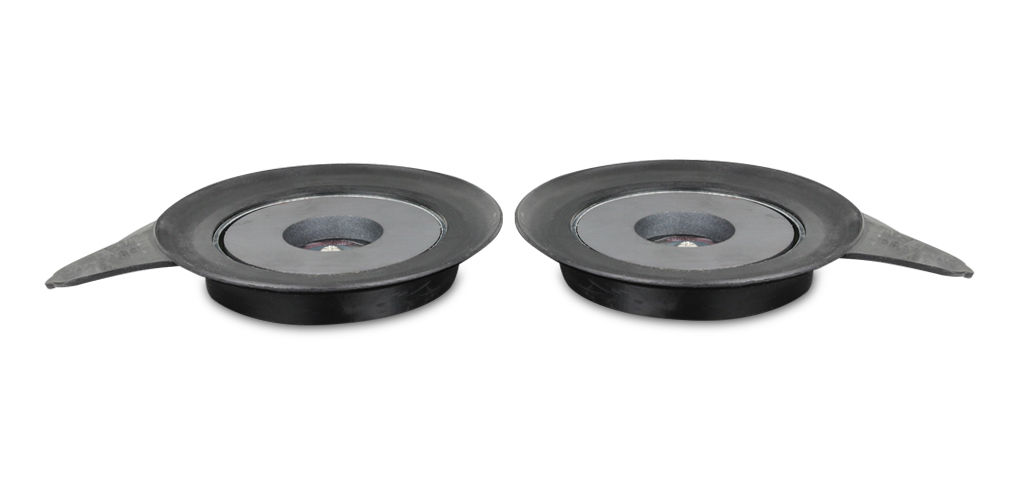

8034 - Magnet mount kit (2 Magnets)

Compliance

SAE Class 1 ECE R65 (Pattern21)

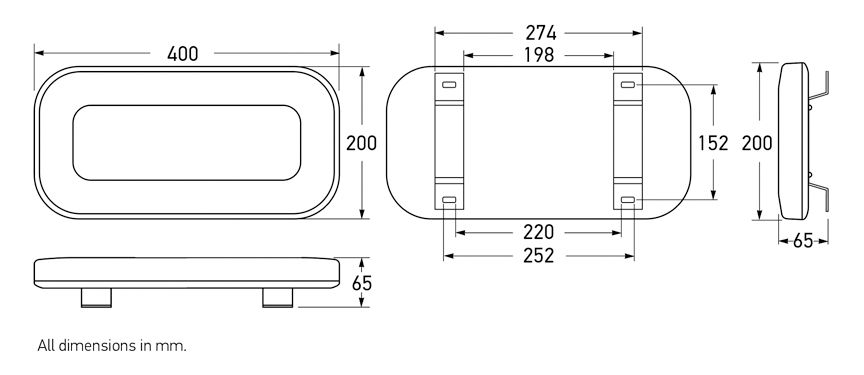

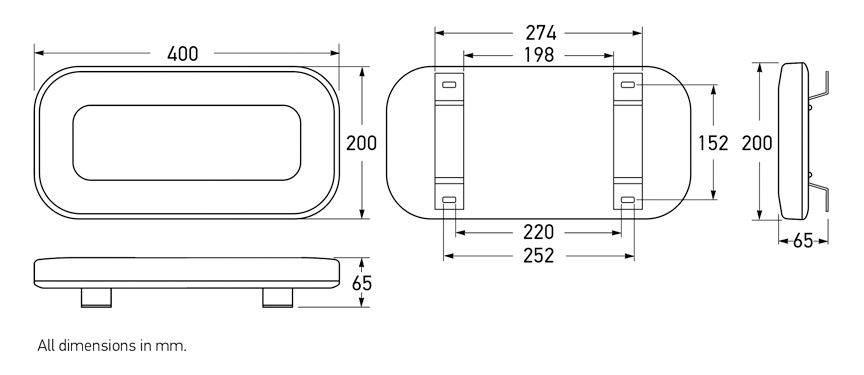

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

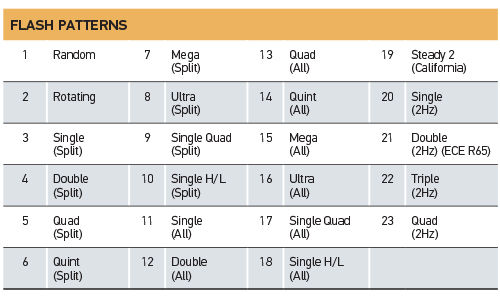

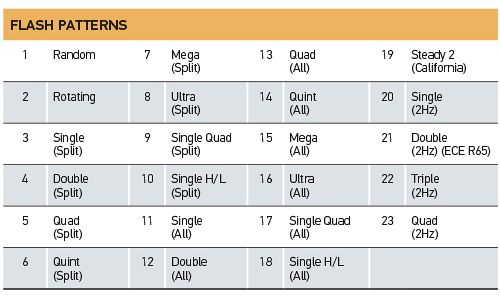

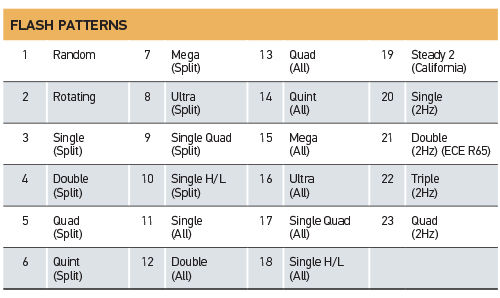

LED Micro Light Bar 200 - Flash Patterns (Amber light output flash in both Clear and Amber lenses.)
LED Micro Light Bar 200 - Flash Patterns (Amber light output flash in both Clear and Amber lenses.)
