HELLA

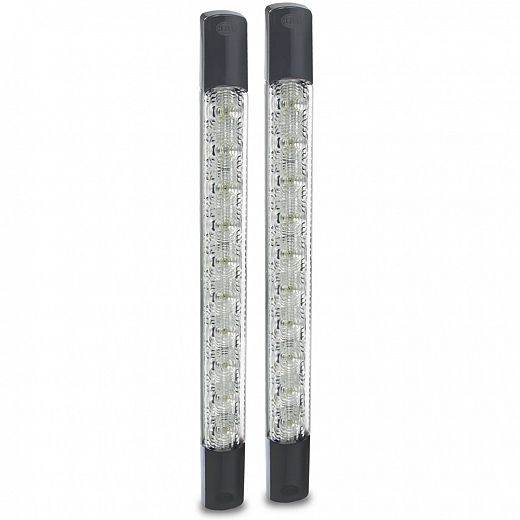

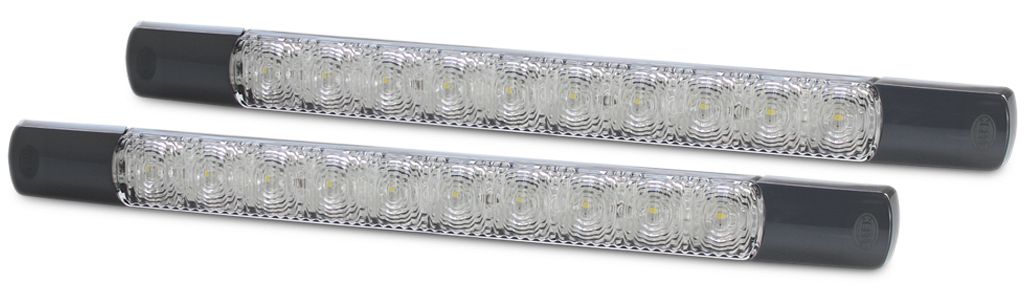

LED Safety DayLights™ - Surface Mount

Be safe. Be seen. With HELLA’s Safety DayLights™. The forward facing signal lamps enhance the visibility of your vehicle significantly to other road users during daylight hours and thereby reduce the risk of an ‘accidental oversight’ collision. Failure to see a vehicle approaching, especially at intersections, has been identified as one of the most significant factors in daytime accidents.

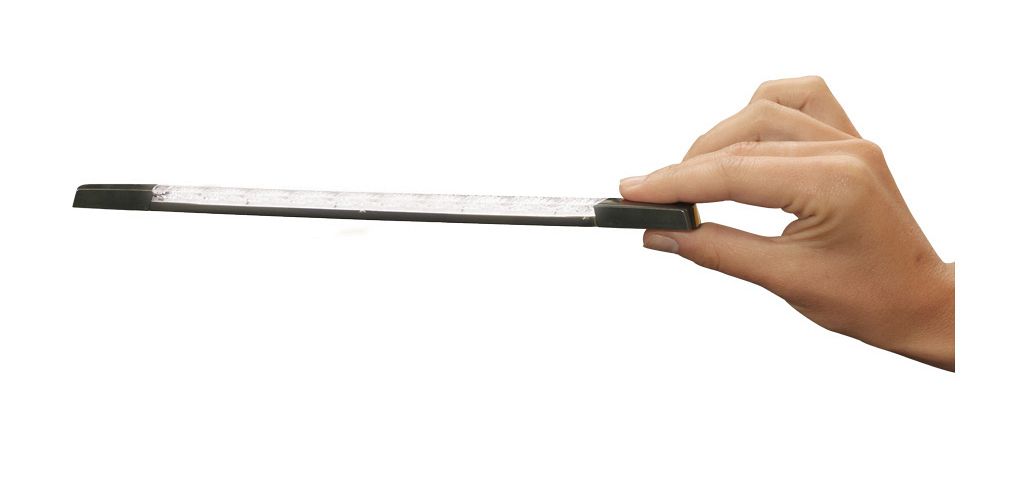

Perpendicular   Ultra slim surface mount lights designed to fit flat-fronted vehicles. Comes as single lamp or kit. Featuring ultra durable Grilamid® lens.


“Never forget” safety enhancement
Safety DayLights™ will automatically switch ON once ignition is activated and turn OFF when headlights or park lamps are turned on.

Maximal visibility – Minimal power consumption
With a super low power consumption of only 3 watt the LED lights use 95 % less energy than dipped beam headlamps, saving 0.2 litres of fuel per 100 km.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Approved for use in New Zealand and Australia

See HELLA’s Safety DayLights™ Smart Controllers.
Designed to simplify Installation

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

LED Safety DayLights™ Kit - Horizontal Mount - 12 Volt

LED Safety DayLights™ Kit - Horizontal Mount - 12 Volt

5619
LED Safety DayLights™ Kit - Horizontal Mount - 24 Volt

LED Safety DayLights™ Kit - Horizontal Mount - 24 Volt

5619-24V

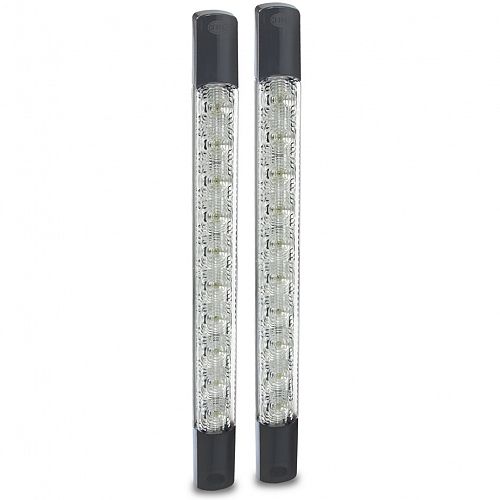

LED Safety DayLights™ Kit - Vertical Mount - 12 Volt

LED Safety DayLights™ Kit - Vertical Mount - 12 Volt

5619V
LED Safety DayLights™ Kit - Vertical Mount - 24 Volt

LED Safety DayLights™ Kit - Vertical Mount - 24 Volt

5619V-24V

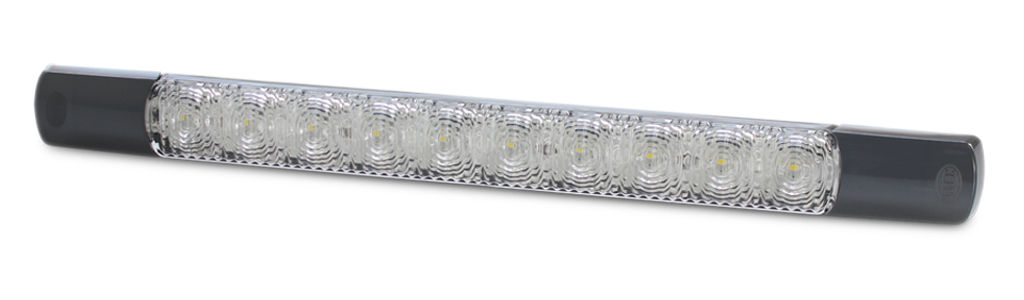

LED Safety DayLight™ - Horizontal Mount - Single Lamp 12 Volt

LED Safety DayLight™ - Horizontal Mount - Single Lamp 12 Volt

1009

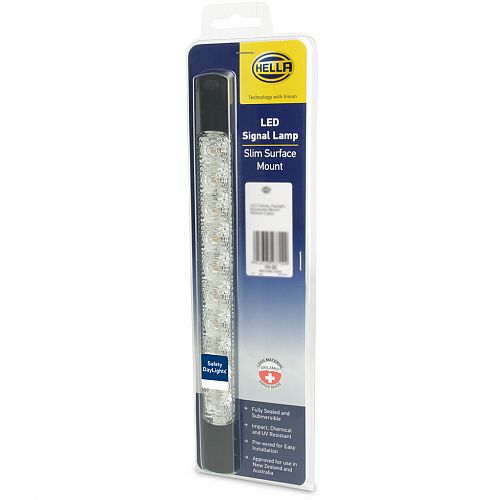

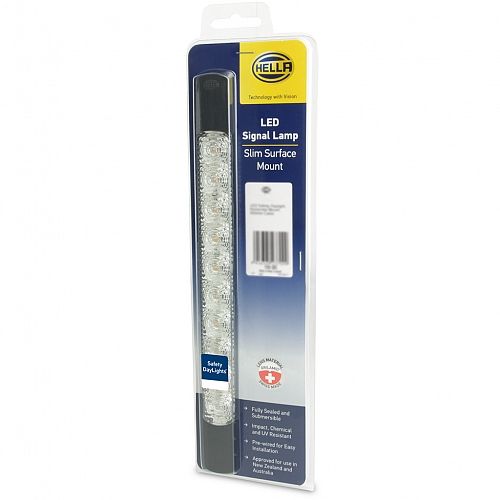

LED Safety DayLight™ - Horizontal Mount - Single Lamp 12 Volt - Blister Pack

LED Safety DayLight™ - Horizontal Mount - Single Lamp 12 Volt - Blister Pack

1009-BL
LED Safety DayLight™ - Horizontal Mount - Single Lamp 24 Volt

LED Safety DayLight™ - Horizontal Mount - Single Lamp 24 Volt

1009-24V
LED Safety DayLight™ - Horizontal Mount - Single Lamp 24 Volt - Blister Pack

LED Safety DayLight™ - Horizontal Mount - Single Lamp 24 Volt - Blister Pack

1009-24VBL

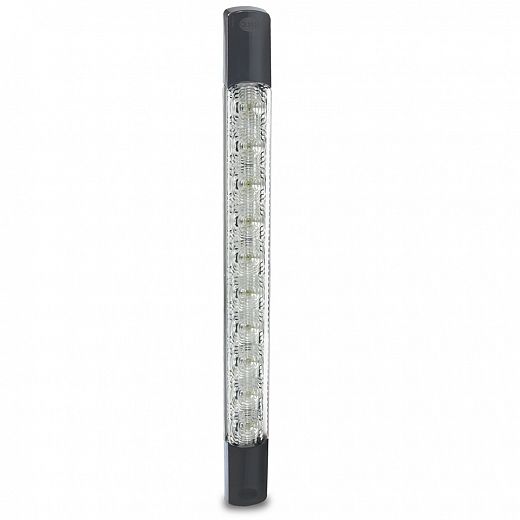

LED Safety DayLight™ - Vertical Mount - Single Lamp 12 Volt

LED Safety DayLight™ - Vertical Mount - Single Lamp 12 Volt

1009V
LED Safety DayLight™ - Vertical Mount - Single Lamp 24 Volt

LED Safety DayLight™ - Vertical Mount - Single Lamp 24 Volt

1009V-24V

Specifications

Power Consumption

3W

Protection

Reverse polarity protection.
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

 Box Pack Pre-wired with 2.5m of multi-core cable.
 Blister Pack Pre-wired with 0.5m of multi-core cable.

Spare Parts

1009 Single lamp 12V (Horizontal mount)
1009-24V Single lamp 24V (Horizontal mount)
1009V Single lamp 12V (Vertical mount)
1009V-24V Single lamp 24V (Vertical mount)
9.2652.09 White screw caps (Pack of 4)
9.1009.09 Charcoal screw caps (Pack of 4)
9.1009.10 Chrome plated screw caps (Pack of 4)

Lens Material

Grilamid®

Compliance

ADR 76/00 E24 5869 ECE R87/00

Kit Contents

2 x LED Safety DayLights™
4 x Mounting screws
4 x Screw caps
1 x Changeover relay
1 x Instruction sheet

Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  1009_1009-24V Instruction Sheet.pdf 397.81 KB
  1009V_1009V-24V Instruction Sheet.pdf 432.96 KB
  5619_5619-24V Instruction Sheet.pdf 400.87 KB
  5619V_5619V-24V Instruction Sheet.pdf 435.57 KB
