HELLA

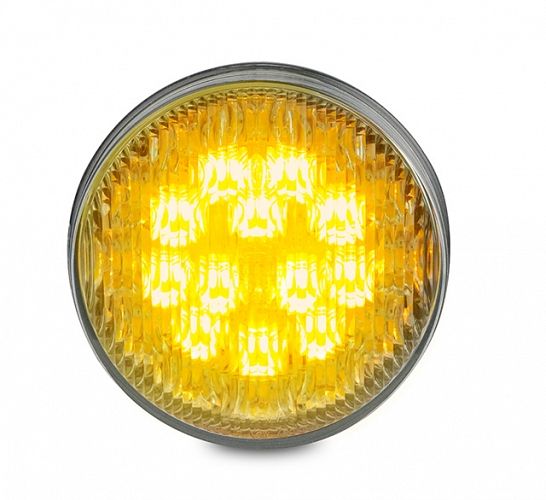

83mm Round LED Safety DayLight™/Front Position/Front Direction Indicator Lamp

This LED combination lamp features an integrated Safety DayLight™, front position and front direction indicator functions which eliminates the need for installation of multiple lamps.

The traditional round lens illuminates with a distinctive ring of white LEDs when used as a Safety DayLight™. When the front position lamp or front direction indicator are on the Safety DayLight™ will automatically turn off.

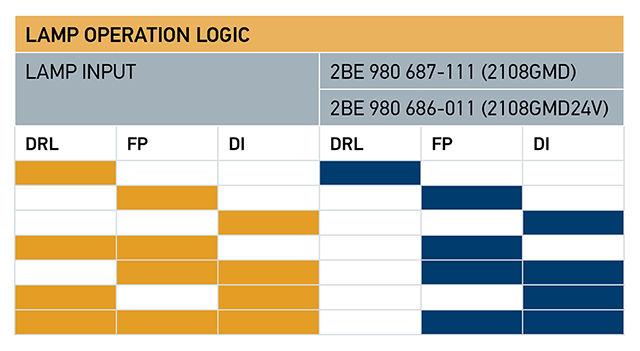

The lamp has internal operation logic that will suppress the Safety DayLight™ function during the indicator flasher cycle and whenever the front position function is operating.

Be safe. Be seen. With HELLA’s Safety DayLights™. The forward facing signal lamps enhance the visibility of your vehicle significantly to other road users during daylight hours and thereby reduce the risk of an ‘accidental oversight’ collision. Failure to see a vehicle approaching, especially at intersections, has been identified as one of the most significant factors in daytime accidents.

Perpendicular   Featuring ultra durable Grilamid® lens. Optic appears clear until illuminated.


All in one: This LED combination lamp eliminates the need for installation of multiple lamps featuring an integrated Safety DayLight™, front direction indicator and front position function. The traditional round lens illuminates with a distinctive ring of white LEDs when used as a Safety DayLight™.

“Never forget” safety enhancement
Safety DayLights automatically switch ON once ignition is activated and turn OFF when headlights or park lamps are turned on. The lamp has internal operation logic that will suppress the Safety DayLight™ function during the indicator flasher cycle and whenever the front position function is operating.

Maximal visibility – Minimal power consumption
Maximal visibility – Minimal power consumption
Super low power consumption of only 5 watt for the Safety DayLights™,1 watt for front position and 4 watt for front indicator.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Approved for use in New Zealand and Australia

See HELLA’s Safety DayLights™ Smart Controllers.
Designed to simplify Installation

RFCommSafe™ - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

83mm Round LED Safety DayLight™/Front Position/Front Direction Indicator Lamp - 12 Volt

PART NO: 2BE 980 687-111
Legacy PN: 2108GMD

Specifications

Mounting

Surface mount. Single bolt 1/4" stainless UNC thread
Nut and washer supplied

Power Consumption

Safety DayLight: 5W
Front position: 1W
Front indicator: 4W

Protection

Reverse polarity and transient spike circuit protection
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable

Lens Material

High impact and chemical resistant Grilamid® lens

Compliance

E24 5854 ECE R6/01 ECE R7/02 ECE R87/00 CE


Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2BE 980 68x-xxx_2108-GMD24V_Instruc_83mm_DRL_Indicatr_PO.pdf 846.37 KB
