HELLA

83mm Round LED Safety DayLight™

This Safety DayLight™ lamp features a traditional round lens that illuminates with a distinctive ring of white LEDs.

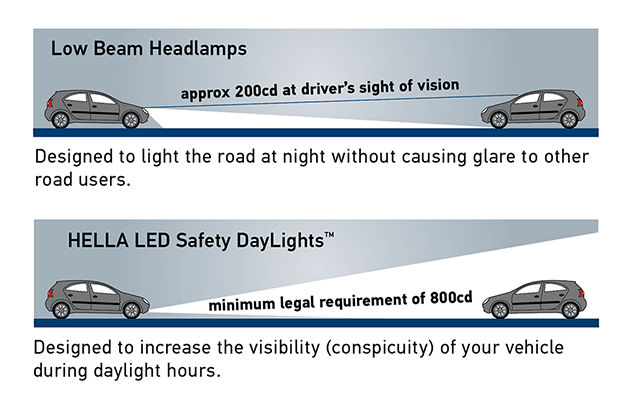

These forward facing signal lamps enhance the visibility of your vehicle significantly to other road users during daylight hours and thereby reduce the risk of an ‘accidental oversight’ collision.

Be safe. Be seen. With HELLA’s Safety DayLights™. The forward facing signal lamps enhance the visibility of your vehicle significantly to other road users during daylight hours and thereby reduce the risk of an ‘accidental oversight’ collision. Failure to see a vehicle approaching, especially at intersections, has been identified as one of the most significant factors in daytime accidents.

Perpendicular   Featuring an ultra durable Grilamid® lens. Optic appears clear until illuminated.


“Never forget” safety enhancement
Safety DayLights™ will automatically switch ON once ignition is activated and turn OFF when headlights or park lamps are turned on.

Maximal visibility – Minimal power consumption
Super low power consumption of only 5 watt.

Tough under pressure
Completely sealed, maintenance free. Designed to withstand high pressure washing and temporary submersion.

Reliable – durable – ultra long service life
Superior materials feature UV, corrosion, impact and shock resistance ensuring an ultra long service life.

Approved for use in New Zealand and Australia

See HELLA’s Safety DayLights™ Smart Controllers.
Designed to simplify Installation

RFCommSafeTM - To view and download more information please click here

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

RFCommSafe™

RFCommSafe™ products were developed in recognition that some radio communication equipment can be very sensitive in remote areas. RFCommSafe™ products are designed to ensure no interference with any other electronic equipment.

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

ADR (Australian Design Rules) Compliance

Product is compliant to all relevant Australian Design Rules to allow use on Australian and New Zealand roads.

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

ECE Certified

Product has been type approved to all relevant UN ECE Regulations to allow use on Australian and New Zealand roads.

Grilamid<sup>®</sup> is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Grilamid® Lens

Grilamid® is a high performance polyamide manufactured in Switzerland. The revolutionary transparent plastic offers an unbeatable combination of exceptionally high impact strength and resistance to long-term UV-exposure and chemical damage.

Made in New Zealand

Options

83mm Round LED Safety DayLight™ - 12 Volt

PART NO: 2PT 980 687-501
Legacy PN: 1006

Specifications

Mounting

Surface mount. Single bolt 1/4" stainless UNC thread
Nut and washer supplied

Power Consumption

5W

Protection

Reverse polarity and transient spike circuit protection
IP 6K7     (Protection against dust and temporary water immersion)
IP 6K9K   (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable

Lens Material

High impact and chemical resistant Grilamid® lens

Compliance

E24 5854 ECE R87/00 CE


Outline

All dimensions in mm.
All dimensions in mm.

Documents

Document File Name File Size
  2PT 980 68x-x01_Instruc_83mm_Round_Pebble_DRL_12V-24V.pdf 812.19 KB
