HELLA

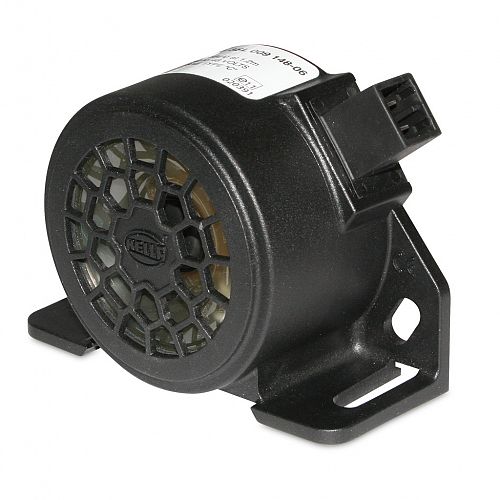

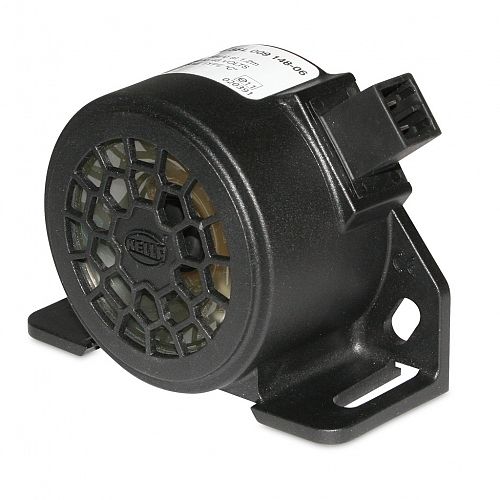

Reversing Alarm 82-102dB Automatic - Heavy Duty

Heavy duty reversing alarm with integral AMP connection. Automatically adjusts sound pressure level to changing noise environments.

Solid state electronics, self-adjusting to the minimum of 5dB above surrounding noise levels effectively reducing irritation. Epoxy encapsulated circuit boards offer protection against humidity, dirt and vibration.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Options

Reversing Alarm 82-102dB Automatic 12-24 Volts - Heavy Duty

PART NO: 3SL 009 148-101
Legacy PN: 6013

Specifications

Mounting

Integrated universal mounting bracket for upright, pendant or surface mounting.

Voltage

12-24V

Current draw

0.4A

Frequency

60 signals per minute (± 20%).

Sound Level

82 - 102 ± 4dB @ 1.2m

Temperature

Operating range -40ºC to 85ºC.

Protection

IP 66 (Protection against high pressure washing)

Spare part

9.6008.06 Plug and lead

Compliance

SAE J994

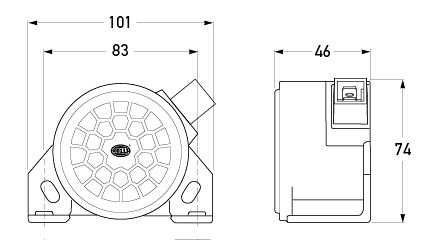

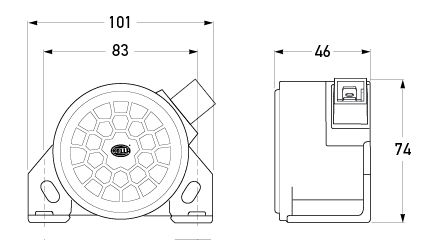

Outline

All dimensions in mm.
All dimensions in mm.
