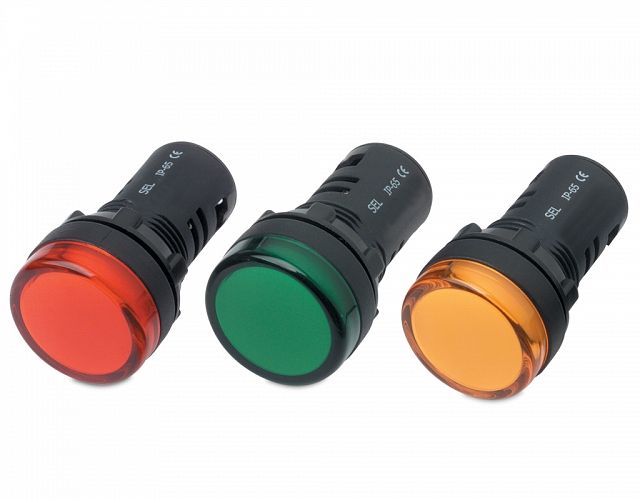

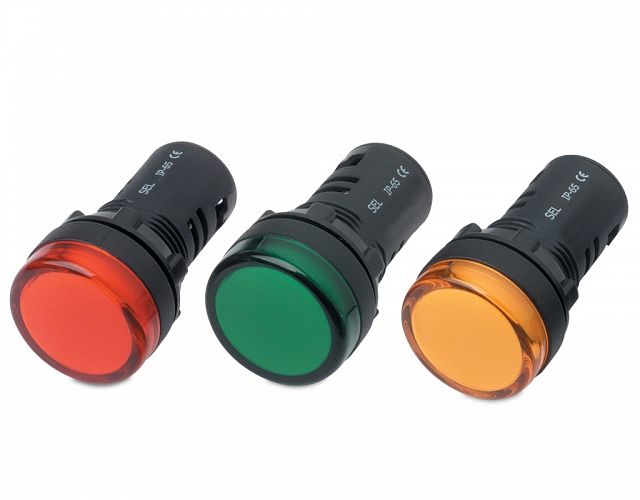

Pilot Lamp LED

Heavy duty multi-chip LED pilot lamp featuring shock-resistant one-piece construction for long service life and polycarbonate lens.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

LED Technology

Options

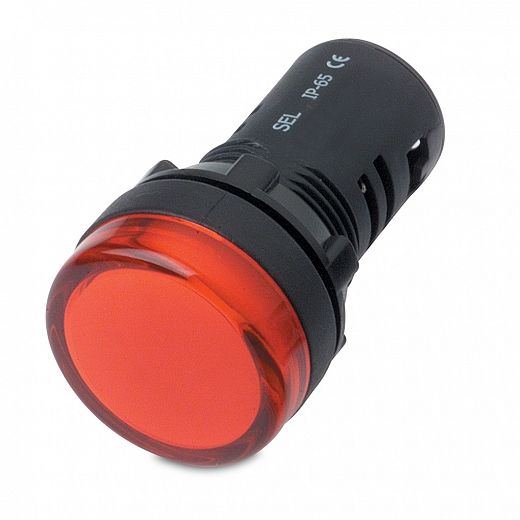

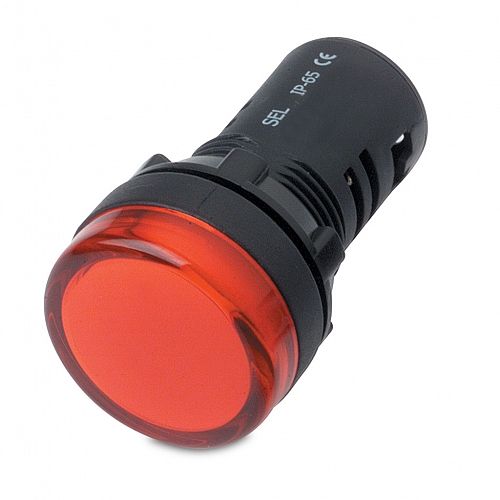

LED Pilot Lamp, Red - 12 Volt

PART NO: 2AA 910 233-042
Legacy PN: 2716

LED Pilot Lamp, Red - 24 Volt

PART NO: 2AA 910 233-102
Legacy PN: 271624V

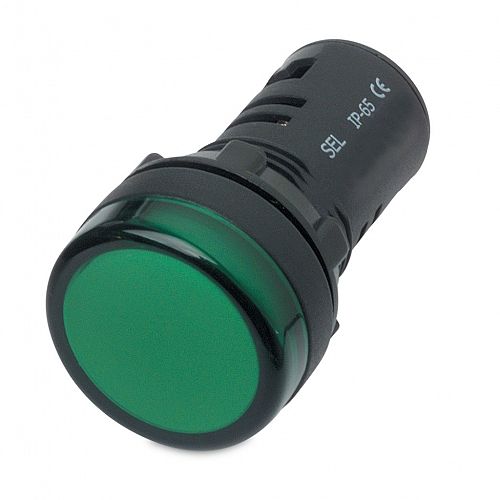

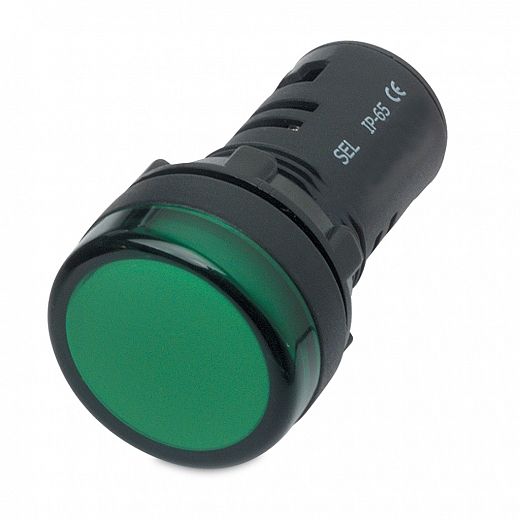

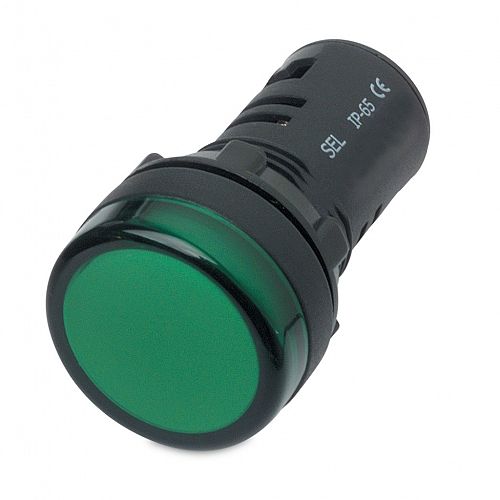

LED Pilot Lamp, Green - 12 Volt

PART NO: 2AA 910 233-032
Legacy PN: 2717

LED Pilot Lamp, Green - 24 Volt

PART NO: 2AA 910 233-092
Legacy PN: 271724V

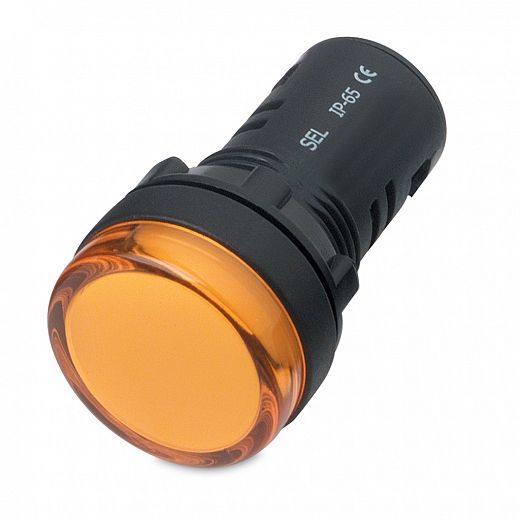

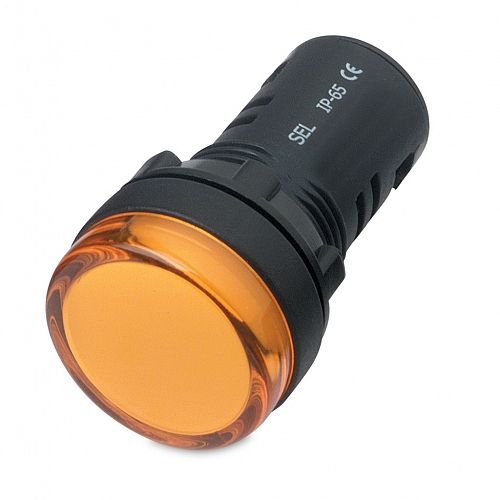

LED Pilot Lamp, Amber - 12 Volt

PART NO: 2AA 910 233-012
Legacy PN: 2718

LED Pilot Lamp, Amber - 24 Volt

PART NO: 2AA 910 233-062
Legacy PN: 271824V

LED Pilot Lamp, White - 12 Volt

PART NO: 2AA 910 233-052
Legacy PN: 2719

LED Pilot Lamp, White - 24 Volt

PART NO: 2AA 910 233-112
Legacy PN: 271924V

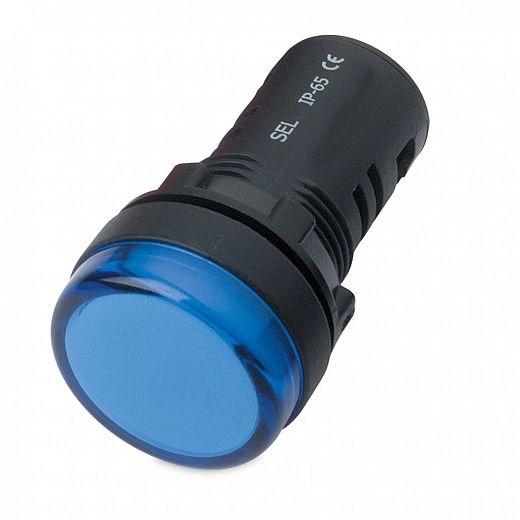

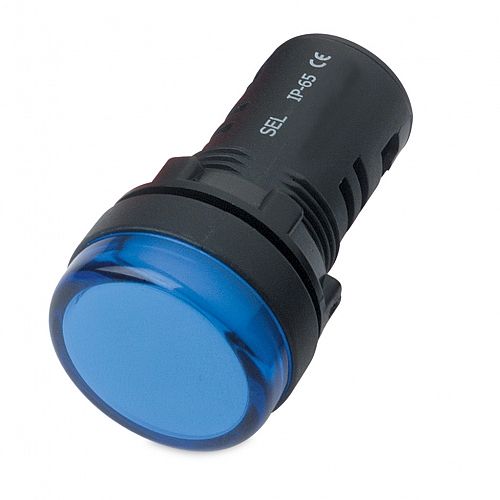

LED Pilot Lamp, Blue - 12 Volt

PART NO: 2AA 910 233-022
Legacy PN: 2720

LED Pilot Lamp, Blue - 24 Volt

PART NO: 2AA 910 233-072
Legacy PN: 272024V

Specifications

Mounting

22mm diameter opening.

For Panels

Up to 38mm thick.

Voltage

12V or 24V AC/DC

Protection

IP 65 (Protection against dust and water jets (when installed)

Function

Red Ignition, handbrake and hazard warning lamps
Green Indicator lamps
Blue Main beam and auxiliary headlamps
Amber Fog lamps

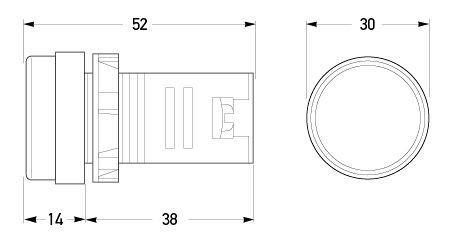

Outline

All dimensions in mm.
All dimensions in mm.
