HELLA

DT Connector - 8 Pole Plug and Socket

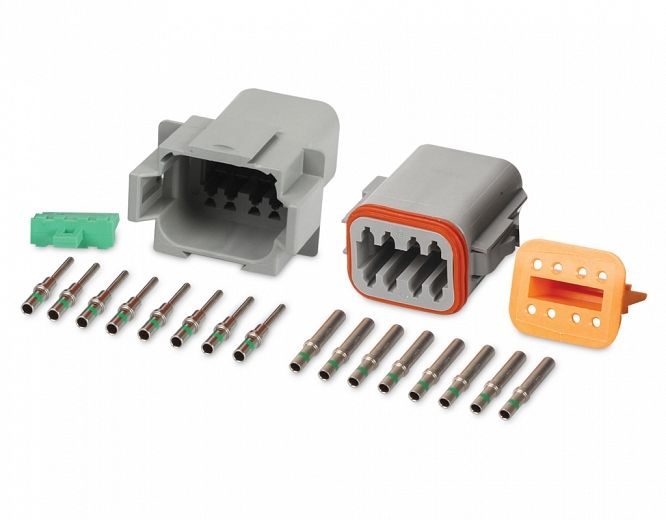

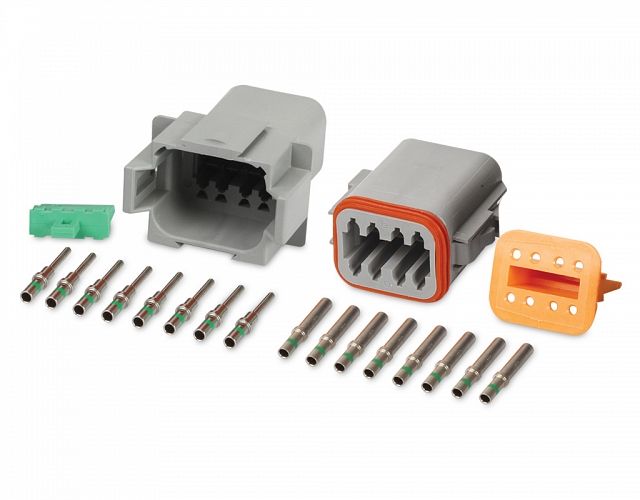

Environmentally sealed connectors rated at -55° to 125°C. Supplied with solid copper crimp contacts, locking wedges and large I.D. removable contacts, 1.9mm in diameter. Plug and socket kits come complete with terminals and seals. Supplied with 16 solid copper crimp contacts and 2 locking wedges.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Options

DT Connector - 8 Pole Plug and Socket

DT Connector - 8 Pole Plug and Socket

4964

Specifications

Maximum Load

13A - all contacts

Spare Parts

9.4960.01 Small I.D. female contact to suit plug
9.4960.02 Small I.D. male contact to suit socket
9.4960.03 Large I.D. female contact to suit plug
9.4960.04 Large I.D. male contact to suit socket
9.4960.05 Sealing plug

Note

Contacts are removable
Small I.D 1.6mm diameter
Large I.D 1.9mm diameter
