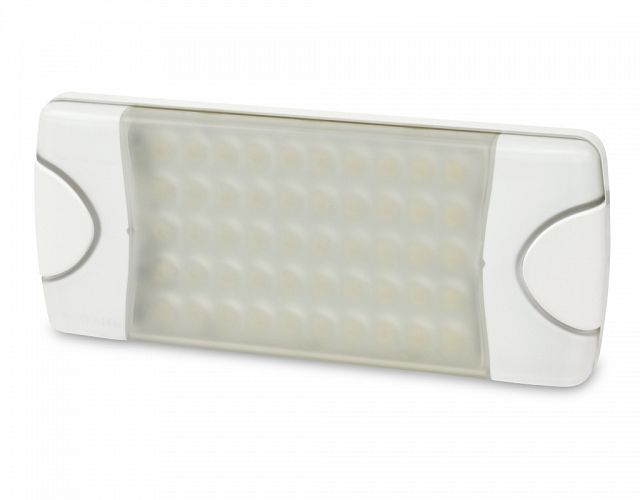

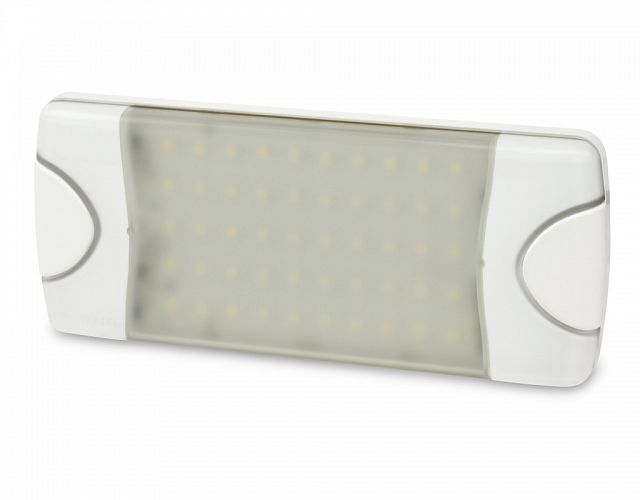

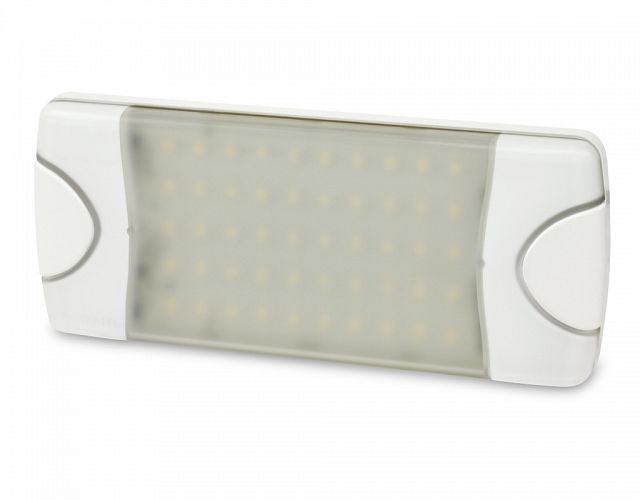

DuraLED® Combi-S White 50 LED Lamp

DuraLED® Combi-S white 50 LED lamps are an extremely powerful source of white light and offer a safe, energy efficient and reliable alternative to incandescent and fluorescent lighting with an easy to install, surface mount design.

These high tech, low profile lamps are available in two light patterns, Spread and Wide Spread, to suit a variety of uses including engine rooms, storage lockers or other heavy duty applications where reliability cannot be compromised. Each lamp is completely sealed, UV, impact and shock resistant ensuring an ultra-long service life.

Multivolt™ circuitry provides constant illumination and circuit protection from 9-33V DC, even under severe voltage fluctuations. DuraLED® Combi-S white 50 LED lamps also carry ISO Ignition Protection approval for safe and certified installation when lamps are located near flammable gas sources.

HELLA DuraLED® Combi-S white 50 LED lamps offer class leading energy efficiency, unmatched durability and are a total ‘fit and forget’ solution.

‘Fit & Forget’ by Design is a HELLA no compromise philosophy and commitment to design for long-term durability and safety.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Fit and Forget

Fit and Forget by Design means every aspect, material and component of this lamp has been carefully chosen to ensure longevity in the most demanding environmental conditions.

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

50 LED

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

UV Resistant

HELLA New Zealand LED lamps are designed to withstand harsh environmental conditions and will tolerate long term exposure to high UV levels without fading or embrittlement.

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

5 Year Warranty

This LED based lighting product carries a 5-year warranty covering faults in materials, components or workmanship. Please refer to HELLA’s full terms and conditions.

Made in New Zealand

Options

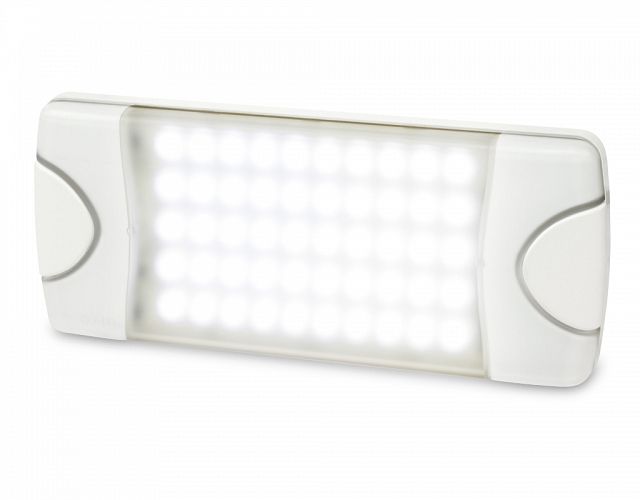

DuraLED® Combi-S White 50 LED Lamp - Spread - White Lens

PART NO: 2JA 980 629-001

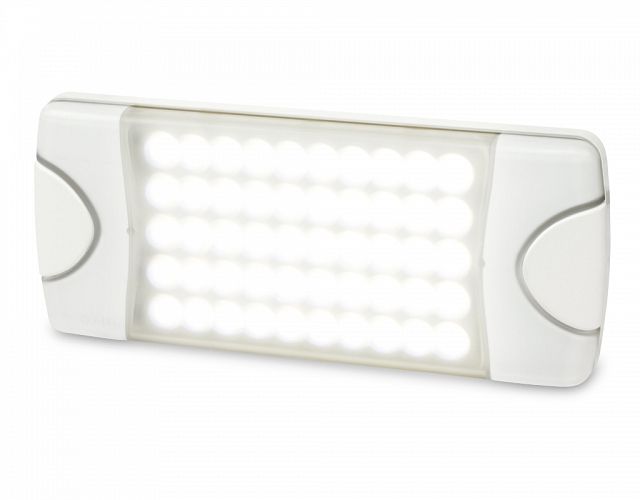

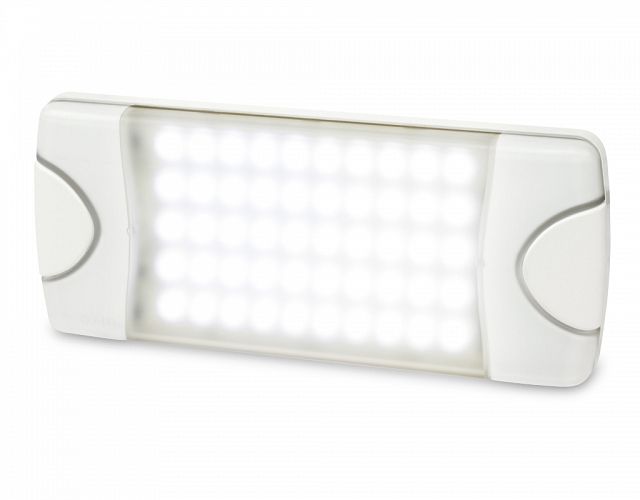

DuraLED® Combi-S White 50 LED Lamp - Wide Spread - White Lens

PART NO: 2JA 980 629-501

Specifications

Mounting

Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

<12W

Protection

Reverse polarity and transient spike circuit protection
IP 6K7 (Protection against dust and temporary water immersion)
IP 6K9K (Protection against dust and high-pressure/steam jet cleaning)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Compliance

CE

Outline

All dimensions in mm.
All dimensions in mm.

Light Output

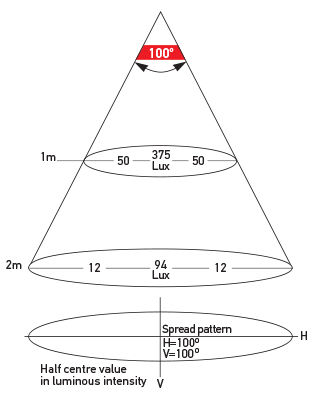

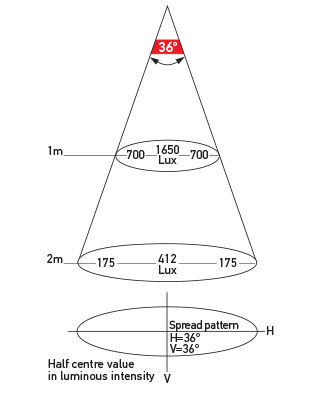

Illumination Chart: P/N 2JA 980 629-001 - Spread
Illumination Chart: P/N 2JA 980 629-001 - Spread

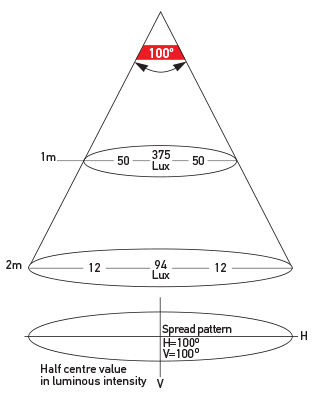

Illumination Chart: P/N 2JA 980 629-501 - Wide Spread
Illumination Chart: P/N 2JA 980 629-501 - Wide Spread
