HELLA

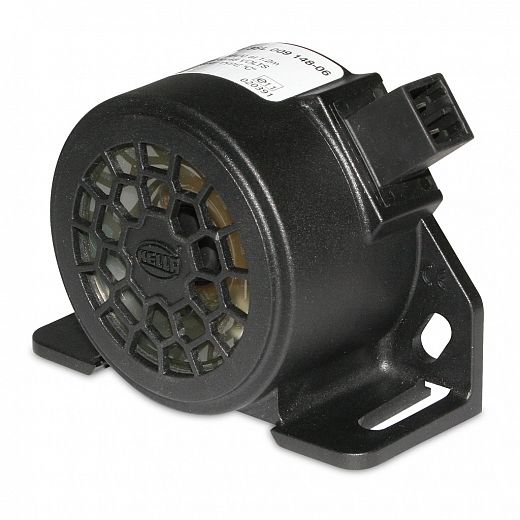

Reversing Alarm 90-107dB Heavy Duty

Heavy duty reversing alarm with integral AMP connection and fixed sound pressure levels between 90 and 107dB @ 1.2 metres. Epoxy encapsulated circuit boards offer protection against humidity, dirt and vibration.

To find a HELLA reseller near you, click here.

Rollover/tap the icons below for further details:

Multivolt™ for optimum performance in 12 and 24 volt systems.

Multivolt™

Multivolt™ for optimum performance in 12 and 24 volt systems.

Options

Reversing Alarm 90dB 12-24 Volts

Reversing Alarm 90dB 12-24 Volts

6008
Reversing Alarm 97dB 12-24 Volts

Reversing Alarm 97dB 12-24 Volts

6009
Reversing Alarm 107dB 12-24 Volts

Reversing Alarm 107dB 12-24 Volts

6010
Reversing Alarm 97dB 12-48 Volts

Reversing Alarm 97dB 12-48 Volts

6011

Specifications

Mounting

Integrated universal mounting bracket for upright, pendant or surface mounting.

Voltage

12-24V P/N 6008, 6009 & 6010
12-48V P/N 6011

Current draw

P/N 6011 0.1A
P/N 6008/6009 0.2A
P/N 6010 0.3A

Frequency

60 signals per minute (± 20%).

Sound Level

6008 90 ± 4dB @ 1.2m
6009 97 ± 4dB @ 1.2m
6010 107 ± 4dB @ 1.2m
6011 97 ± 4dB @ 1.2m

Temperature

Operating range -40ºC to 85ºC.

Protection

IP 66 (Protection against high pressure washing)

Spare part

9.6008.06 Plug and lead

Compliance

SAE J994

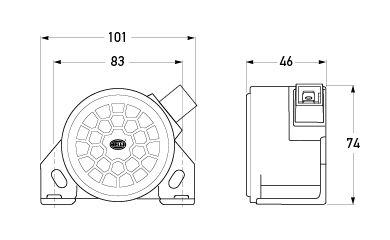

Outline

All dimensions in mm.
All dimensions in mm.
